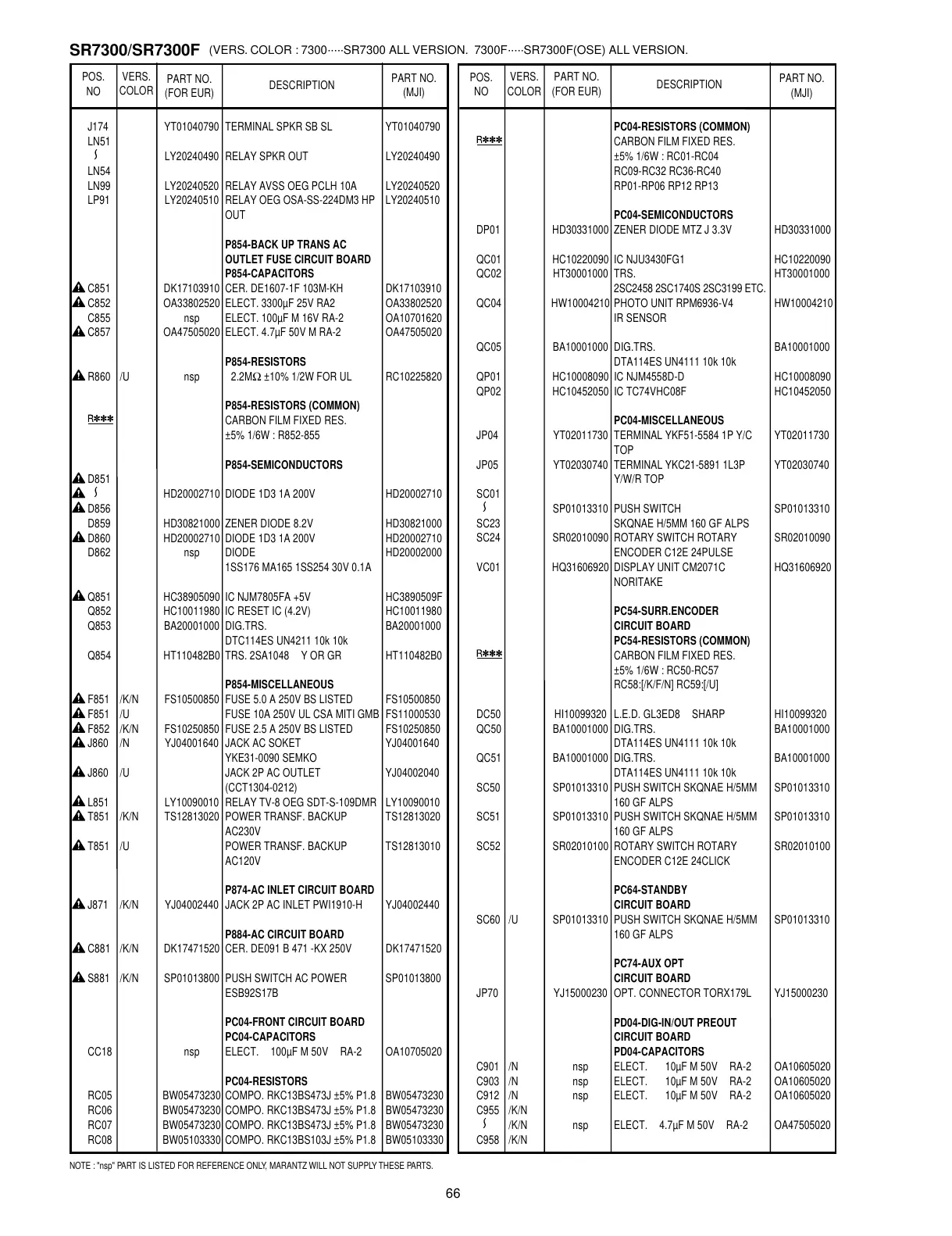

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
66
SR7300/SR7300F
(VERS. COLOR : 7300·····SR7300 ALL VERSION. 7300F·····SR7300F(OSE) ALL VERSION.
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
J174 YT01040790 TERMINAL SPKR SB SL YT01040790
LN51
LY20240490 RELAY SPKR OUT LY20240490
LN54
LN99 LY20240520 RELAY AVSS OEG PCLH 10A LY20240520
LP91 LY20240510 RELAY OEG OSA-SS-224DM3 HP
OUT
LY20240510
P854-BACK UP TRANS AC
OUTLET FUSE CIRCUIT BOARD
P854-CAPACITORS
C851 DK17103910 CER. DE1607-1F 103M-KH DK17103910
C852 OA33802520 ELECT. 3300µF 25V RA2 OA33802520
C855 nsp ELECT. 100µF M 16V RA-2 OA10701620
C857 OA47505020 ELECT. 4.7µF 50V M RA-2 OA47505020
P854-RESISTORS
R860 /U nsp 2.2M
Ω
±10% 1/2W FOR UL RC10225820
P854-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : R852-855
P854-SEMICONDUCTORS
D851
HD20002710 DIODE 1D3 1A 200V HD20002710
D856
D859 HD30821000 ZENER DIODE 8.2V HD30821000
D860 HD20002710 DIODE 1D3 1A 200V HD20002710
D862 nsp DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
Q851 HC38905090 IC NJM7805FA +5V HC3890509F
Q852 HC10011980 IC RESET IC (4.2V) HC10011980
Q853 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
Q854 HT110482B0 TRS. 2SA1048 Y OR GR HT110482B0
P854-MISCELLANEOUS
F851 /K/N FS10500850 FUSE 5.0 A 250V BS LISTED FS10500850
F851 /U FUSE 10A 250V UL CSA MITI GMB FS11000530
F852 /K/N FS10250850 FUSE 2.5 A 250V BS LISTED FS10250850
J860 /N YJ04001640 JACK AC SOKET
YKE31-0090 SEMKO
YJ04001640
J860 /U JACK 2P AC OUTLET
(CCT1304-0212)
YJ04002040
L851 LY10090010 RELAY TV-8 OEG SDT-S-109DMR LY10090010
T851 /K/N TS12813020 POWER TRANSF. BACKUP
AC230V
TS12813020
T851 /U POWER TRANSF. BACKUP
AC120V
TS12813010
P874-AC INLET CIRCUIT BOARD
J871 /K/N YJ04002440 JACK 2P AC INLET PWI1910-H YJ04002440
P884-AC CIRCUIT BOARD
C881 /K/N DK17471520 CER. DE091 B 471 -KX 250V DK17471520
S881 /K/N SP01013800 PUSH SWITCH AC POWER
ESB92S17B
SP01013800
PC04-FRONT CIRCUIT BOARD
PC04-CAPACITORS
CC18 nsp ELECT. 100µF M 50V RA-2 OA10705020
PC04-RESISTORS
RC05 BW05473230 COMPO. RKC13BS473J ±5% P1.8 BW05473230
RC06 BW05473230 COMPO. RKC13BS473J ±5% P1.8 BW05473230
RC07 BW05473230 COMPO. RKC13BS473J ±5% P1.8 BW05473230
RC08 BW05103330 COMPO. RKC13BS103J ±5% P1.8 BW05103330
PC04-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RC01-RC04
RC09-RC32 RC36-RC40
RP01-RP06 RP12 RP13
PC04-SEMICONDUCTORS
DP01 HD30331000 ZENER DIODE MTZ J 3.3V HD30331000
QC01 HC10220090 IC NJU3430FG1 HC10220090
QC02 HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QC04 HW10004210 PHOTO UNIT RPM6936-V4
IR SENSOR
HW10004210
QC05 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QP01 HC10008090 IC NJM4558D-D HC10008090
QP02 HC10452050 IC TC74VHC08F HC10452050
PC04-MISCELLANEOUS
JP04 YT02011730 TERMINAL YKF51-5584 1P Y/C
TOP
YT02011730
JP05 YT02030740 TERMINAL YKC21-5891 1L3P
Y/W/R TOP
YT02030740
SC01
SP01013310 PUSH SWITCH SP01013310
SC23 SKQNAE H/5MM 160 GF ALPS
SC24 SR02010090 ROTARY SWITCH ROTARY
ENCODER C12E 24PULSE
SR02010090
VC01 HQ31606920 DISPLAY UNIT CM2071C
NORITAKE
HQ31606920
PC54-SURR.ENCODER
CIRCUIT BOARD
PC54-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RC50-RC57
RC58:[/K/F/N] RC59:[/U]
DC50 HI10099320 L.E.D. GL3ED8 SHARP HI10099320
QC50 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QC51 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
SC50 SP01013310 PUSH SWITCH SKQNAE H/5MM
160 GF ALPS
SP01013310
SC51 SP01013310 PUSH SWITCH SKQNAE H/5MM
160 GF ALPS
SP01013310
SC52 SR02010100 ROTARY SWITCH ROTARY
ENCODER C12E 24CLICK
SR02010100
PC64-STANDBY
CIRCUIT BOARD
SC60 /U SP01013310 PUSH SWITCH SKQNAE H/5MM
160 GF ALPS
SP01013310
PC74-AUX OPT
CIRCUIT BOARD
JP70 YJ15000230 OPT. CONNECTOR TORX179L YJ15000230
PD04-DIG-IN/OUT PREOUT
CIRCUIT BOARD
PD04-CAPACITORS
C901 /N nsp ELECT. 10µF M 50V RA-2 OA10605020
C903 /N nsp ELECT. 10µF M 50V RA-2 OA10605020
C912 /N nsp ELECT. 10µF M 50V RA-2 OA10605020
C955 /K/N
/K/N nsp ELECT. 4.7µF M 50V RA-2 OA47505020
C958 /K/N
