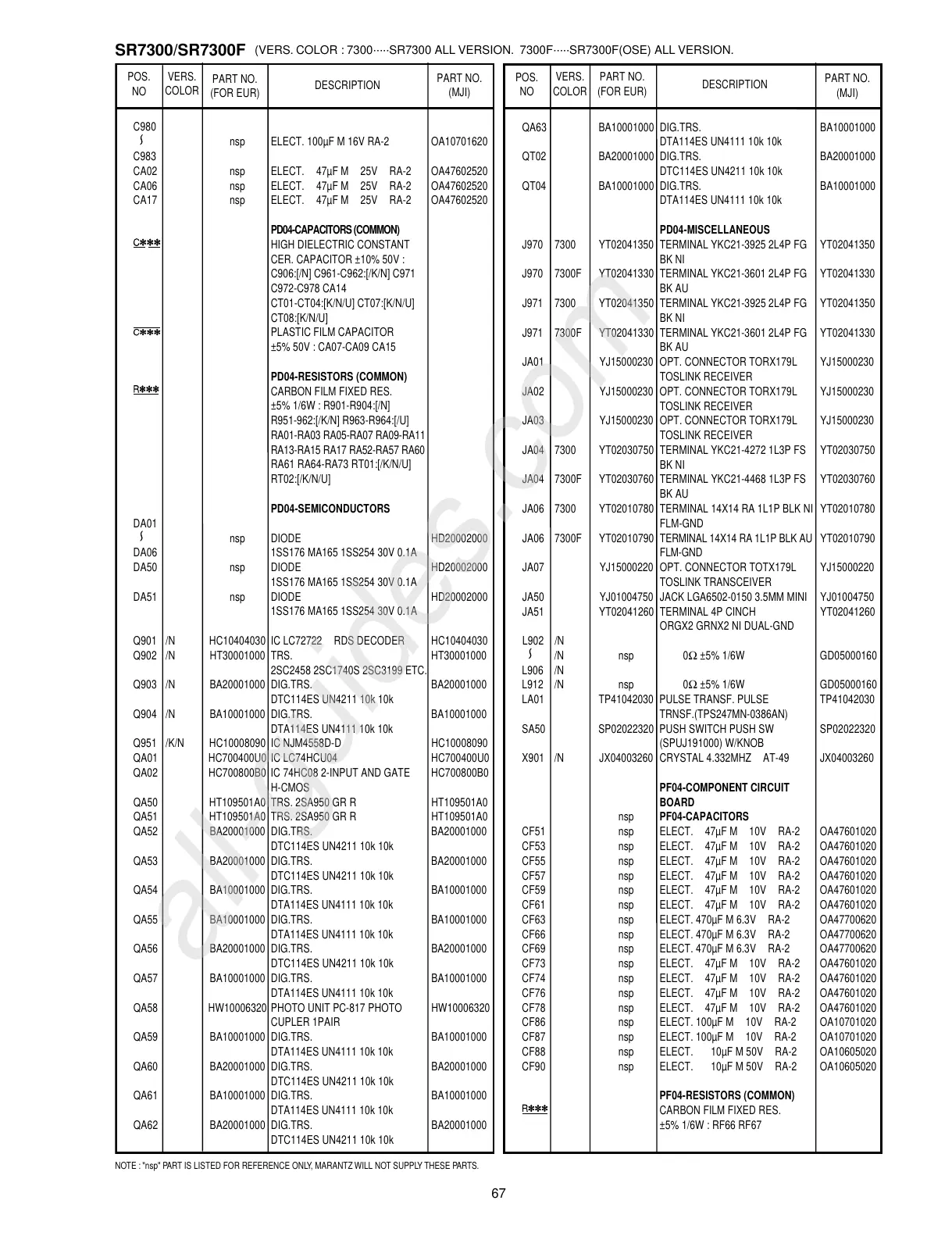

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
67
SR7300/SR7300F
(VERS. COLOR : 7300·····SR7300 ALL VERSION. 7300F·····SR7300F(OSE) ALL VERSION.
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
C980
nsp ELECT. 100µF M 16V RA-2 OA10701620
C983
CA02 nsp ELECT. 47µF M 25V RA-2 OA47602520
CA06 nsp ELECT. 47µF M 25V RA-2 OA47602520
CA17 nsp ELECT. 47µF M 25V RA-2 OA47602520
PD04-CAPACITORS (COMMON)
HIGH DIELECTRIC CONSTANT
CER. CAPACITOR ±10% 50V :
C906:[/N] C961-C962:[/K/N] C971
C972-C978 CA14
CT01-CT04:[K/N/U] CT07:[K/N/U]
CT08:[K/N/U]
PLASTIC FILM CAPACITOR
±5% 50V : CA07-CA09 CA15
PD04-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : R901-R904:[/N]
R951-962:[/K/N] R963-R964:[/U]
RA01-RA03 RA05-RA07 RA09-RA11
RA13-RA15 RA17 RA52-RA57 RA60
RA61 RA64-RA73 RT01:[/K/N/U]
RT02:[/K/N/U]
PD04-SEMICONDUCTORS
DA01
nsp DIODE HD20002000
DA06 1SS176 MA165 1SS254 30V 0.1A
DA50 nsp DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DA51 nsp DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
Q901 /N HC10404030 IC LC72722 RDS DECODER HC10404030
Q902 /N HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
Q903 /N BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
Q904 /N BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
Q951 /K/N HC10008090 IC NJM4558D-D HC10008090
QA01 HC700400U0 IC LC74HCU04 HC700400U0
QA02 HC700800B0 IC 74HC08 2-INPUT AND GATE
H-CMOS
HC700800B0
QA50 HT109501A0 TRS. 2SA950 GR R HT109501A0
QA51 HT109501A0 TRS. 2SA950 GR R HT109501A0
QA52 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA53 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA54 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA55 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA56 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA57 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA58 HW10006320 PHOTO UNIT PC-817 PHOTO
CUPLER 1PAIR
HW10006320
QA59 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA60 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA61 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA62 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA63 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QT02 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QT04 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
PD04-MISCELLANEOUS
J970 7300 YT02041350 TERMINAL YKC21-3925 2L4P FG
BK NI
YT02041350
J970 7300F YT02041330 TERMINAL YKC21-3601 2L4P FG
BK AU
YT02041330
J971 7300 YT02041350 TERMINAL YKC21-3925 2L4P FG
BK NI
YT02041350
J971 7300F YT02041330 TERMINAL YKC21-3601 2L4P FG
BK AU
YT02041330
JA01 YJ15000230 OPT. CONNECTOR TORX179L
TOSLINK RECEIVER
YJ15000230
JA02 YJ15000230 OPT. CONNECTOR TORX179L
TOSLINK RECEIVER
YJ15000230
JA03 YJ15000230 OPT. CONNECTOR TORX179L
TOSLINK RECEIVER
YJ15000230
JA04 7300 YT02030750 TERMINAL YKC21-4272 1L3P FS
BK NI
YT02030750
JA04 7300F YT02030760 TERMINAL YKC21-4468 1L3P FS
BK AU
YT02030760
JA06 7300 YT02010780 TERMINAL 14X14 RA 1L1P BLK NI
FLM-GND
YT02010780
JA06 7300F YT02010790 TERMINAL 14X14 RA 1L1P BLK AU
FLM-GND
YT02010790
JA07 YJ15000220 OPT. CONNECTOR TOTX179L
TOSLINK TRANSCEIVER
YJ15000220
JA50 YJ01004750 JACK LGA6502-0150 3.5MM MINI YJ01004750
JA51 YT02041260 TERMINAL 4P CINCH
ORGX2 GRNX2 NI DUAL-GND
YT02041260
L902 /N
/N nsp 0 Ω ±5% 1/6W GD05000160
L906 /N
L912 /N nsp 0
Ω ±5% 1/6W GD05000160
LA01 TP41042030 PULSE TRANSF. PULSE
TRNSF.(TPS247MN-0386AN)
TP41042030
SA50 SP02022320 PUSH SWITCH PUSH SW
(SPUJ191000) W/KNOB
SP02022320
X901 /N JX04003260 CRYSTAL 4.332MHZ AT-49 JX04003260
PF04-COMPONENT CIRCUIT
BOARD
nsp PF04-CAPACITORS
CF51 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF53 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF55 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF57 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF59 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF61 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF63 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CF66 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CF69 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CF73 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF74 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF76 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF78 nsp ELECT. 47µF M 10V RA-2 OA47601020
CF86 nsp ELECT. 100µF M 10V RA-2 OA10701020
CF87 nsp ELECT. 100µF M 10V RA-2 OA10701020
CF88 nsp ELECT. 10µF M 50V RA-2 OA10605020
CF90 nsp ELECT. 10µF M 50V RA-2 OA10605020
PF04-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RF66 RF67
