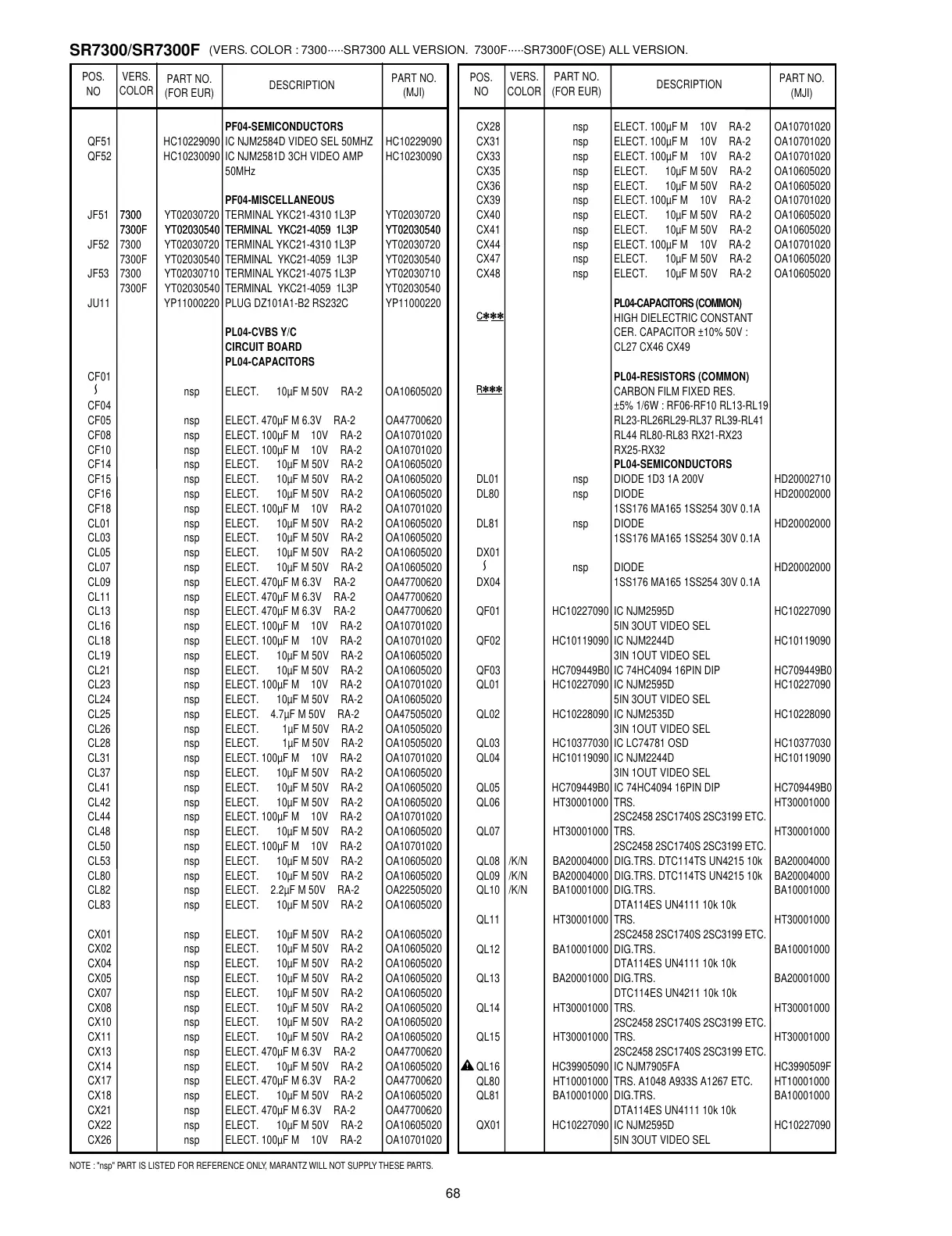

Marantz SR7300 - Page 52

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
68
SR7300/SR7300F
(VERS. COLOR : 7300·····SR7300 ALL VERSION. 7300F·····SR7300F(OSE) ALL VERSION.
7300
7300F
TERMINAL YKC21-4059 1L3P
YT02030540 YT02030540
7300
7300F
TERMINAL YKC21-4059 1L3P
YT02030540 YT02030540
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
PF04-SEMICONDUCTORS
QF51 HC10229090 IC NJM2584D VIDEO SEL 50MHZ HC10229090
QF52 HC10230090 IC NJM2581D 3CH VIDEO AMP
50MHz
HC10230090
PF04-MISCELLANEOUS
JF51 7300
7300F
TERMINAL YKC21-4059 1L3P
YT02030540 YT02030540
7300
7300F
YT02030720 TERMINAL YKC21-4310 1L3P
TERMINAL YKC21-4059 1L3P
YT02030540 YT02030540
YT02030720
JF52 YT02030720 TERMINAL YKC21-4310 1L3P YT02030720
JF53 YT02030710 TERMINAL YKC21-4075 1L3P YT02030710
JU11 YP11000220 PLUG DZ101A1-B2 RS232C YP11000220
PL04-CVBS Y/C
CIRCUIT BOARD
PL04-CAPACITORS
CF01
nsp ELECT. 10µF M 50V RA-2 OA10605020
CF04
CF05 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CF08 nsp ELECT. 100µF M 10V RA-2 OA10701020
CF10 nsp ELECT. 100µF M 10V RA-2 OA10701020
CF14 nsp ELECT. 10µF M 50V RA-2 OA10605020
CF15 nsp ELECT. 10µF M 50V RA-2 OA10605020
CF16 nsp ELECT. 10µF M 50V RA-2 OA10605020
CF18 nsp ELECT. 100µF M 10V RA-2 OA10701020
CL01 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL03 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL05 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL07 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL09 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CL11 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CL13 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CL16 nsp ELECT. 100µF M 10V RA-2 OA10701020
CL18 nsp ELECT. 100µF M 10V RA-2 OA10701020
CL19 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL21 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL23 nsp ELECT. 100µF M 10V RA-2 OA10701020
CL24 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL25 nsp ELECT. 4.7µF M 50V RA-2 OA47505020
CL26 nsp ELECT. 1µF M 50V RA-2 OA10505020
CL28 nsp ELECT. 1µF M 50V RA-2 OA10505020
CL31 nsp ELECT. 100µF M 10V RA-2 OA10701020
CL37 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL41 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL42 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL44 nsp ELECT. 100µF M 10V RA-2 OA10701020
CL48 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL50 nsp ELECT. 100µF M 10V RA-2 OA10701020
CL53 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL80 nsp ELECT. 10µF M 50V RA-2 OA10605020
CL82 nsp ELECT. 2.2µF M 50V RA-2 OA22505020
CL83 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX01 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX02 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX04 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX05 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX07 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX08 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX10 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX11 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX13 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CX14 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX17 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CX18 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX21 nsp ELECT. 470µF M 6.3V RA-2 OA47700620
CX22 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX26 nsp ELECT. 100µF M 10V RA-2 OA10701020
CX28 nsp ELECT. 100µF M 10V RA-2 OA10701020
CX31 nsp ELECT. 100µF M 10V RA-2 OA10701020
CX33 nsp ELECT. 100µF M 10V RA-2 OA10701020
CX35 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX36 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX39 nsp ELECT. 100µF M 10V RA-2 OA10701020
CX40 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX41 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX44 nsp ELECT. 100µF M 10V RA-2 OA10701020
CX47 nsp ELECT. 10µF M 50V RA-2 OA10605020
CX48 nsp ELECT. 10µF M 50V RA-2 OA10605020
PL04-CAPACITORS (COMMON)
HIGH DIELECTRIC CONSTANT
CER. CAPACITOR ±10% 50V :
CL27 CX46 CX49
PL04-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RF06-RF10 RL13-RL19
RL23-RL26RL29-RL37 RL39-RL41
RL44 RL80-RL83 RX21-RX23
RX25-RX32
PL04-SEMICONDUCTORS
DL01 nsp DIODE 1D3 1A 200V HD20002710
DL80 nsp DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DL81 nsp DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DX01
nsp DIODE HD20002000
DX04 1SS176 MA165 1SS254 30V 0.1A
QF01 HC10227090 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
QF02 HC10119090 IC NJM2244D
3IN 1OUT VIDEO SEL
HC10119090
QF03 HC709449B0 IC 74HC4094 16PIN DIP HC709449B0
QL01 HC10227090 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
QL02 HC10228090 IC NJM2535D
3IN 1OUT VIDEO SEL
HC10228090
QL03 HC10377030 IC LC74781 OSD HC10377030
QL04 HC10119090 IC NJM2244D
3IN 1OUT VIDEO SEL
HC10119090
QL05 HC709449B0 IC 74HC4094 16PIN DIP HC709449B0
QL06 HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL07 HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL08 /K/N BA20004000 DIG.TRS. DTC114TS UN4215 10k BA20004000
QL09 /K/N BA20004000 DIG.TRS. DTC114TS UN4215 10k BA20004000
QL10 /K/N BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QL11 HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL12 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QL13 BA20001000 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QL14 HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL15 HT30001000 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QL16 HC39905090 IC NJM7905FA HC3990509F
QL80 HT10001000 TRS. A1048 A933S A1267 ETC. HT10001000
QL81 BA10001000 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QX01 HC10227090 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
