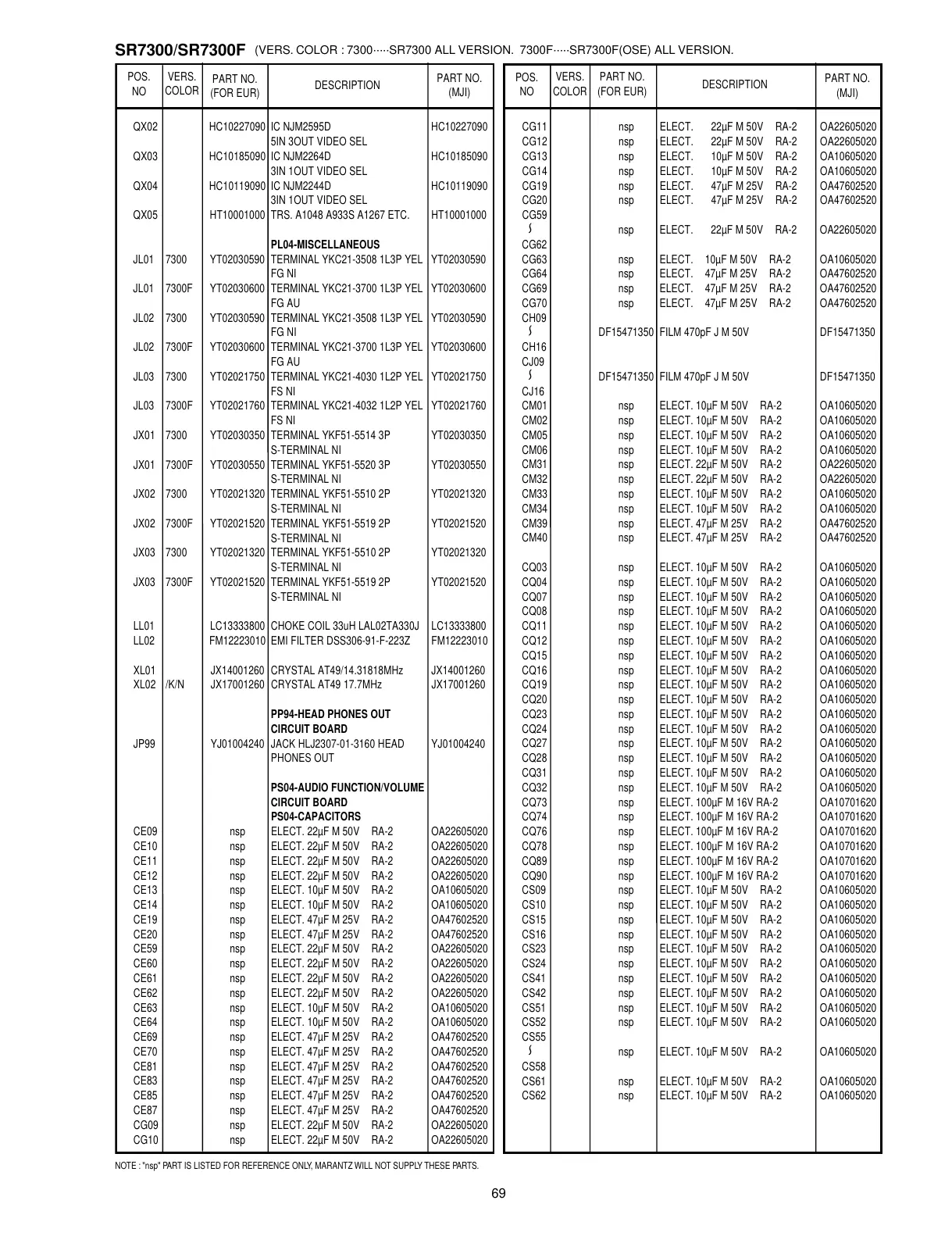

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
69
SR7300/SR7300F
(VERS. COLOR : 7300·····SR7300 ALL VERSION. 7300F·····SR7300F(OSE) ALL VERSION.
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
QX02 HC10227090 IC NJM2595D
5IN 3OUT VIDEO SEL
HC10227090
QX03 HC10185090 IC NJM2264D
3IN 1OUT VIDEO SEL
HC10185090
QX04 HC10119090 IC NJM2244D
3IN 1OUT VIDEO SEL
HC10119090
QX05 HT10001000 TRS. A1048 A933S A1267 ETC. HT10001000
PL04-MISCELLANEOUS
JL01 7300 YT02030590 TERMINAL YKC21-3508 1L3P YEL
FG NI
YT02030590
JL01 7300F YT02030600 TERMINAL YKC21-3700 1L3P YEL
FG AU
YT02030600
JL02 7300 YT02030590 TERMINAL YKC21-3508 1L3P YEL
FG NI
YT02030590
JL02 7300F YT02030600 TERMINAL YKC21-3700 1L3P YEL
FG AU
YT02030600
JL03 7300 YT02021750 TERMINAL YKC21-4030 1L2P YEL
FS NI
YT02021750
JL03 7300F YT02021760 TERMINAL YKC21-4032 1L2P YEL
FS NI
YT02021760
JX01 7300 YT02030350 TERMINAL YKF51-5514 3P
S-TERMINAL NI
YT02030350
JX01 7300F YT02030550 TERMINAL YKF51-5520 3P
S-TERMINAL NI
YT02030550
JX02 7300 YT02021320 TERMINAL YKF51-5510 2P
S-TERMINAL NI
YT02021320
JX02 7300F YT02021520 TERMINAL YKF51-5519 2P
S-TERMINAL NI
YT02021520
JX03 7300 YT02021320 TERMINAL YKF51-5510 2P
S-TERMINAL NI
YT02021320
JX03 7300F YT02021520 TERMINAL YKF51-5519 2P
S-TERMINAL NI
YT02021520
LL01 LC13333800 CHOKE COIL 33uH LAL02TA330J LC13333800
LL02 FM12223010 EMI FILTER DSS306-91-F-223Z FM12223010
XL01 JX14001260 CRYSTAL AT49/14.31818MHz JX14001260
XL02 /K/N JX17001260 CRYSTAL AT49 17.7MHz JX17001260
PP94-HEAD PHONES OUT
CIRCUIT BOARD
JP99 YJ01004240 JACK HLJ2307-01-3160 HEAD
PHONES OUT
YJ01004240
PS04-AUDIO FUNCTION/VOLUME
CIRCUIT BOARD
PS04-CAPACITORS
CE09 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE10 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE11 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE12 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE13 nsp ELECT. 10µF M 50V RA-2 OA10605020
CE14 nsp ELECT. 10µF M 50V RA-2 OA10605020
CE19 nsp ELECT. 47µF M 25V RA-2 OA47602520
CE20 nsp ELECT. 47µF M 25V RA-2 OA47602520
CE59 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE60 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE61 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE62 nsp ELECT. 22µF M 50V RA-2 OA22605020
CE63 nsp ELECT. 10µF M 50V RA-2 OA10605020
CE64 nsp ELECT. 10µF M 50V RA-2 OA10605020
CE69 nsp ELECT. 47µF M 25V RA-2 OA47602520
CE70 nsp ELECT. 47µF M 25V RA-2 OA47602520
CE81 nsp ELECT. 47µF M 25V RA-2 OA47602520
CE83 nsp ELECT. 47µF M 25V RA-2 OA47602520
CE85 nsp ELECT. 47µF M 25V RA-2 OA47602520
CE87 nsp ELECT. 47µF M 25V RA-2 OA47602520
CG09 nsp ELECT. 22µF M 50V RA-2 OA22605020
CG10 nsp ELECT. 22µF M 50V RA-2 OA22605020
CG11 nsp ELECT. 22µF M 50V RA-2 OA22605020
CG12 nsp ELECT. 22µF M 50V RA-2 OA22605020
CG13 nsp ELECT. 10µF M 50V RA-2 OA10605020
CG14 nsp ELECT. 10µF M 50V RA-2 OA10605020
CG19 nsp ELECT. 47µF M 25V RA-2 OA47602520
CG20 nsp ELECT. 47µF M 25V RA-2 OA47602520
CG59
nsp ELECT. 22µF M 50V RA-2 OA22605020
CG62
CG63 nsp ELECT. 10µF M 50V RA-2 OA10605020
CG64 nsp ELECT. 47µF M 25V RA-2 OA47602520
CG69 nsp ELECT. 47µF M 25V RA-2 OA47602520
CG70 nsp ELECT. 47µF M 25V RA-2 OA47602520
CH09
DF15471350 FILM 470pF J M 50V DF15471350
CH16
CJ09
DF15471350 FILM 470pF J M 50V DF15471350
CJ16
CM01 nsp ELECT. 10µF M 50V RA-2 OA10605020
CM02 nsp ELECT. 10µF M 50V RA-2 OA10605020
CM05 nsp ELECT. 10µF M 50V RA-2 OA10605020
CM06 nsp ELECT. 10µF M 50V RA-2 OA10605020
CM31 nsp ELECT. 22µF M 50V RA-2 OA22605020
CM32 nsp ELECT. 22µF M 50V RA-2 OA22605020
CM33 nsp ELECT. 10µF M 50V RA-2 OA10605020
CM34 nsp ELECT. 10µF M 50V RA-2 OA10605020
CM39 nsp ELECT. 47µF M 25V RA-2 OA47602520
CM40 nsp ELECT. 47µF M 25V RA-2 OA47602520
CQ03 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ04 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ07 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ08 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ11 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ12 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ15 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ16 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ19 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ20 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ23 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ24 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ27 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ28 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ31 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ32 nsp ELECT. 10µF M 50V RA-2 OA10605020
CQ73 nsp ELECT. 100µF M 16V RA-2 OA10701620
CQ74 nsp ELECT. 100µF M 16V RA-2 OA10701620
CQ76 nsp ELECT. 100µF M 16V RA-2 OA10701620
CQ78 nsp ELECT. 100µF M 16V RA-2 OA10701620
CQ89 nsp ELECT. 100µF M 16V RA-2 OA10701620
CQ90 nsp ELECT. 100µF M 16V RA-2 OA10701620
CS09 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS10 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS15 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS16 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS23 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS24 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS41 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS42 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS51 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS52 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS55
nsp ELECT. 10µF M 50V RA-2 OA10605020
CS58
CS61 nsp ELECT. 10µF M 50V RA-2 OA10605020
CS62 nsp ELECT. 10µF M 50V RA-2 OA10605020
