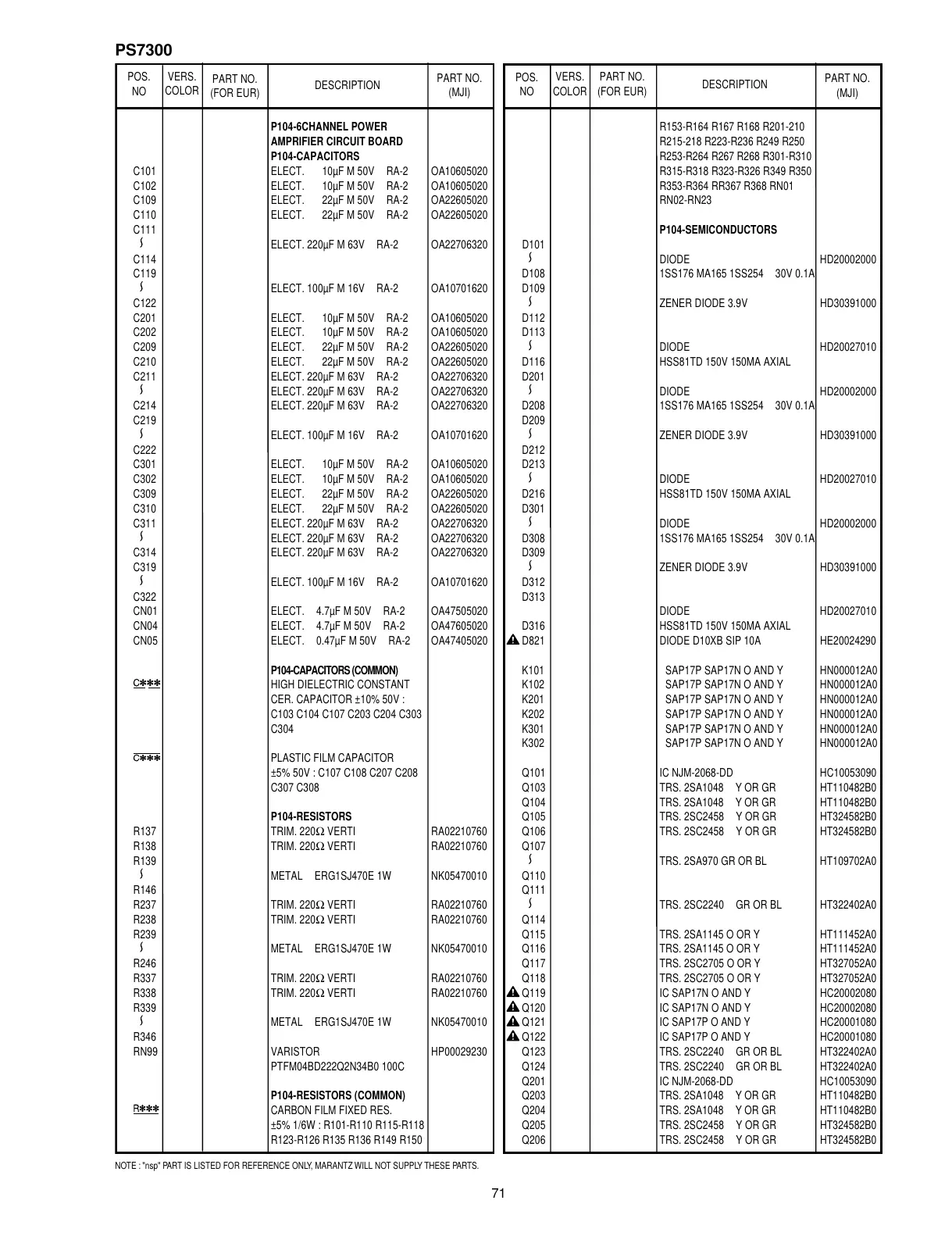

Marantz SR7300 - Page 55

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
71
PS7300
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
P104-6CHANNEL POWER
AMPRIFIER CIRCUIT BOARD
P104-CAPACITORS
C101 ELECT. 10µF M 50V RA-2 OA10605020
C102 ELECT. 10µF M 50V RA-2 OA10605020
C109 ELECT. 22µF M 50V RA-2 OA22605020
C110 ELECT. 22µF M 50V RA-2 OA22605020
C111
ELECT. 220µF M 63V RA-2 OA22706320
C114
C119
ELECT. 100µF M 16V RA-2 OA10701620
C122
C201 ELECT. 10µF M 50V RA-2 OA10605020
C202 ELECT. 10µF M 50V RA-2 OA10605020
C209 ELECT. 22µF M 50V RA-2 OA22605020
C210 ELECT. 22µF M 50V RA-2 OA22605020
C211 ELECT. 220µF M 63V RA-2 OA22706320
ELECT. 220µF M 63V RA-2 OA22706320
C214 ELECT. 220µF M 63V RA-2 OA22706320
C219
ELECT. 100µF M 16V RA-2 OA10701620
C222
C301 ELECT. 10µF M 50V RA-2 OA10605020
C302 ELECT. 10µF M 50V RA-2 OA10605020
C309 ELECT. 22µF M 50V RA-2 OA22605020
C310 ELECT. 22µF M 50V RA-2 OA22605020
C311 ELECT. 220µF M 63V RA-2 OA22706320
ELECT. 220µF M 63V RA-2 OA22706320
C314 ELECT. 220µF M 63V RA-2 OA22706320
C319
ELECT. 100µF M 16V RA-2 OA10701620
C322
CN01 ELECT. 4.7µF M 50V RA-2 OA47505020
CN04 ELECT. 4.7µF M 50V RA-2 OA47605020
CN05 ELECT. 0.47µF M 50V RA-2 OA47405020
P104-CAPACITORS (COMMON)
HIGH DIELECTRIC CONSTANT
CER. CAPACITOR ±10% 50V :
C103 C104 C107 C203 C204 C303
C304
PLASTIC FILM CAPACITOR
±5% 50V : C107 C108 C207 C208
C307 C308
P104-RESISTORS
R137 TRIM. 220
Ω VERTI RA02210760
R138 TRIM. 220
Ω VERTI RA02210760
R139
METAL ERG1SJ470E 1W NK05470010
R146
R237 TRIM. 220
Ω VERTI RA02210760
R238 TRIM. 220
Ω VERTI RA02210760
R239
METAL ERG1SJ470E 1W NK05470010
R246
R337 TRIM. 220
Ω VERTI RA02210760
R338 TRIM. 220
Ω VERTI RA02210760
R339
METAL ERG1SJ470E 1W NK05470010
R346
RN99 VARISTOR
PTFM04BD222Q2N34B0 100C
HP00029230
P104-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : R101-R110 R115-R118
R123-R126 R135 R136 R149 R150
R153-R164 R167 R168 R201-210
R215-218 R223-R236 R249 R250
R253-R264 R267 R268 R301-R310
R315-R318 R323-R326 R349 R350
R353-R364 RR367 R368 RN01
RN02-RN23
P104-SEMICONDUCTORS
D101
DIODE HD20002000
D108 1SS176 MA165 1SS254 30V 0.1A
D109
ZENER DIODE 3.9V HD30391000
D112
D113
DIODE HD20027010
D116 HSS81TD 150V 150MA AXIAL
D201
DIODE HD20002000
D208 1SS176 MA165 1SS254 30V 0.1A
D209
ZENER DIODE 3.9V HD30391000
D212
D213
DIODE HD20027010
D216 HSS81TD 150V 150MA AXIAL
D301
DIODE HD20002000
D308 1SS176 MA165 1SS254 30V 0.1A
D309
ZENER DIODE 3.9V HD30391000
D312
D313
DIODE HD20027010
D316 HSS81TD 150V 150MA AXIAL
D821 DIODE D10XB SIP 10A HE20024290
K101 SAP17P SAP17N O AND Y HN000012A0
K102 SAP17P SAP17N O AND Y HN000012A0
K201 SAP17P SAP17N O AND Y HN000012A0
K202 SAP17P SAP17N O AND Y HN000012A0
K301 SAP17P SAP17N O AND Y HN000012A0
K302 SAP17P SAP17N O AND Y HN000012A0
Q101 IC NJM-2068-DD HC10053090
Q103 TRS. 2SA1048 Y OR GR HT110482B0
Q104 TRS. 2SA1048 Y OR GR HT110482B0
Q105 TRS. 2SC2458 Y OR GR HT324582B0
Q106 TRS. 2SC2458 Y OR GR HT324582B0
Q107
TRS. 2SA970 GR OR BL HT109702A0
Q110
Q111
TRS. 2SC2240 GR OR BL HT322402A0
Q114
Q115 TRS. 2SA1145 O OR Y HT111452A0
Q116 TRS. 2SA1145 O OR Y HT111452A0
Q117 TRS. 2SC2705 O OR Y HT327052A0
Q118 TRS. 2SC2705 O OR Y HT327052A0
Q119 IC SAP17N O AND Y HC20002080
Q120 IC SAP17N O AND Y HC20002080
Q121 IC SAP17P O AND Y HC20001080
Q122 IC SAP17P O AND Y HC20001080
Q123 TRS. 2SC2240 GR OR BL HT322402A0
Q124 TRS. 2SC2240 GR OR BL HT322402A0
Q201 IC NJM-2068-DD HC10053090
Q203 TRS. 2SA1048 Y OR GR HT110482B0
Q204 TRS. 2SA1048 Y OR GR HT110482B0
Q205 TRS. 2SC2458 Y OR GR HT324582B0
Q206 TRS. 2SC2458 Y OR GR HT324582B0
