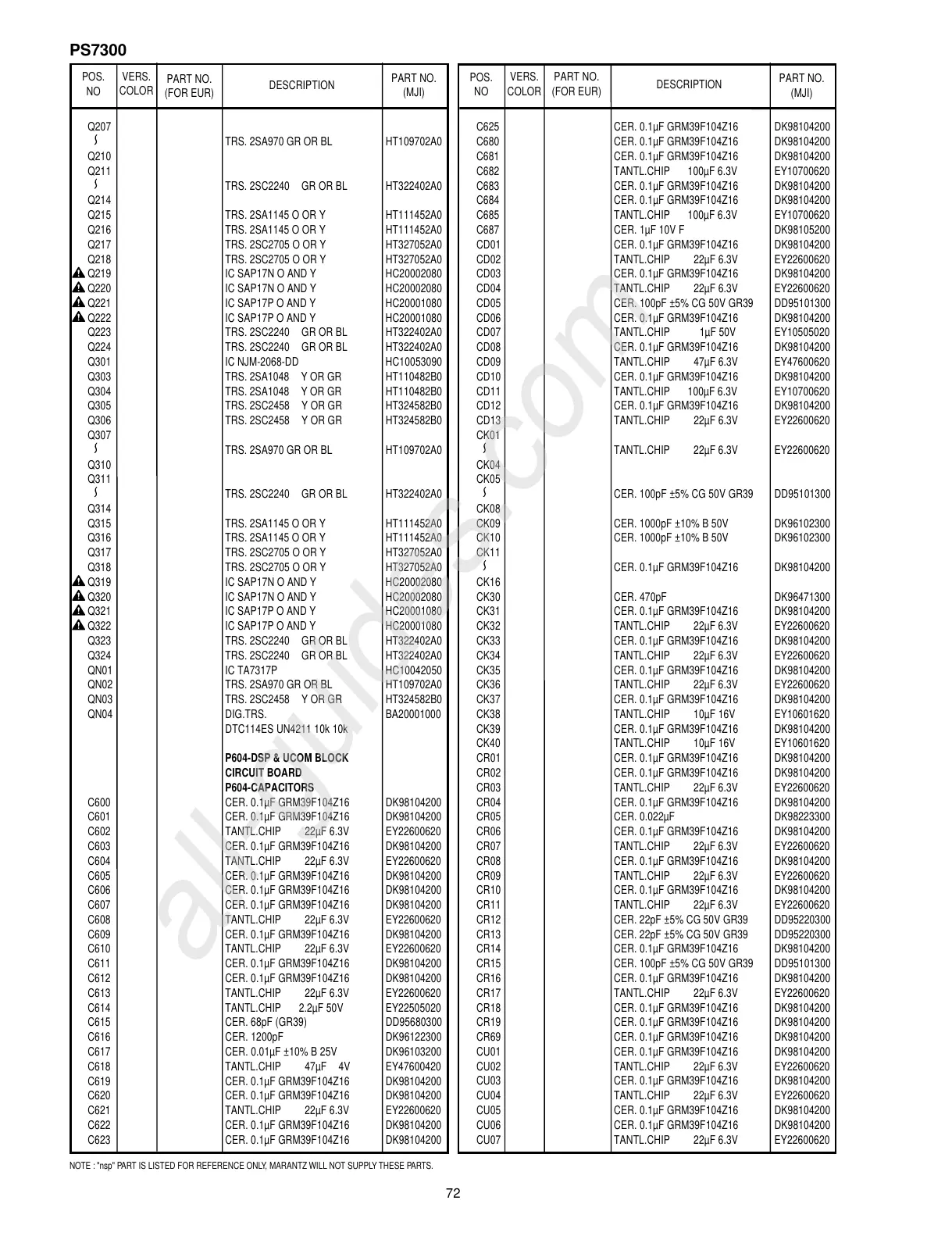

Marantz SR7300 - Page 56

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
72
PS7300
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
Q207
TRS. 2SA970 GR OR BL HT109702A0
Q210
Q211
TRS. 2SC2240 GR OR BL HT322402A0
Q214
Q215 TRS. 2SA1145 O OR Y HT111452A0
Q216 TRS. 2SA1145 O OR Y HT111452A0
Q217 TRS. 2SC2705 O OR Y HT327052A0
Q218 TRS. 2SC2705 O OR Y HT327052A0
Q219 IC SAP17N O AND Y HC20002080
Q220 IC SAP17N O AND Y HC20002080
Q221 IC SAP17P O AND Y HC20001080
Q222 IC SAP17P O AND Y HC20001080
Q223 TRS. 2SC2240 GR OR BL HT322402A0
Q224 TRS. 2SC2240 GR OR BL HT322402A0
Q301 IC NJM-2068-DD HC10053090
Q303 TRS. 2SA1048 Y OR GR HT110482B0
Q304 TRS. 2SA1048 Y OR GR HT110482B0
Q305 TRS. 2SC2458 Y OR GR HT324582B0
Q306 TRS. 2SC2458 Y OR GR HT324582B0
Q307
TRS. 2SA970 GR OR BL HT109702A0
Q310
Q311
TRS. 2SC2240 GR OR BL HT322402A0
Q314
Q315 TRS. 2SA1145 O OR Y HT111452A0
Q316 TRS. 2SA1145 O OR Y HT111452A0
Q317 TRS. 2SC2705 O OR Y HT327052A0
Q318 TRS. 2SC2705 O OR Y HT327052A0
Q319 IC SAP17N O AND Y HC20002080
Q320 IC SAP17N O AND Y HC20002080
Q321 IC SAP17P O AND Y HC20001080
Q322 IC SAP17P O AND Y HC20001080
Q323 TRS. 2SC2240 GR OR BL HT322402A0
Q324 TRS. 2SC2240 GR OR BL HT322402A0
QN01 IC TA7317P HC10042050
QN02 TRS. 2SA970 GR OR BL HT109702A0
QN03 TRS. 2SC2458 Y OR GR HT324582B0
QN04 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
P604-DSP & UCOM BLOCK
CIRCUIT BOARD
P604-CAPACITORS
C600 CER. 0.1µF GRM39F104Z16 DK98104200
C601 CER. 0.1µF GRM39F104Z16 DK98104200
C602 TANTL.CHIP 22µF 6.3V EY22600620
C603 CER. 0.1µF GRM39F104Z16 DK98104200
C604 TANTL.CHIP 22µF 6.3V EY22600620
C605 CER. 0.1µF GRM39F104Z16 DK98104200
C606 CER. 0.1µF GRM39F104Z16 DK98104200
C607 CER. 0.1µF GRM39F104Z16 DK98104200
C608 TANTL.CHIP 22µF 6.3V EY22600620
C609 CER. 0.1µF GRM39F104Z16 DK98104200
C610 TANTL.CHIP 22µF 6.3V EY22600620
C611 CER. 0.1µF GRM39F104Z16 DK98104200
C612 CER. 0.1µF GRM39F104Z16 DK98104200
C613 TANTL.CHIP 22µF 6.3V EY22600620
C614 TANTL.CHIP 2.2µF 50V EY22505020
C615 CER. 68pF (GR39) DD95680300
C616 CER. 1200pF DK96122300
C617 CER. 0.01µF ±10% B 25V DK96103200
C618 TANTL.CHIP 47µF 4V EY47600420
C619 CER. 0.1µF GRM39F104Z16 DK98104200
C620 CER. 0.1µF GRM39F104Z16 DK98104200
C621 TANTL.CHIP 22µF 6.3V EY22600620
C622 CER. 0.1µF GRM39F104Z16 DK98104200
C623 CER. 0.1µF GRM39F104Z16 DK98104200
C625 CER. 0.1µF GRM39F104Z16 DK98104200
C680 CER. 0.1µF GRM39F104Z16 DK98104200
C681 CER. 0.1µF GRM39F104Z16 DK98104200
C682 TANTL.CHIP 100µF 6.3V EY10700620
C683 CER. 0.1µF GRM39F104Z16 DK98104200
C684 CER. 0.1µF GRM39F104Z16 DK98104200
C685 TANTL.CHIP 100µF 6.3V EY10700620
C687 CER. 1µF 10V F DK98105200
CD01 CER. 0.1µF GRM39F104Z16 DK98104200
CD02 TANTL.CHIP 22µF 6.3V EY22600620
CD03 CER. 0.1µF GRM39F104Z16 DK98104200
CD04 TANTL.CHIP 22µF 6.3V EY22600620
CD05 CER. 100pF ±5% CG 50V GR39 DD95101300
CD06 CER. 0.1µF GRM39F104Z16 DK98104200
CD07 TANTL.CHIP 1µF 50V EY10505020
CD08 CER. 0.1µF GRM39F104Z16 DK98104200
CD09 TANTL.CHIP 47µF 6.3V EY47600620
CD10 CER. 0.1µF GRM39F104Z16 DK98104200
CD11 TANTL.CHIP 100µF 6.3V EY10700620
CD12 CER. 0.1µF GRM39F104Z16 DK98104200
CD13 TANTL.CHIP 22µF 6.3V EY22600620
CK01
TANTL.CHIP 22µF 6.3V EY22600620
CK04
CK05
CER. 100pF ±5% CG 50V GR39 DD95101300
CK08
CK09 CER. 1000pF ±10% B 50V DK96102300
CK10 CER. 1000pF ±10% B 50V DK96102300
CK11
CER. 0.1µF GRM39F104Z16 DK98104200
CK16
CK30 CER. 470pF DK96471300
CK31 CER. 0.1µF GRM39F104Z16 DK98104200
CK32 TANTL.CHIP 22µF 6.3V EY22600620
CK33 CER. 0.1µF GRM39F104Z16 DK98104200
CK34 TANTL.CHIP 22µF 6.3V EY22600620
CK35 CER. 0.1µF GRM39F104Z16 DK98104200
CK36 TANTL.CHIP 22µF 6.3V EY22600620
CK37 CER. 0.1µF GRM39F104Z16 DK98104200
CK38 TANTL.CHIP 10µF 16V EY10601620
CK39 CER. 0.1µF GRM39F104Z16 DK98104200
CK40 TANTL.CHIP 10µF 16V EY10601620
CR01 CER. 0.1µF GRM39F104Z16 DK98104200
CR02 CER. 0.1µF GRM39F104Z16 DK98104200
CR03 TANTL.CHIP 22µF 6.3V EY22600620
CR04 CER. 0.1µF GRM39F104Z16 DK98104200
CR05 CER. 0.022µF DK98223300
CR06 CER. 0.1µF GRM39F104Z16 DK98104200
CR07 TANTL.CHIP 22µF 6.3V EY22600620
CR08 CER. 0.1µF GRM39F104Z16 DK98104200
CR09 TANTL.CHIP 22µF 6.3V EY22600620
CR10 CER. 0.1µF GRM39F104Z16 DK98104200
CR11 TANTL.CHIP 22µF 6.3V EY22600620
CR12 CER. 22pF ±5% CG 50V GR39 DD95220300
CR13 CER. 22pF ±5% CG 50V GR39 DD95220300
CR14 CER. 0.1µF GRM39F104Z16 DK98104200
CR15 CER. 100pF ±5% CG 50V GR39 DD95101300
CR16 CER. 0.1µF GRM39F104Z16 DK98104200
CR17 TANTL.CHIP 22µF 6.3V EY22600620
CR18 CER. 0.1µF GRM39F104Z16 DK98104200
CR19 CER. 0.1µF GRM39F104Z16 DK98104200
CR69 CER. 0.1µF GRM39F104Z16 DK98104200
CU01 CER. 0.1µF GRM39F104Z16 DK98104200
CU02 TANTL.CHIP 22µF 6.3V EY22600620
CU03 CER. 0.1µF GRM39F104Z16 DK98104200
CU04 TANTL.CHIP 22µF 6.3V EY22600620
CU05 CER. 0.1µF GRM39F104Z16 DK98104200
CU06 CER. 0.1µF GRM39F104Z16 DK98104200
CU07 TANTL.CHIP 22µF 6.3V EY22600620
