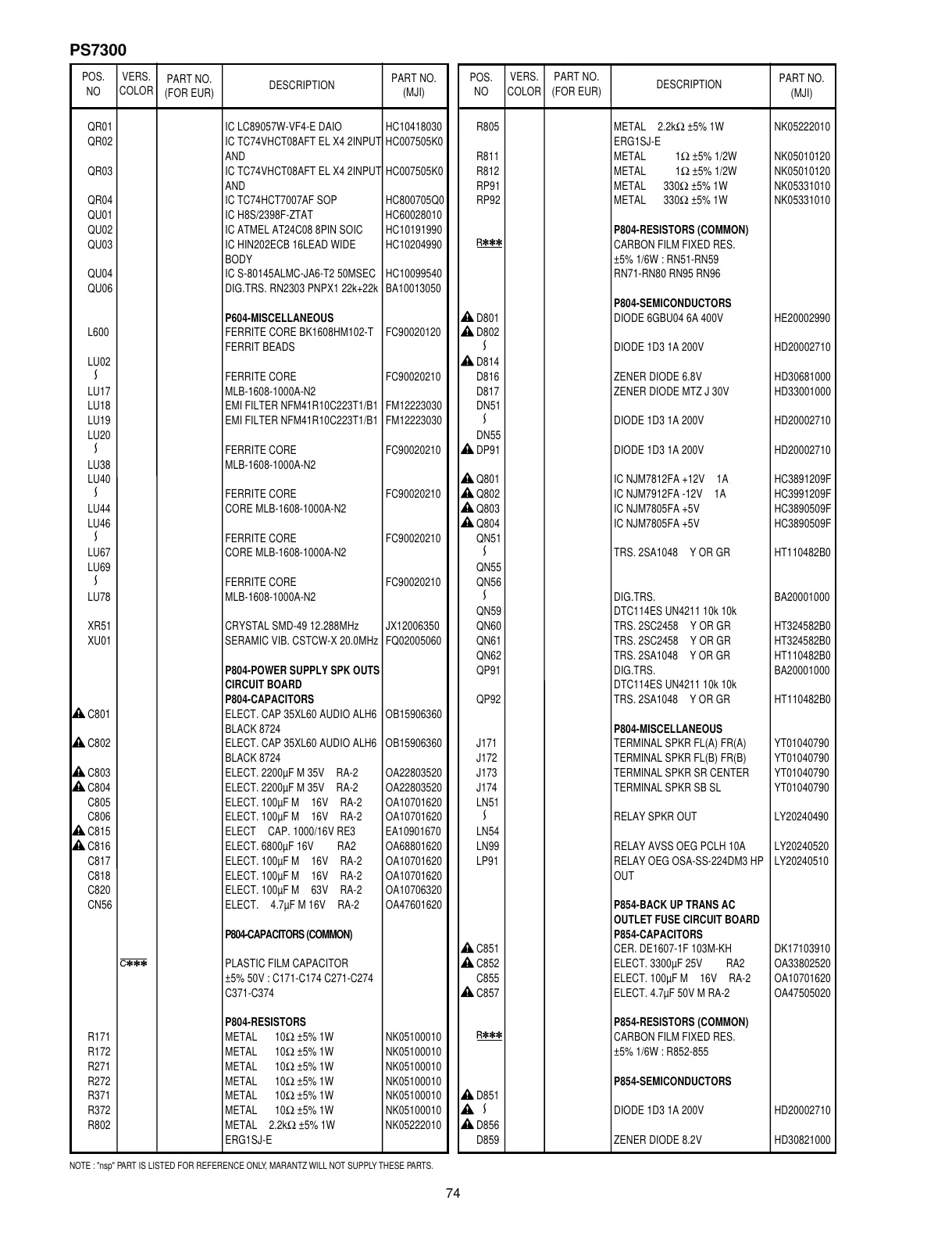

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
74
PS7300
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
QR01 IC LC89057W-VF4-E DAIO HC10418030
QR02 IC TC74VHCT08AFT EL X4 2INPUT
AND
HC007505K0
QR03 IC TC74VHCT08AFT EL X4 2INPUT
AND
HC007505K0
QR04 IC TC74HCT7007AF SOP HC800705Q0
QU01 IC H8S/2398F-ZTAT HC60028010
QU02 IC ATMEL AT24C08 8PIN SOIC HC10191990
QU03 IC HIN202ECB 16LEAD WIDE
BODY
HC10204990
QU04 IC S-80145ALMC-JA6-T2 50MSEC HC10099540
QU06 DIG.TRS. RN2303 PNPX1 22k+22k BA10013050
P604-MISCELLANEOUS
L600 FERRITE CORE BK1608HM102-T
FERRIT BEADS
FC90020120
LU02
FERRITE CORE FC90020210
LU17 MLB-1608-1000A-N2
LU18 EMI FILTER NFM41R10C223T1/B1 FM12223030
LU19 EMI FILTER NFM41R10C223T1/B1 FM12223030
LU20
FERRITE CORE FC90020210
LU38 MLB-1608-1000A-N2
LU40
FERRITE CORE FC90020210
LU44 CORE MLB-1608-1000A-N2
LU46
FERRITE CORE FC90020210
LU67 CORE MLB-1608-1000A-N2
LU69
FERRITE CORE FC90020210
LU78 MLB-1608-1000A-N2
XR51 CRYSTAL SMD-49 12.288MHz JX12006350
XU01 SERAMIC VIB. CSTCW-X 20.0MHz FQ02005060
P804-POWER SUPPLY SPK OUTS
CIRCUIT BOARD
P804-CAPACITORS
C801 ELECT. CAP 35XL60 AUDIO ALH6
BLACK 8724
OB15906360
C802 ELECT. CAP 35XL60 AUDIO ALH6
BLACK 8724
OB15906360
C803 ELECT. 2200µF M 35V RA-2 OA22803520
C804 ELECT. 2200µF M 35V RA-2 OA22803520
C805 ELECT. 100µF M 16V RA-2 OA10701620
C806 ELECT. 100µF M 16V RA-2 OA10701620
C815 ELECT CAP. 1000/16V RE3 EA10901670
C816 ELECT. 6800µF 16V RA2 OA68801620
C817 ELECT. 100µF M 16V RA-2 OA10701620
C818 ELECT. 100µF M 16V RA-2 OA10701620
C820 ELECT. 100µF M 63V RA-2 OA10706320
CN56 ELECT. 4.7µF M 16V RA-2 OA47601620
P804-CAPACITORS (COMMON)
PLASTIC FILM CAPACITOR
±5% 50V : C171-C174 C271-C274
C371-C374
P804-RESISTORS
R171 METAL 10
Ω ±5% 1W NK05100010
R172 METAL 10
Ω ±5% 1W NK05100010
R271 METAL 10
Ω ±5% 1W NK05100010
R272 METAL 10
Ω ±5% 1W NK05100010
R371 METAL 10
Ω ±5% 1W NK05100010
R372 METAL 10
Ω ±5% 1W NK05100010
R802 METAL 2.2k
Ω ±5% 1W
ERG1SJ-E
NK05222010
R805 METAL 2.2k
Ω ±5% 1W
ERG1SJ-E
NK05222010
R811 METAL 1
Ω ±5% 1/2W NK05010120
R812 METAL 1
Ω ±5% 1/2W NK05010120
RP91 METAL 330
Ω ±5% 1W NK05331010
RP92 METAL 330
Ω ±5% 1W NK05331010
P804-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RN51-RN59
RN71-RN80 RN95 RN96
P804-SEMICONDUCTORS
D801 DIODE 6GBU04 6A 400V HE20002990
D802
DIODE 1D3 1A 200V HD20002710
D814
D816 ZENER DIODE 6.8V HD30681000
D817 ZENER DIODE MTZ J 30V HD33001000
DN51
DIODE 1D3 1A 200V HD20002710
DN55
DP91 DIODE 1D3 1A 200V HD20002710
Q801 IC NJM7812FA +12V 1A HC3891209F
Q802 IC NJM7912FA -12V 1A HC3991209F
Q803 IC NJM7805FA +5V HC3890509F
Q804 IC NJM7805FA +5V HC3890509F
QN51
TRS. 2SA1048 Y OR GR HT110482B0
QN55
QN56
DIG.TRS. BA20001000
QN59 DTC114ES UN4211 10k 10k
QN60 TRS. 2SC2458 Y OR GR HT324582B0
QN61 TRS. 2SC2458 Y OR GR HT324582B0
QN62 TRS. 2SA1048 Y OR GR HT110482B0
QP91 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QP92 TRS. 2SA1048 Y OR GR HT110482B0
P804-MISCELLANEOUS
J171 TERMINAL SPKR FL(A) FR(A) YT01040790
J172 TERMINAL SPKR FL(B) FR(B) YT01040790
J173 TERMINAL SPKR SR CENTER YT01040790
J174 TERMINAL SPKR SB SL YT01040790
LN51
RELAY SPKR OUT LY20240490
LN54
LN99 RELAY AVSS OEG PCLH 10A LY20240520
LP91 RELAY OEG OSA-SS-224DM3 HP
OUT
LY20240510
P854-BACK UP TRANS AC
OUTLET FUSE CIRCUIT BOARD
P854-CAPACITORS
C851 CER. DE1607-1F 103M-KH DK17103910
C852 ELECT. 3300µF 25V RA2 OA33802520
C855 ELECT. 100µF M 16V RA-2 OA10701620
C857 ELECT. 4.7µF 50V M RA-2 OA47505020
P854-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : R852-855
P854-SEMICONDUCTORS
D851
DIODE 1D3 1A 200V HD20002710
D856
D859 ZENER DIODE 8.2V HD30821000
