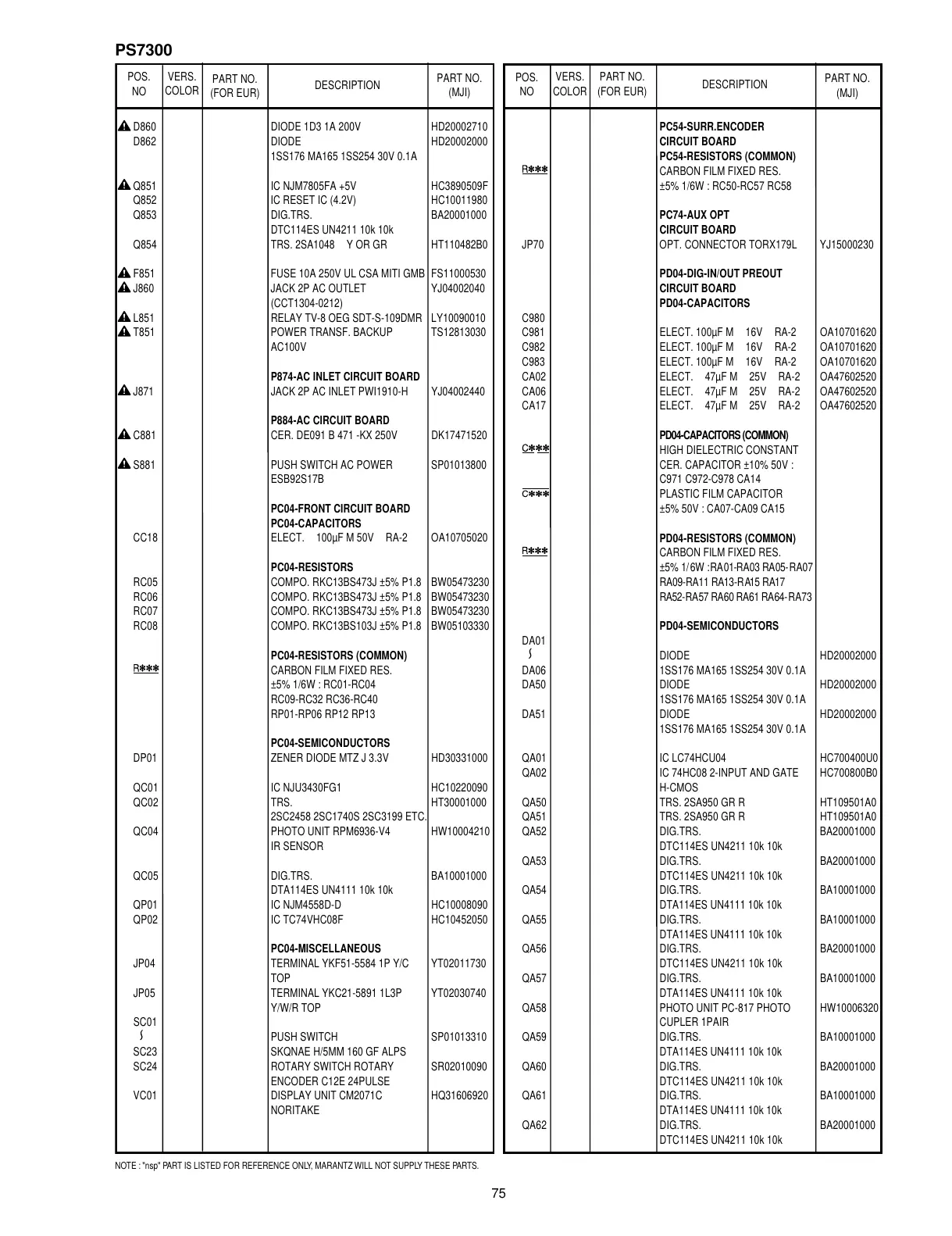

Marantz SR7300 - Page 59

NOTE : "nsp" PART IS LISTED FOR REFERENCE ONLY, MARANTZ WILL NOT SUPPLY THESE PARTS.
75
PS7300
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
POS.
NO
VERS.
COLOR
PART NO.
(FOR EUR)
DESCRIPTION
PART NO.
(MJI)
D860 DIODE 1D3 1A 200V HD20002710
D862 DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
Q851 IC NJM7805FA +5V HC3890509F
Q852 IC RESET IC (4.2V) HC10011980
Q853 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
Q854 TRS. 2SA1048 Y OR GR HT110482B0
F851 FUSE 10A 250V UL CSA MITI GMB FS11000530
J860 JACK 2P AC OUTLET
(CCT1304-0212)
YJ04002040
L851 RELAY TV-8 OEG SDT-S-109DMR LY10090010
T851 POWER TRANSF. BACKUP
AC100V
TS12813030
P874-AC INLET CIRCUIT BOARD
J871 JACK 2P AC INLET PWI1910-H YJ04002440
P884-AC CIRCUIT BOARD
C881 CER. DE091 B 471 -KX 250V DK17471520
S881 PUSH SWITCH AC POWER
ESB92S17B
SP01013800
PC04-FRONT CIRCUIT BOARD
PC04-CAPACITORS
CC18 ELECT. 100µF M 50V RA-2 OA10705020
PC04-RESISTORS
RC05 COMPO. RKC13BS473J ±5% P1.8 BW05473230
RC06 COMPO. RKC13BS473J ±5% P1.8 BW05473230
RC07 COMPO. RKC13BS473J ±5% P1.8 BW05473230
RC08 COMPO. RKC13BS103J ±5% P1.8 BW05103330
PC04-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RC01-RC04
RC09-RC32 RC36-RC40
RP01-RP06 RP12 RP13
PC04-SEMICONDUCTORS
DP01 ZENER DIODE MTZ J 3.3V HD30331000
QC01 IC NJU3430FG1 HC10220090
QC02 TRS.
2SC2458 2SC1740S 2SC3199 ETC.
HT30001000
QC04 PHOTO UNIT RPM6936-V4
IR SENSOR
HW10004210
QC05 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QP01 IC NJM4558D-D HC10008090
QP02 IC TC74VHC08F HC10452050
PC04-MISCELLANEOUS
JP04 TERMINAL YKF51-5584 1P Y/C
TOP
YT02011730
JP05 TERMINAL YKC21-5891 1L3P
Y/W/R TOP
YT02030740
SC01
PUSH SWITCH SP01013310
SC23 SKQNAE H/5MM 160 GF ALPS
SC24 ROTARY SWITCH ROTARY
ENCODER C12E 24PULSE
SR02010090
VC01 DISPLAY UNIT CM2071C
NORITAKE
HQ31606920
PC54-SURR.ENCODER
CIRCUIT BOARD
PC54-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RC50-RC57 RC58
PC74-AUX OPT
CIRCUIT BOARD
JP70 OPT. CONNECTOR TORX179L YJ15000230
PD04-DIG-IN/OUT PREOUT
CIRCUIT BOARD
PD04-CAPACITORS
C980
C981 ELECT. 100µF M 16V RA-2 OA10701620
C982 ELECT. 100µF M 16V RA-2 OA10701620
C983 ELECT. 100µF M 16V RA-2 OA10701620
CA02 ELECT. 47µF M 25V RA-2 OA47602520
CA06 ELECT. 47µF M 25V RA-2 OA47602520
CA17 ELECT. 47µF M 25V RA-2 OA47602520
PD04-CAPACITORS (COMMON)
HIGH DIELECTRIC CONSTANT
CER. CAPACITOR ±10% 50V :
C971 C972-C978 CA14
PLASTIC FILM CAPACITOR
±5% 50V : CA07-CA09 CA15
PD04-RESISTORS (COMMON)
CARBON FILM FIXED RES.
±5% 1/6W : RA01-RA03 RA05-RA07
RA09-RA11 RA13-RA15 RA17
RA52-RA57 RA60 RA61 RA64-RA73
PD04-SEMICONDUCTORS
DA01
DIODE HD20002000
DA06 1SS176 MA165 1SS254 30V 0.1A
DA50 DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
DA51 DIODE
1SS176 MA165 1SS254 30V 0.1A
HD20002000
QA01 IC LC74HCU04 HC700400U0
QA02 IC 74HC08 2-INPUT AND GATE
H-CMOS
HC700800B0
QA50 TRS. 2SA950 GR R HT109501A0
QA51 TRS. 2SA950 GR R HT109501A0
QA52 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA53 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA54 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA55 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA56 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA57 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA58 PHOTO UNIT PC-817 PHOTO
CUPLER 1PAIR
HW10006320
QA59 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA60 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
QA61 DIG.TRS.
DTA114ES UN4111 10k 10k
BA10001000
QA62 DIG.TRS.
DTC114ES UN4211 10k 10k
BA20001000
