6.VIDEO/MAIN UNIT SUB ASSY

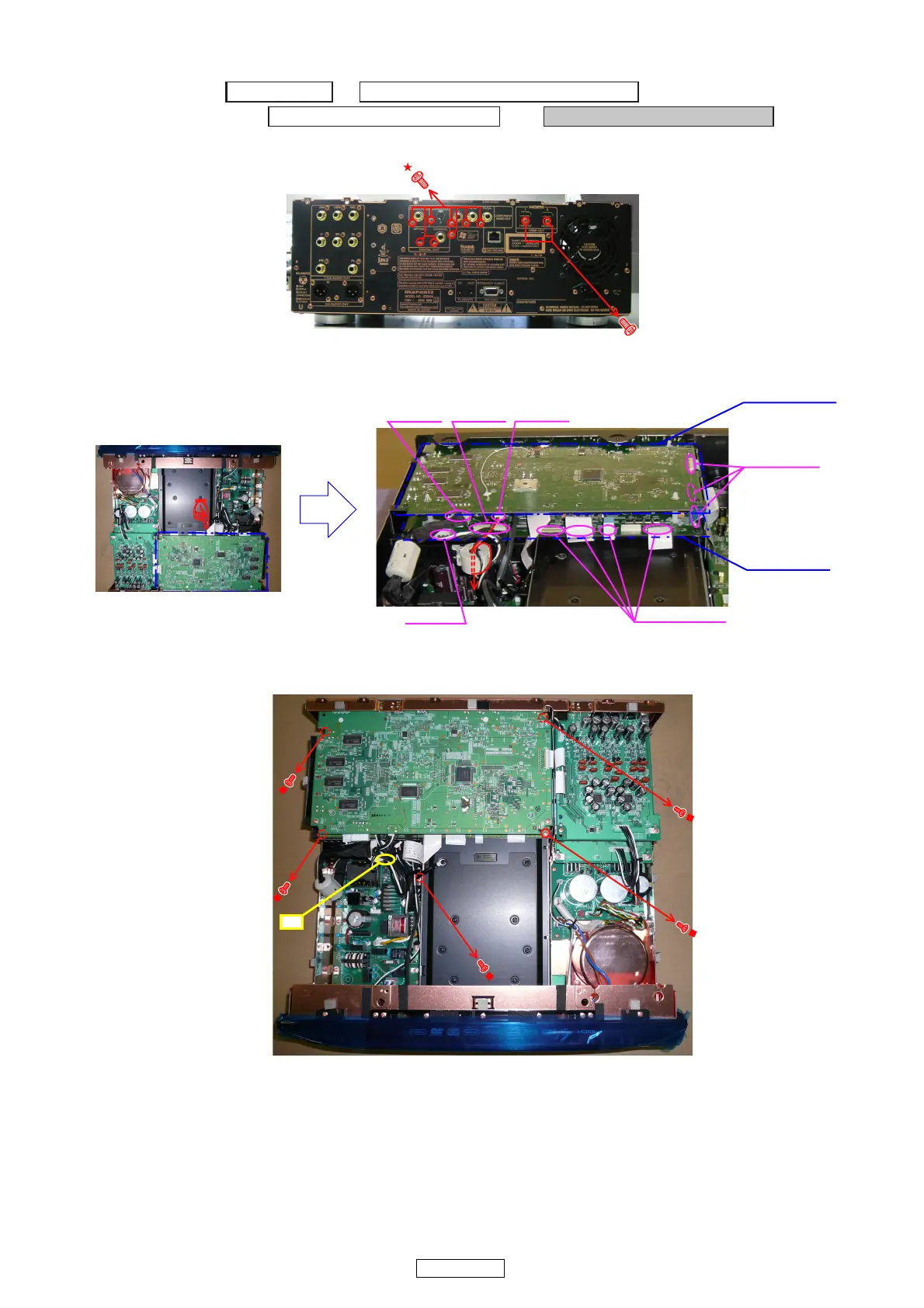

(1) Remove the screws.
(2) Disconnect the connector wire and FFC cables.
(3) Cut the wire clamp band. Remove the screws, then remove “VIDEO/MAIN UNIT SUB ASSY". Refer to the diagram
next page for instructions on removing.
Proceeding : TOP COVER →
→
→
SIDE COVER (L) and (R) SUB ASSY
AUDIO SUR/BACK/S_W UNIT VIDEO/MAIN UNIT SUB ASSY
ً
Direction of photograph: A
FFC Cable
CX044
CY151
CX031
CX051
FFC Cable
VIDEO UNIT
MAIN UNIT
Direction of photograph: B
v
cut
To Next Page
