14
UD9004
9. MECHA ASSY

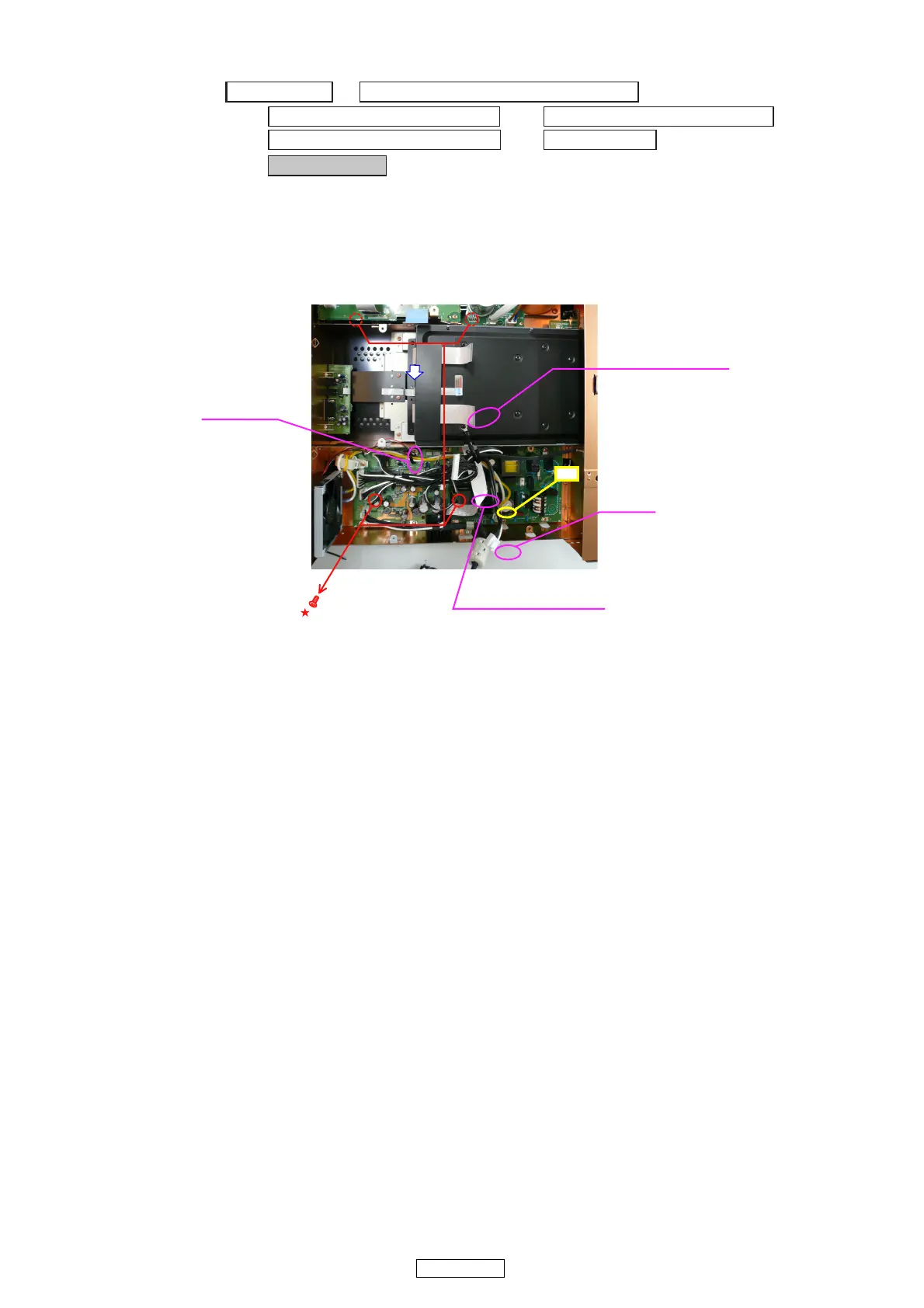

(1) Cut the wire clamp band, then disconnect the connector wires. Remove the screws, then remove “MECHA ASSY” in
the direction of the arrow.
b When mounting the mechanism, adjust the position of the loader panel. (See page 16)
Proceeding : TOP COVER →
→
→
→
→
→
SIDE COVER (L) and (R) SUB ASSY
AUDIO SUR/BACK/S_W UNIT VIDEO/MAIN UNIT SUB ASSY
DIGITAL CHASSIS SUB ASSY POWER UNIT
MECHA ASSY
CY062
FFC Cable
Cord holder : LOOSE
Cord holder : LOOSE
cut
