15
UD9004

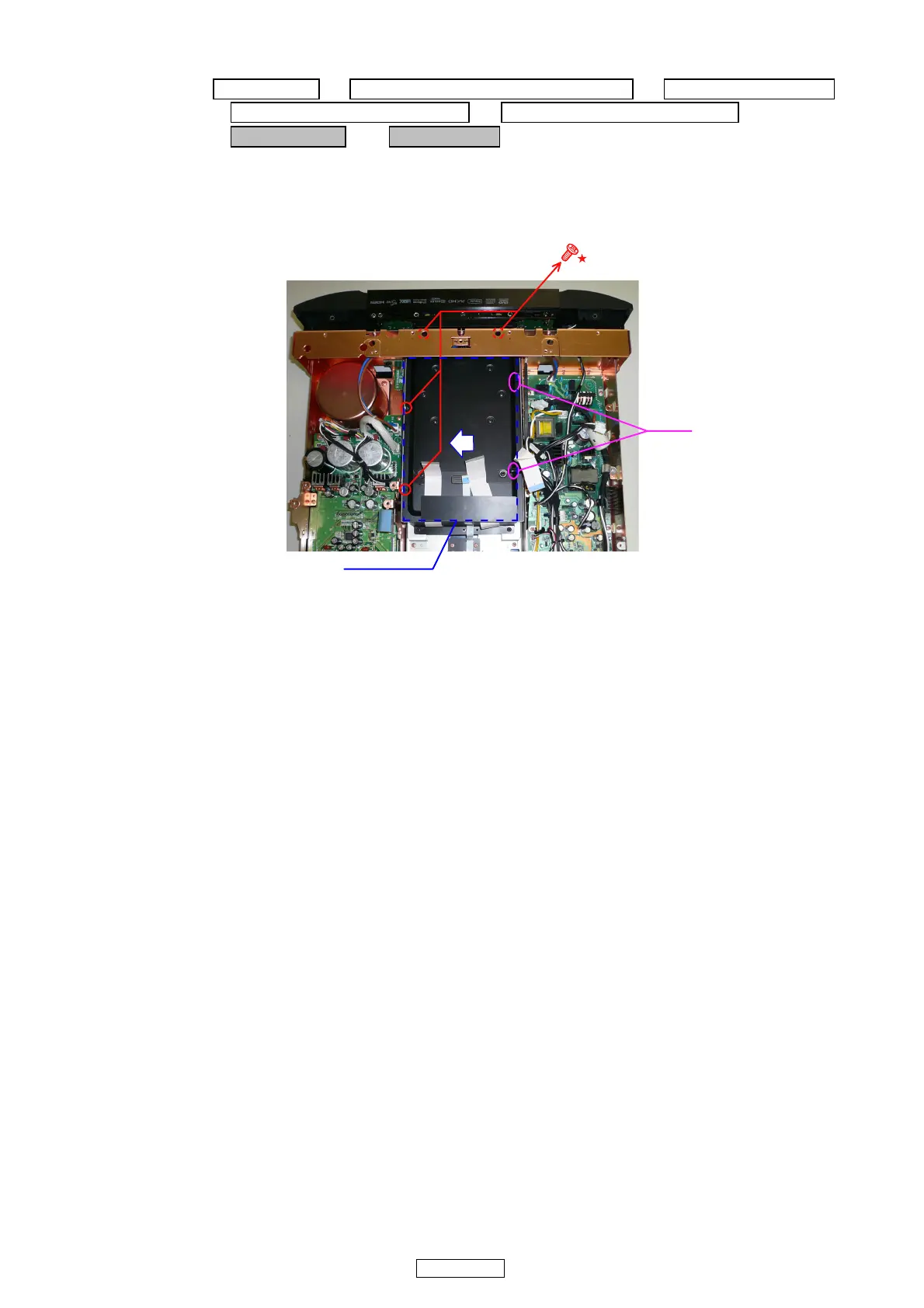

Removing discs
(1) Remove the screws( ★ mark), then lift the clamp cover to unhook the hooks.
(2) Remove the Clamp cover in the direction of the arrow, then remove the disc inside.
b¶ Be careful not to scratch the disc when removing the Clamp cover.
Proceeding : TOP COVER → SIDE COVER (L) and (R) SUB ASSY → FRONT PANEL ASSY
→ VIDEO/MAIN UNIT SUB ASSY → DIGITAL CHASSIS SUB ASSY
→ BLIND SHEET → Clamp cover
Hook
clamp cover
To Next Page
