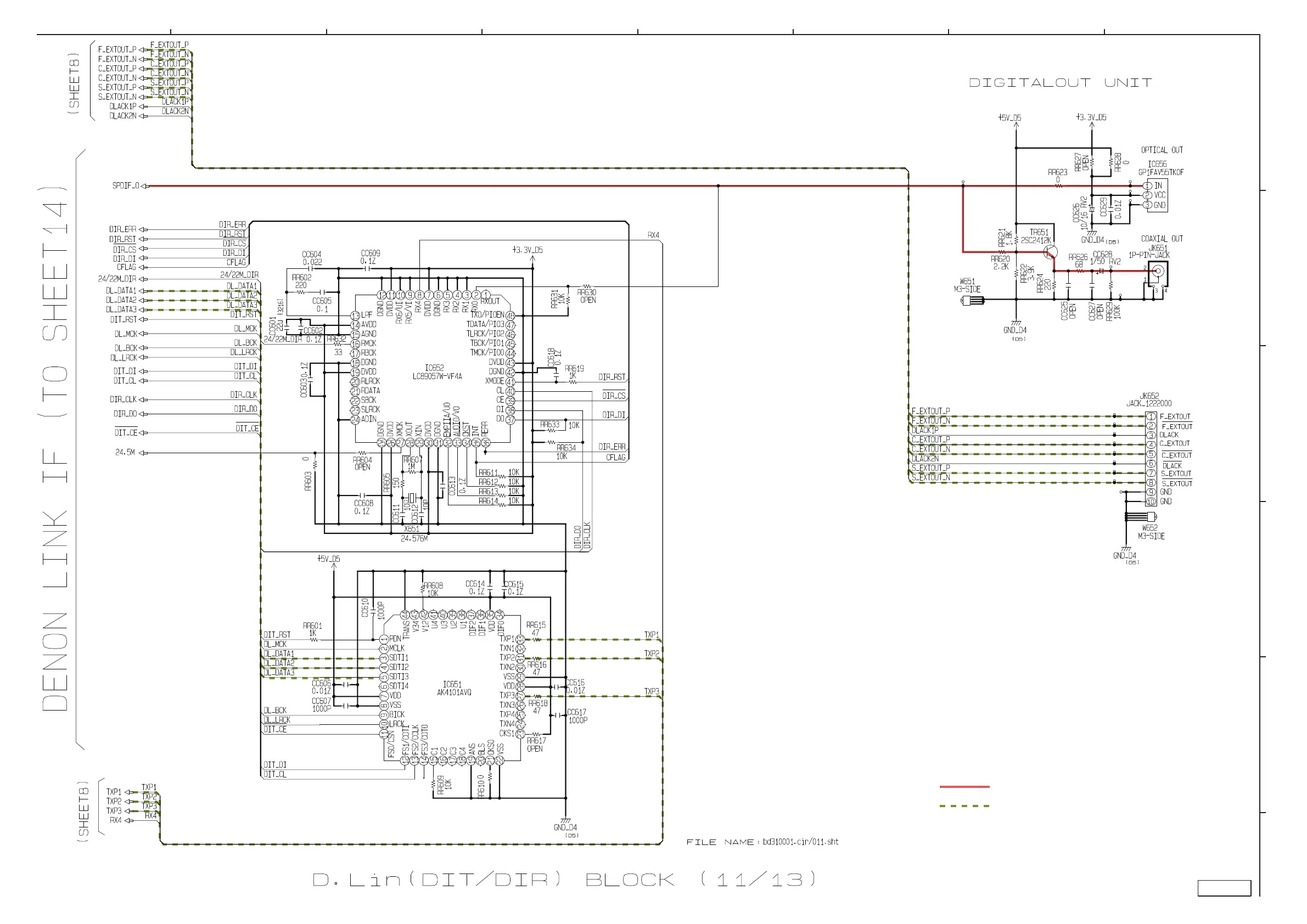

SCHEMATIC DIAGRAMS (20/44)
8U-37AK550001 MAIN UNIT(11/13)
D.Lin(DIT/DIR) BLOCK
BD/DVD/CD PLAY SPDIF OUTPUT SIGNAL LINE
D.LINK OUTPUT SIGNAL LINE
UD9004
