TECHNICAL SPECIFICATIONS
FM TUNER SECTION
Frequency Range ....................................... 87.5 - 108.0 MHz
Usable Sensitivity .................................. IHF 1.8 µV/16.4 dBf
Signal to Noise Ratio ..........................Mono/Stereo 75/70 dB
Distortion ........................................... Mono/Stereo 0.2/0.3 %
Stereo Separation ............................................... 1 kHz 45 dB
Alternate Channel Selectivity ...................... ± 300 kHz 60 dB
Image Rejection ............................................... 98 MHz 70 dB
Tuner Output Level ..................1 kHz, ± 75 kHz Dev 800 mV
AM TUNER SECTION
Frequency Range ..................................531 - 1602 kHz [ /N ]
..................................520 - 1710 kHz [ /U ]
Signal to Noise Ratio .................................................... 50 dB
Usable Sensitivity .............................................. Loop 400 µV
Distortion ........................................ 400Hz, 30 % Mod. 0.5 %
Selectivity ...................................................... ± 18 kHz 70 dB
AUDIO SECTION
Power Output (20 Hz - 20 kHz/THD=0.08%)
Front L&R ............................................. 8 ohms 95 W / Ch
Center .................................................. 8 ohms 95 W / Ch
Surround L&R ...................................... 8 ohms 95 W / Ch
Surround Back L&R ............................. 8 ohms 95 W / Ch
Front L&R ........................................... 6 ohms 115 W / Ch
Center ................................................ 6 ohms 115 W / Ch
Surround L&R .................................... 6 ohms 115 W / Ch
Surround Back L&R ........................... 6 ohms 115 W / Ch
Input Sensitivity/Impedance ...................... 168 mV/ 47 kohms
Signal to Noise Ratio
(Analog Input / Pure Direct) ................................. 105 dB
Frequency Response
(Analog Input / Pure Direct) ........ 8 Hz - 100 kHz (± 3 dB)
(Digital Input / 96 kHz PCM) ......... 8 Hz - 45 kHz (± 3 dB)
VIDEO SECTION
Television Format ..................................................NTSC/PAL
Input Level/Impedance ..................................1 Vp-p/75 ohms
Output Level/Impedance ................................1 Vp-p/75 ohms
Video Frequency Response .............. 5 Hz to 8 MHz (- 1 dB)
Video Frequency (Component) ....... 5 Hz to 80 MHz (- 1 dB)
S/N ................................................................................ 60 dB
PLC SECTION
Modulation Method .............................................. Multi carrier
Frequency Band ...........................................2 MHz - 20 MHz
GENERAL
Power Requirement .........................AC 230 V 50/60 Hz [ /N ]
..............................AC 120 V 60 Hz [ /U ]
Power Consumption ............................................ 600 W [ /N ]
..................................................5A [ /U ]
Weight ....................................................... 13.7 kg (30.2 lbs)
ACCESSORIES
Remote Control Unit RC5500SR ..........................................1
AAA-size batteries ............................................................... 2
FM Antenna ..........................................................................1
AM Loop Antenna .................................................................1
Front AUX Jack Cover ......................................................... 1
AC Power Cable ...................................................................1
SURROUND
AV SURROUND RECEIVER ZR6001
DOWN UP
VOLUME INPUT SELECTOR
POWER ON / STANDBY PHONES
STANDBY
MUTE MULTI M. SPEAKER B 7.1CH INPUT
PURE
SETUP DIRECT
SIMPLE
AUTO HT-EQ MENU
ENTER
DISPLAY MEMORY CLEAR
T-MODE EXIT BAND
MODE
DISP MULTI AUTO TUNED ST V — OFF NIGHT PEAK ANALOG
DIGITAL
ATT
SLEEP
SURR
AUTO DIRECT DISC 6.1 MTX 6.1 EQ
DIGITAL
SURROUND
PCM
L
C
R
SL S SR
LFE
AUX 1 INPUT
AUDIOS-VIDEO VIDEO L R

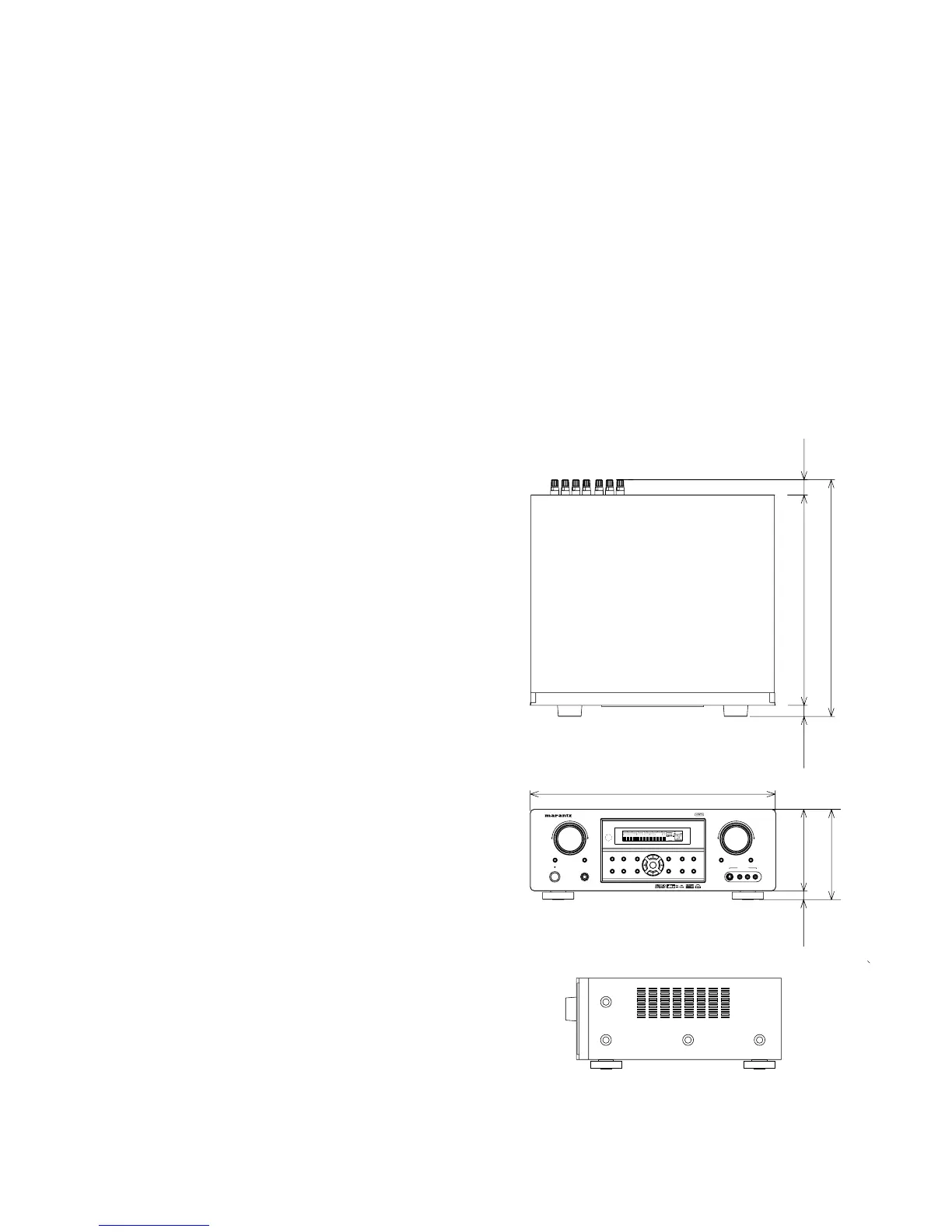

16-1/2 ins.
(418 mm)
18-1/4 ins.
(463 mm)
1 in.
(25 mm)
13/16 ins.
(20 mm)
6-7/16 ins.
(162 mm)
11/16 ins.
(16 mm)
5-3/4 ins.
(146 mm)
17-5/16 ins. (440 mm)
