CONNECTING FOR THE MULTI PLC LISTENING
Connect the AC power cable of the ZR6001 to a wall electrical outlet. Also connect the AC power cable of
the ZC4001 to a wall electrical outlet.
Up to four ZC4001 units may be connected to the same system at one time.
1
MEMORY
MODE
F/
P
PREV.
S
TOP
OPEN/
CL
OSE
TUNING
PLAY
PAUSE
NEXT
ON
/S
TANDBY
POW
E
R
PHO
N
ES
M
ODE
SU
R
ROUND
TV
FM/AM
BS
DI
GI
TAL
VI
DEO
DVD
ZC4001
ZC4001
ZR6001

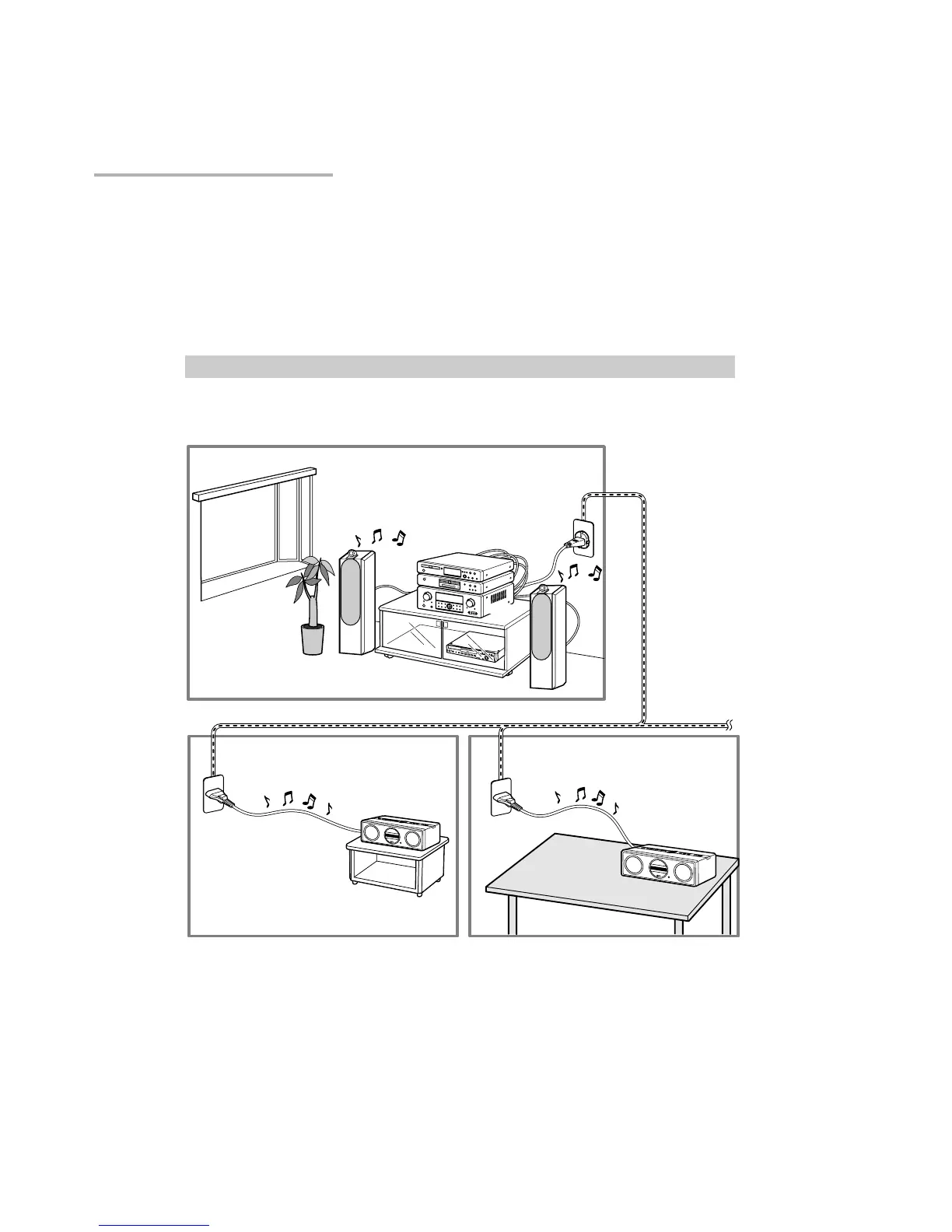

Home power line
ROOM A
ROOM B ROOM C
FEATURES
By simply plugging the power cables of the ZR6001 and ZC4001 into ordinary home electrical outlets, the ZR6001 sends
audio sources over your home electrical line for playback by the ZC4001.
PLC (POWER LINE COMMUNICATION)
The ZR6001* converts analog audio signals into noncompressed linear PCM digital signals, modulates them into high
frequency signals, and sends them over
power lines. The ZC4001 demodulates the sent signals and converts them back to analog signals.
* : If the condition of the power line degenerates because of the effects of noise from other devices or for other reasons,
the ZR6001 uses an audio format of different sampling rate and data bit length.
