8.8 Triac Replacement
1. Turn off machine and disconnect from mains power.
2. Remove Lower Front Panel as per sections 8.2.
3. Disconnect all wires to the Triac – making note of the correct wiring terminal connections.

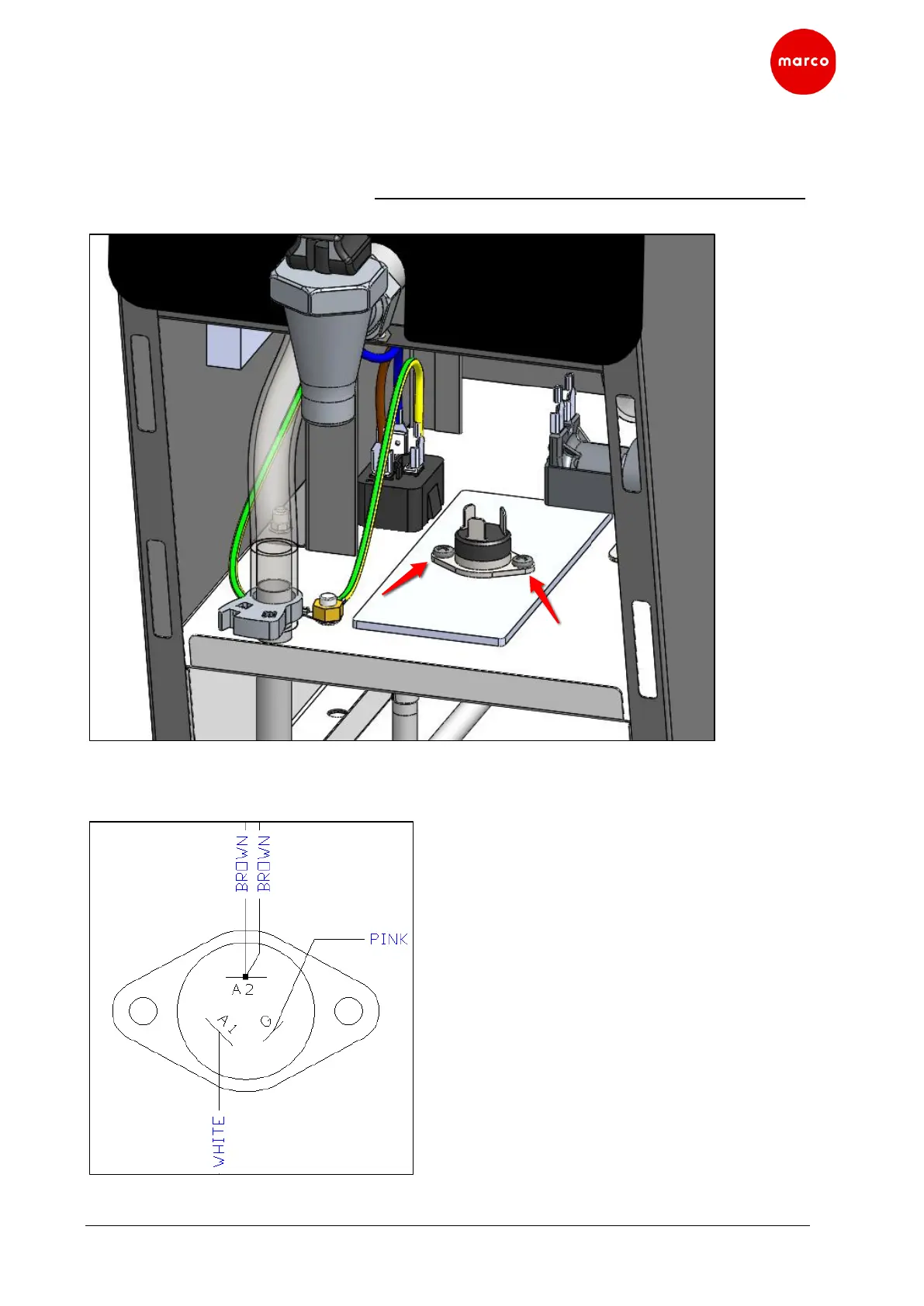

4. Undo two retaining screws as located in the picture below.
Correct triac wiring (as per wiring diagrams):
