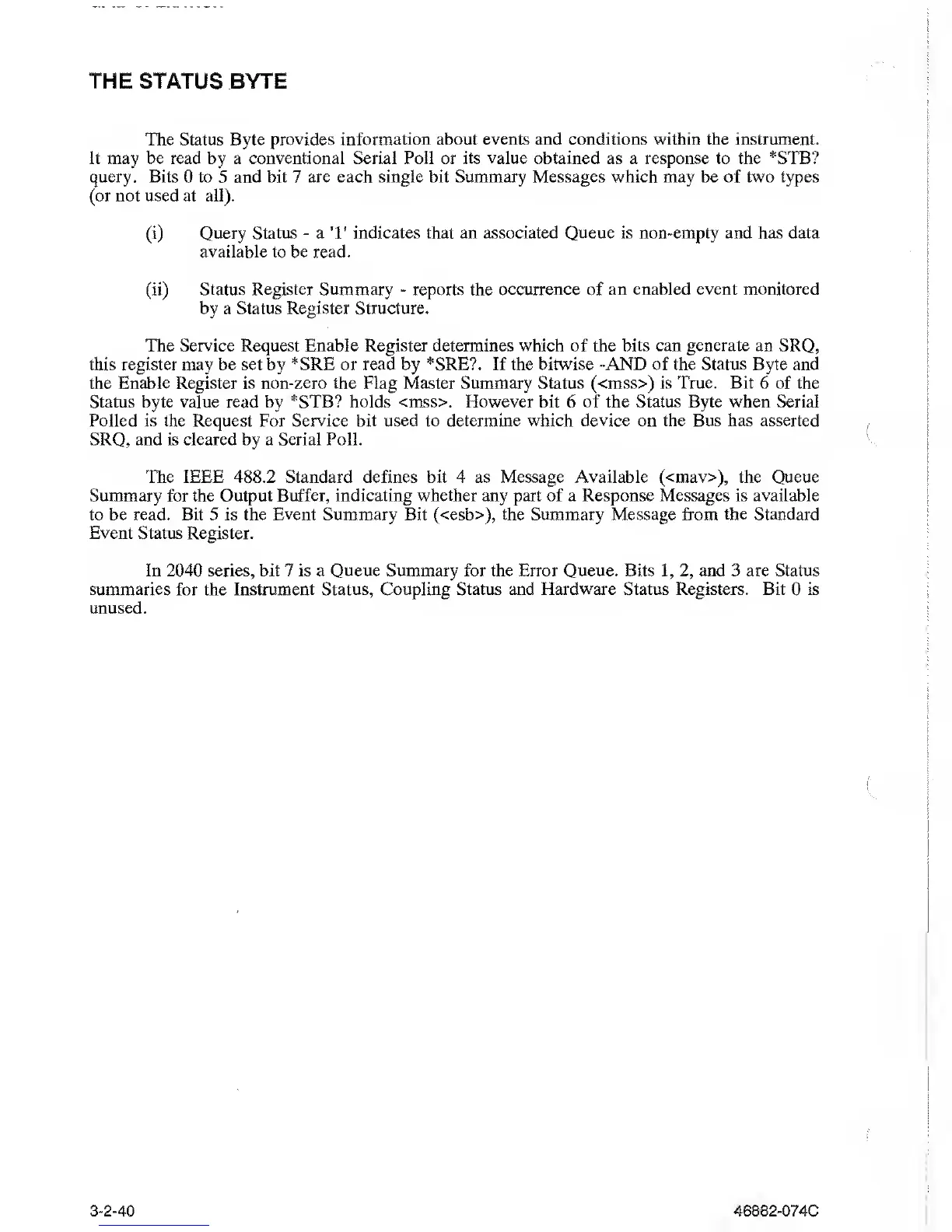

THE STATUS BYTE
The Status Byte provides information about events and conditions within the instrument.
It may
be
read by a
conventional Serial
Poll or its
value obtained
as
a response to the
*STB?
query. Bits
0
to
5
and bit 7 are each single bit Summary Messages
which
may be of
two
types
(or not
used at all).
(i)
Query Status
-
a T
indicates that an associated Queue is non-empty and has data
available to be read.
(ii) Status Register Summary
-
reports
the
occurrence
of an
enabled event monitored
by a Status Register Structure.
The Service Request Enable Register determines which of the bits can generate an SRQ,
this register
may be set
by
*SRE
or read by *SRE?. If the bitwise -AND of the Status Byte and
the Enable Register is non-zero the Flag Master Summary Status (<mss>) is True. Bit 6 of the
Status byte value read by *STB? holds <mss>. However bit 6 of the Status Byte when Serial
Polled is the Request For
Service bit used
to
determine which device
on
the Bus has asserted
SRQ, and is cleared by a Serial Poll.
The IEEE 488.2 Standard defines bit 4 as Message Available (<mav>), the Queue
Summary
for the Output
Buffer, indicating whether any part of a Response Messages is available
to be read. Bit 5
is
the
Event
Summary Bit (<esb>),
the
Summary Message from
the
Standard
Event Status Register.
In
2040
series,
bit 7
is
a Queue Summary
for
the Error Queue. Bits
1, 2,
and
3
are Status
summaries
for the
Instrument Status,
Coupling
Status and Hardware Status Registers. Bit
0 is
unused.
3-2-40
46882-074C
