LOCAL
Memory
Store Menu
Carrier Store Number
:
Q
Full
Store
Partial
Store
Carrier
Store
Sweep
Store
C0941

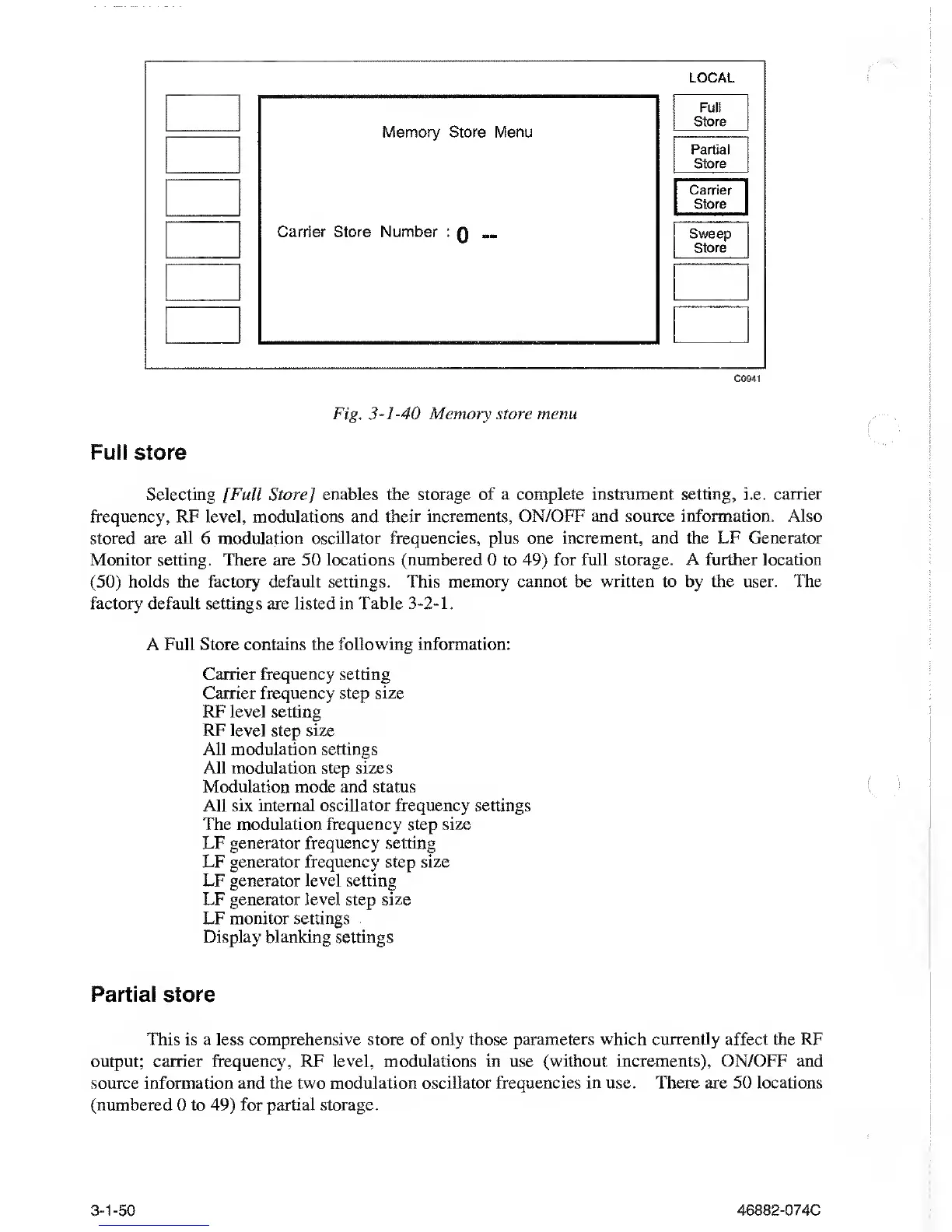

Fig.
3-1-40
Memory store menu
Full store
Selecting [Full Store
]
enables the storage of a complete instrument setting, i.e.
carrier
frequency, RF level, modulations and their
increments, ON/OFF and source information. Also
stored
are
all
6
modulation oscillator frequencies,
plus
one increment, and the LF Generator
Monitor setting.
There
are 50 locations (numbered
0 to
49)
for full storage. A further
location
(50)
holds the
factory
default settings. This memory cannot be
written
to by the user.
The
factory default settings
are
listed in Table
3-2-1.
A Full Store contains the
following
information:
Carrier frequency setting
Carrier frequency step size
RF
level
setting
RF level step size
All modulation settings
All modulation step sizes
Modulation mode
and status
All six internal oscillator frequency settings
The modulation
frequency step
size
LF generator frequency setting
LF generator frequency step
size
LF generator level setting
LF generator
level
step
size
LF monitor settings
Display blanking settings
Partial store
This is a less comprehensive store of only those
parameters which currently
affect the
RF
output; carrier frequency, RF level, modulations in use
(without increments), ON/OFF and
source information and the
two
modulation
oscillator frequencies in use. There are 50 locations
(numbered 0
to
49)
for partial storage.
3-1-50
46882-074C
