Marey G6FLP - Page 16

16
DESIGN AND COMPONENT IDENTIFICATION

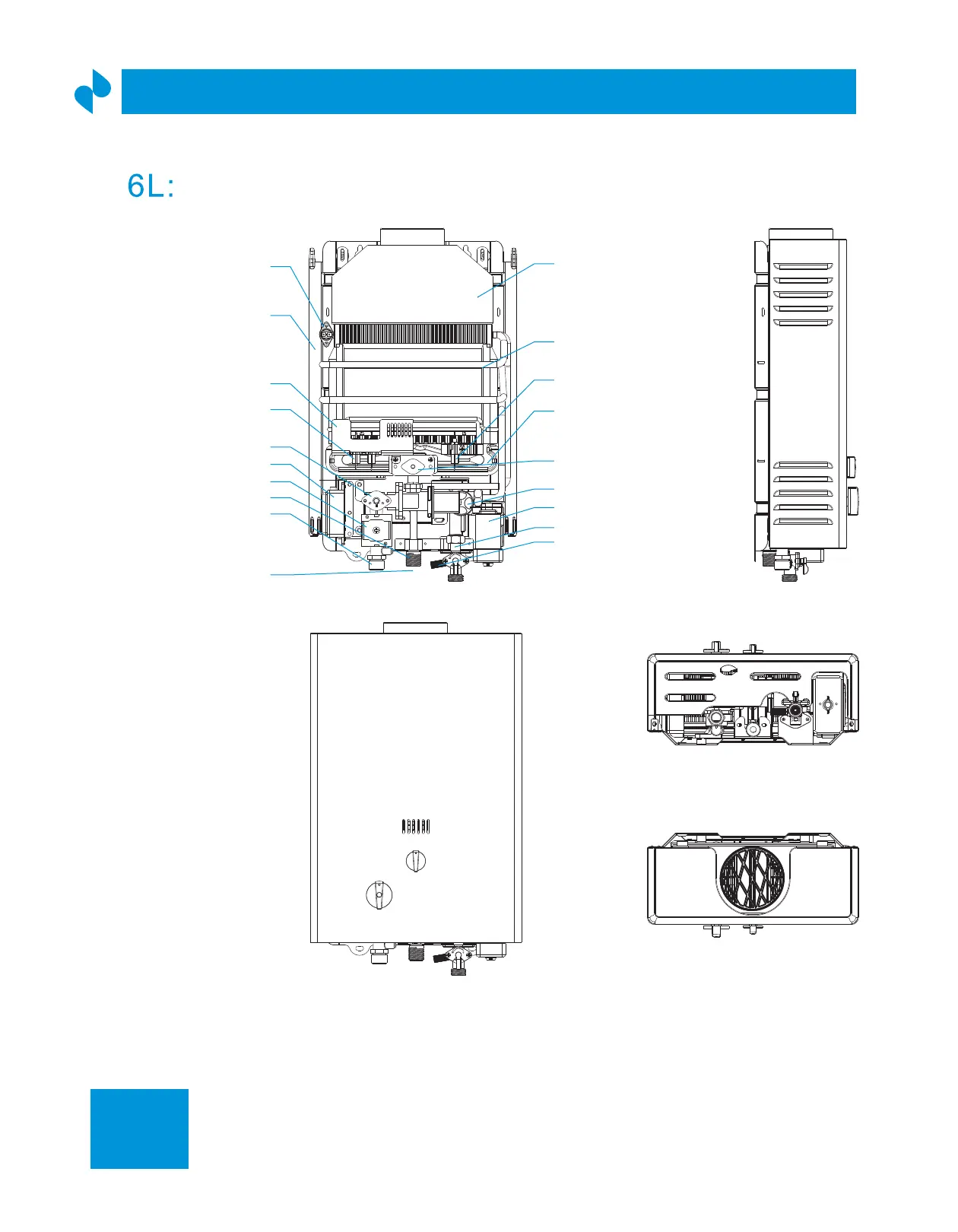

DRAWING 09 - G6L
On/off switch
Thermostat
Bottom case
Fire baffle
Induction needle
Gas adjust valve
Pulse igniter
Electromagnetic valve
Water outlet pipe
Gas inlet pipe
Fume hood
Heat exchanger
Ignition needle
Burner
Summer/Winter
adjust valve
Water flow sensor
Battery case
Water inlet pipe
Pressure relief valve
