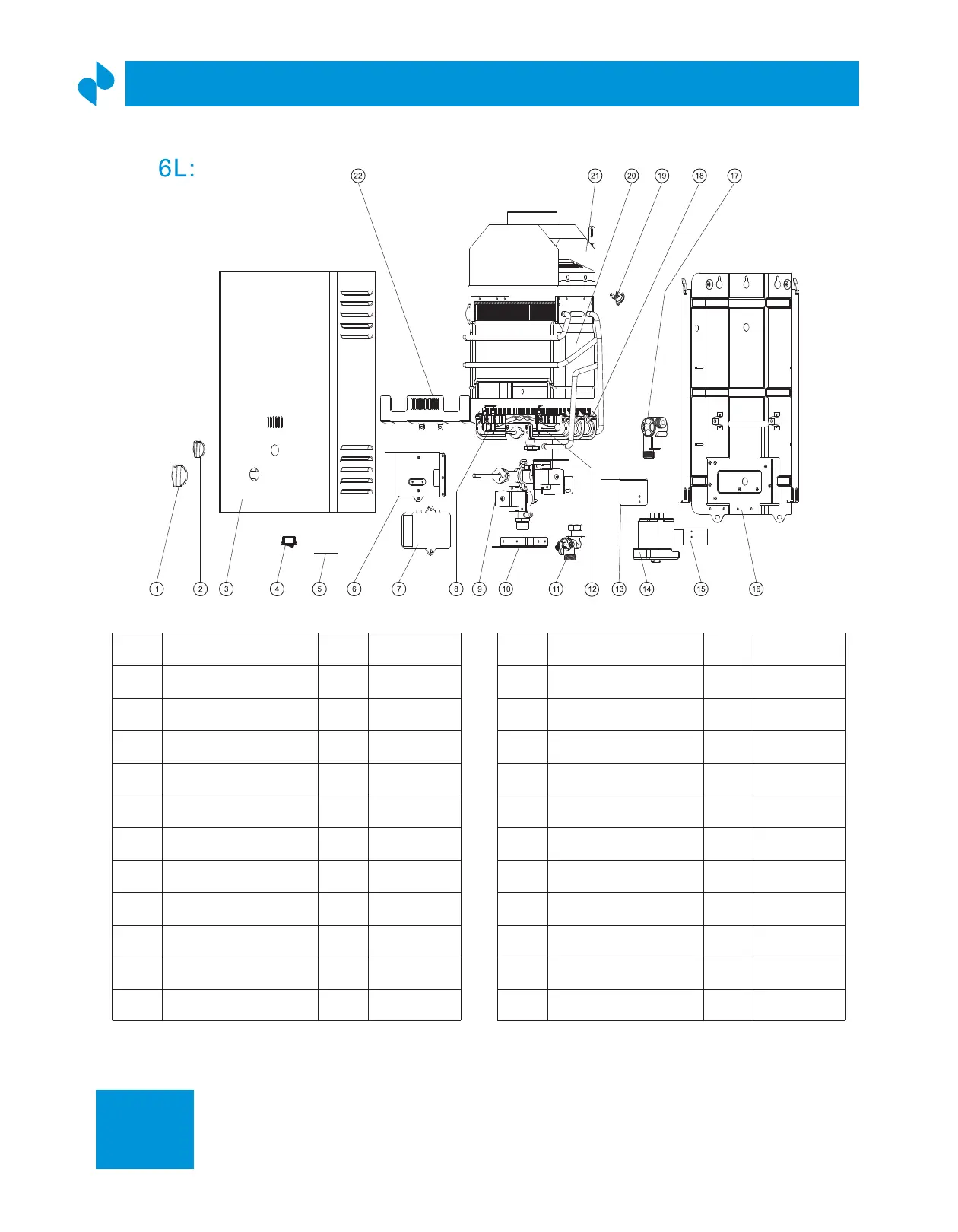

Marey G6FLP - Exploded View

EXPLODED VIEW
Nº.
1
2
3
4
5
6
7
8
9
10
11
QTY.
1
1
1
1
1
1
1
1
1
1
1
REMARKSNAME
Gas controlling knob
Winter and summer knob
Front case
Hot and cold water switch
Water outlet fixing bracket
Pulse igniter bracket
Pulse igniter
Induction needle
Gas valve assembly
Inlet connector bracket
Inlet connector
Nº.
12
13
14
15
16
17
18
19
20
21
22
QTY.
2
1
1
1
1
1
1
1
1
1
1
REMARKSNAME
Ignition needle
Battery box heat shield
Battery case
Battery box bracket
Bottom case
Water flow sensor
Burner
Thermostat
Heat exchanger
Fume hood
Flame baffle
18
DRAWING 11
