52 RefeReNce PReamPlifieR / Quick-Start Guide

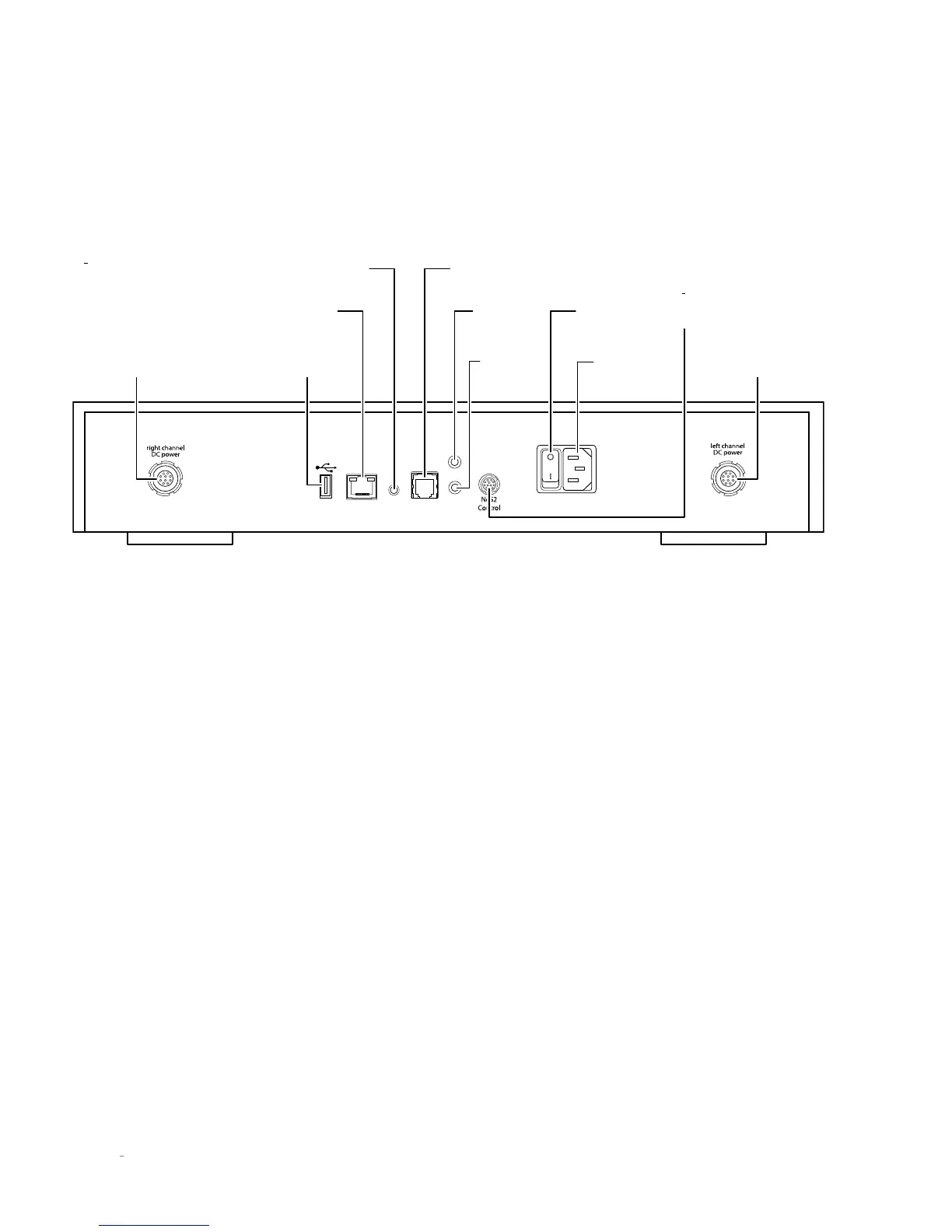

REAR-PANEL OVERVIEW
GettinG StaRted
Trigger
Output
Input
~ac mains
65W
RS-232
IR Input
EthernetUSB
N
0
52 CONTROLLER
Right Channel
DC Power
Connector
USB
Port
Ethernet
Port
Trigger
Input
Connector
Trigger
Output
Connector
Left Channel
DC Power
Connector
AC Mains
Connector
Power
Switch
N
0
52
Control
Connector
IR Input
Connector
RS-232
Port
