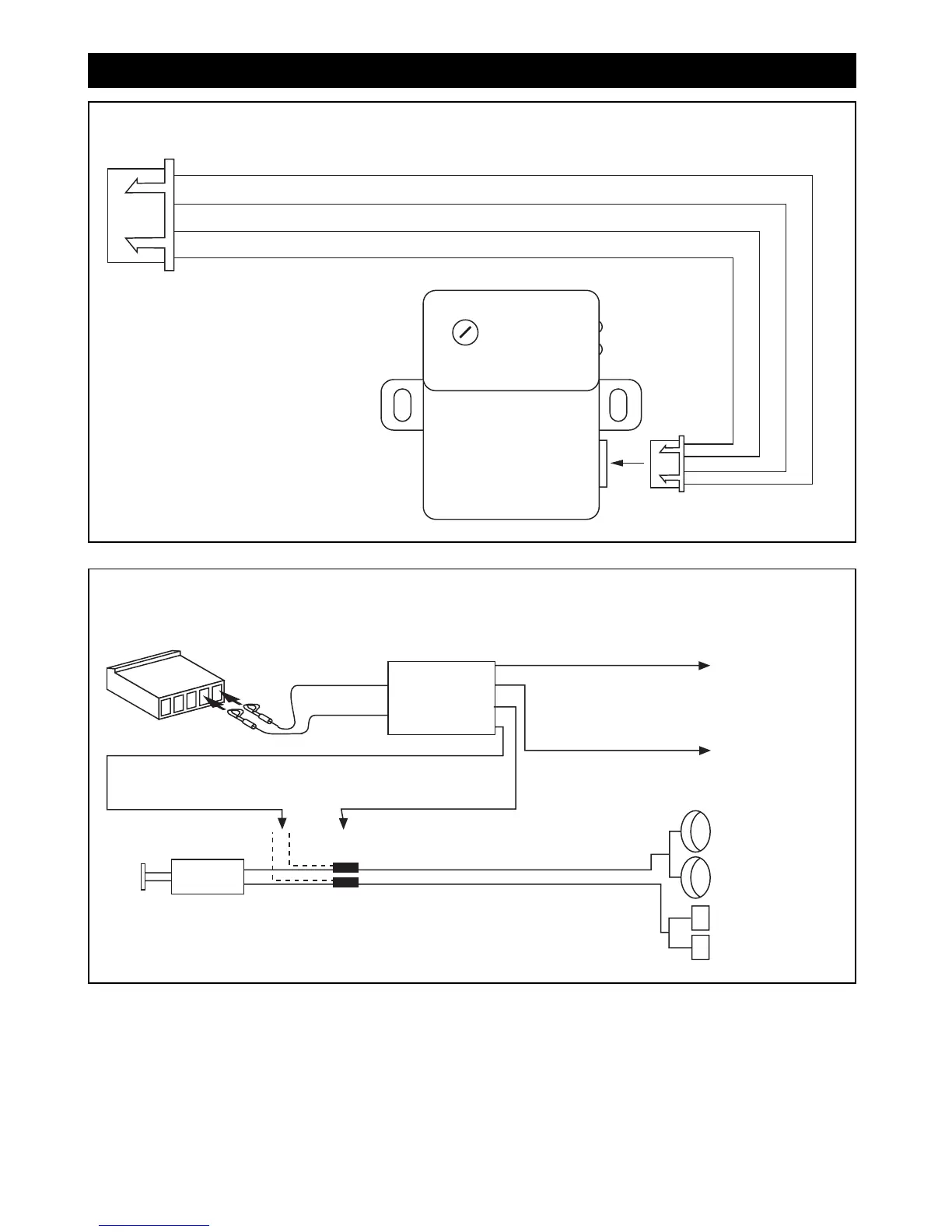

Step 4: Optional Accessory Connections (continued)
White/Orange Wire
Optional Dome Light Illumination and Lighted Pathway Illumination
Output to
Dome Light
(+ or - )
Input to
Relay
(+ or - )
White/Purple Wire
Orange Wire
Purple Wire
Low Beam
Headlights
Warning! Piggyback connections to Low Beam Headlights
or Parking Lights (one or the other, but not both)
Parking
Lights
ALA-RPT2
Relay Pack
Headlight Switch
Black Wire
Red Wire
Input to Relay (+ or - )
or
10
Dual-Zone Electronic Sensor Plug
Red Wire: +12 Volt Sensor Power Supply
Green Wire: Sensor Pre-Warning Input (for Dual-Zone Sensors Only)
Black Wire: Sensor Ground Supply
Blue Wire: Sensor Alarm Trigger Input
White 4-Pin Plug
Red 4-Pin Plug
