+ When mounted into a short channel the product must be fully assembled and ready for use,
with only the machine interface loom to be connected.

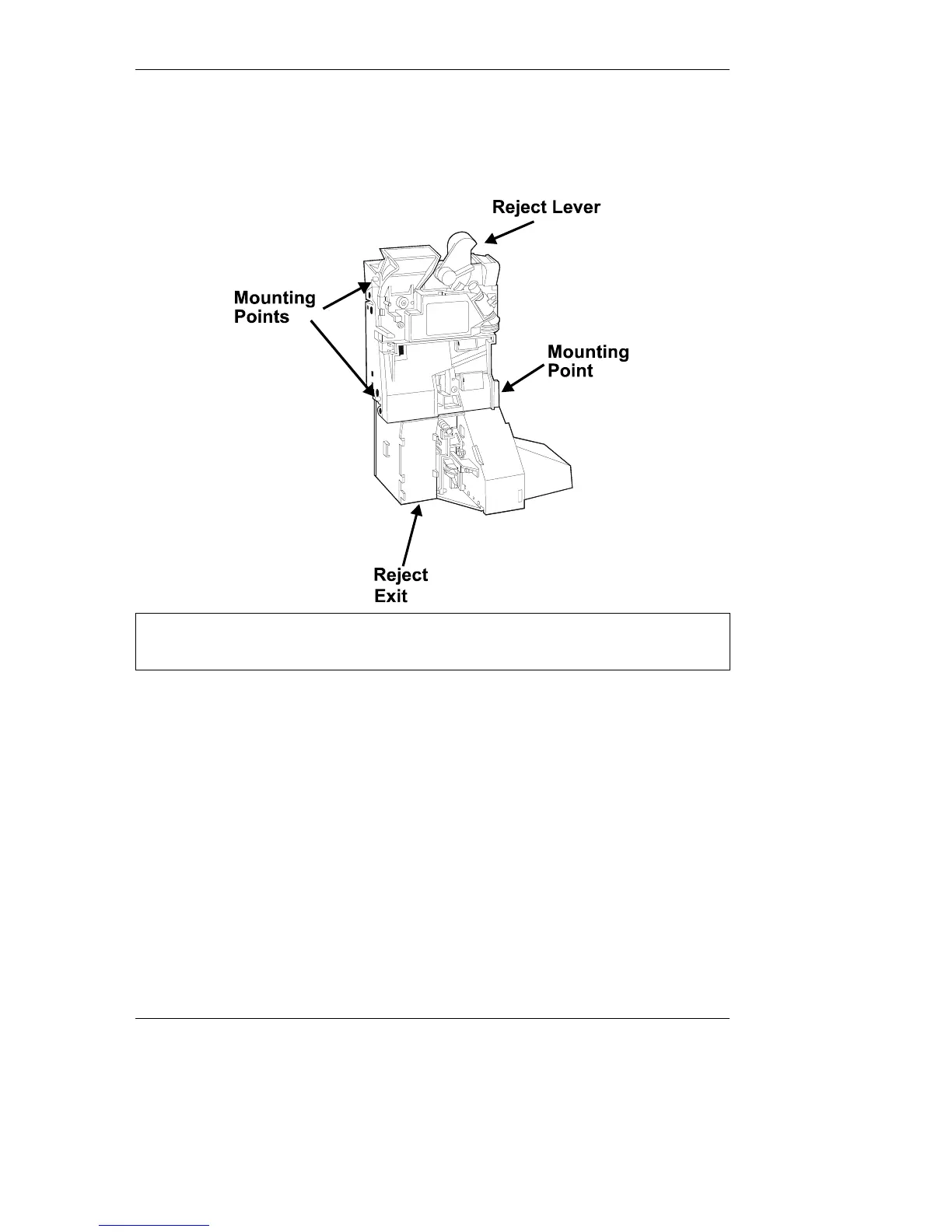

q The mounting points indicated must be firmly seated into the channel and a
gap of between 2-3 mm left between the reject lever and the reject arm from
the machine. This small gap will ensure that the validator lid is able to fully
close when the reject button on the machine has been pressed and released.
The two Y-chutes already referred to can both be used with the short channel
version, but care must be taken to ensure that the gap mentioned above is
maintained between the Y-chute reject arm link and the reject lever of the coin
mechanism.
©, Mars, Inc., 1998 7
CashFlow
®
126 and CashFlow
®
129 selectors User Guide
