Assembling a 22-Way Routing Plug
While the links are readily inserted into the routing plug by hand without specialist tools,
care is needed to ensure that they are fitted the correct way round, particularly with the
doide version, so that the barb in the pin engages with the recess in the plug. Having
inserted a link give it a gentle tug to ensure that it has engaged with the recess.

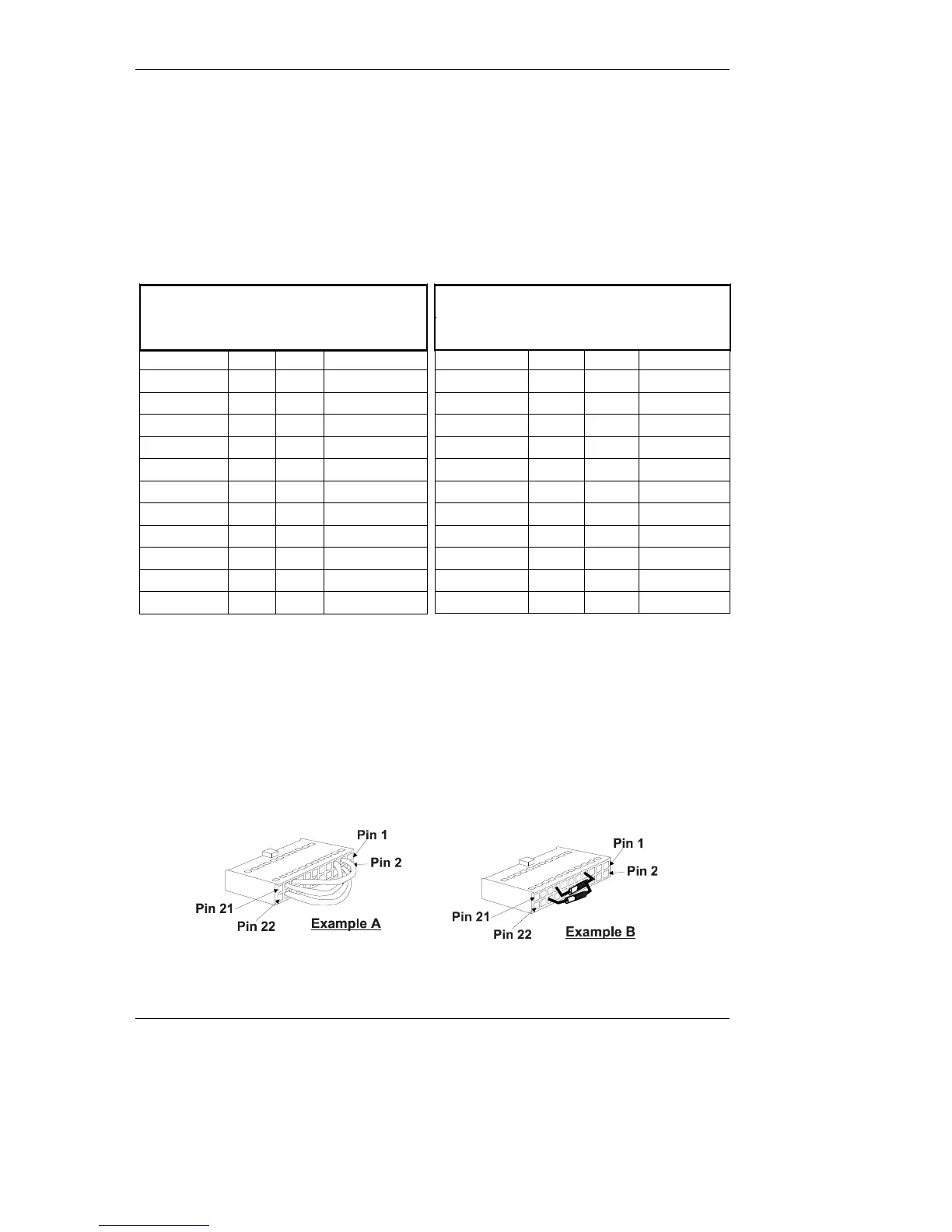

To assemble routing plugs which will route specified UK coins to the required exits
see the examples shown.
In example A Coin C (10P) is being directed to Exit D, Coin E (50P old) to Coin Exit C and
Coin F to Exit D.
Example B shows Coin B (Token) going to Exit B and Coin E (50p old) to Exit ‘b’.
©, Mars, Inc., 1998 13
CashFlow
®
126 and CashFlow
®
129 selectors User Guide
Route 712Route 7
Route 634Route 6
Route 556Route 5
Route 478Route 4
Route 3910Route 3
Route 21112Route 2
Route 11314Route 1
Coin A
15
16
Coin B
Coin C1718Coin D
Coin E1920Coin F
Coin G2122Coin H
FUNCTIONPINPINFUNCTION
129 Routing Plug
Pinouts and Functions
Exit B12Exit B
Exit D34Exit D
Exit C
5
6
Exit C
(Exit ‘b’)78(Exit ‘b’)
(Exit ‘a’)910(Exit ‘a’)
(Exit ‘c’)1112(Exit ‘c’)
(Exit ‘d’)1314(Exit ‘d’)
Coin A1516Coin B
Coin C1718Coin D
Coin E
19
20
Coin F
Coin G2122Coin H
FUNCTIONPINPINFUNCTION
126 Routing Plug
Pin outs and Functions
