Mars CASHFLOW 126 User Manual

Product Configuration -
Changing the machine output mode
To change the coin output interface to Fixed Binary Coded Output
(BCO) use these simple steps. For BCO mode set the rotary data switch
to position C , to D for Fixed Parallel mode and F for Automatic
mode.
v NOTE: The product will normally be supplied in Automatic mode. This
will automatically configure to most machines through the Mode Select
feature. Some gaming machines have pre-BACTA standard Binary code
software and in this case the coin mechanism should be set to fixed
Parallel mode.

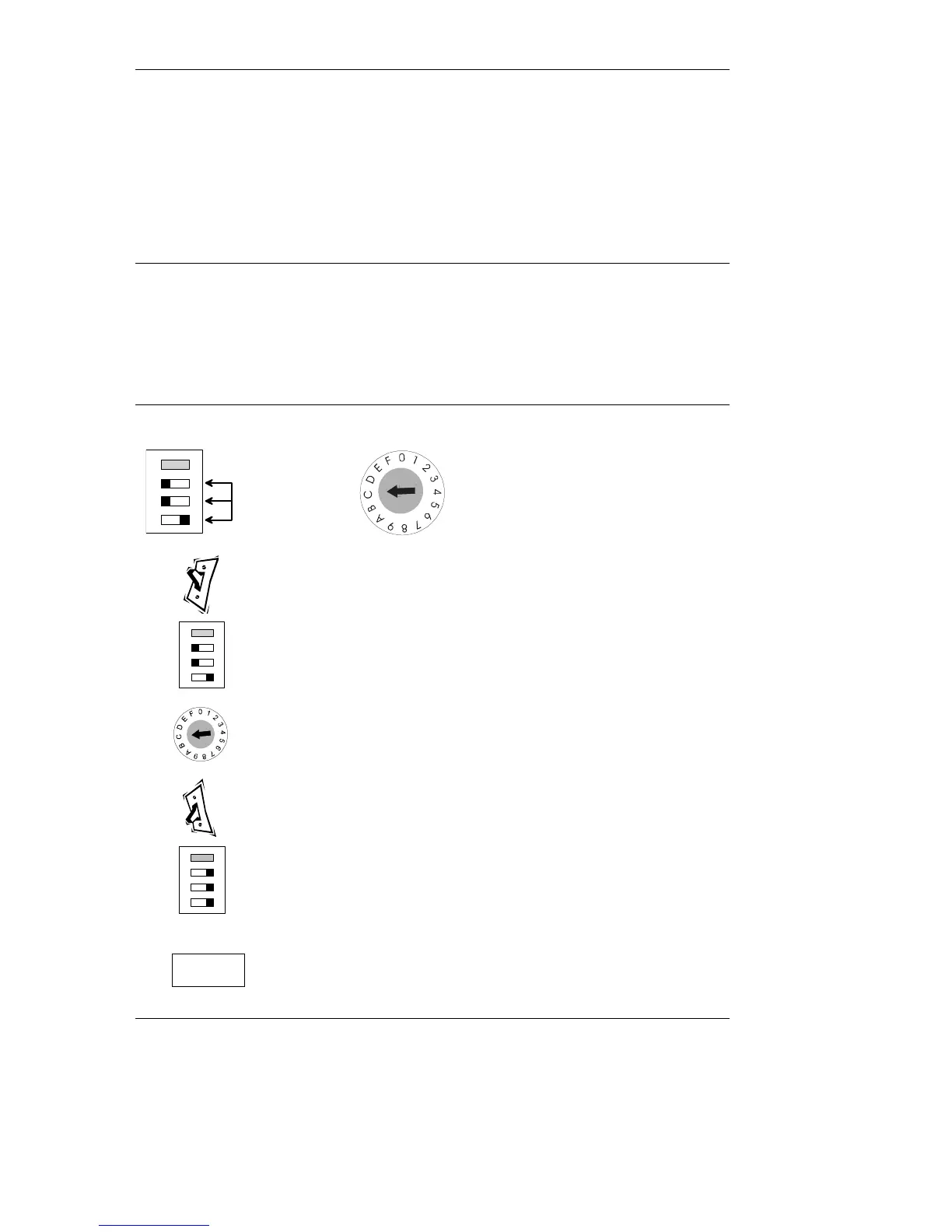

Example:- To set mode to Binary Coded Output
1. Switch Validator Power OFF.
2. Set 4 Way switches to Output Mode Teach.
3. Set Rotary Switch Dial to appropriate position.
(Position C in this example).
4. Switch Validator Power ON (LED will Flash).
5. Set switches 2, 3 & 4 to ON. (LED will stop
flashing and stay on).
Leave the Rotary Switch settings as they are.
6. Product is now ready for use with the chosen
machine interface.
©, Mars, Inc., 1998 23
CashFlow
®
126 and CashFlow
®
129 selectors User Guide
Position C = Fixed B.C.O. mode.
Position D = Fixed Parallel mode
Position F = Automatic mode
Set switches 2, 3 and 4
as shown here.
ON
1 2 3 4
ON
1 2 3 4
2 3 4
ON
1
END
