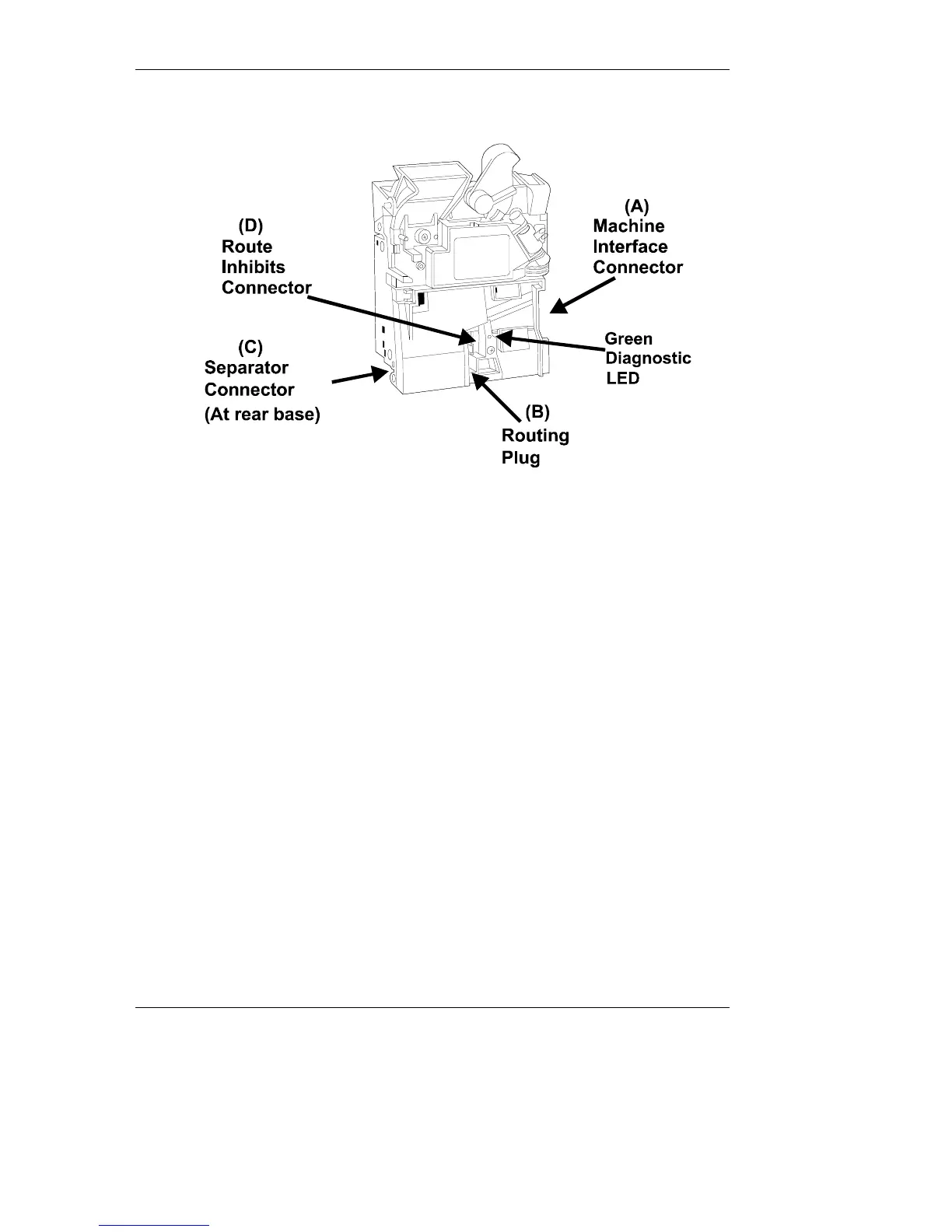

The electrical connections and interfaces to each variant of CashFlow
®
126 and
CashFlow
®
129 are identical, and are found in the same locations.
(A) Machine Interface - This provides power to the validator and carries the coin inhibit
signals from the machine and coin outputs to the machine.
(B) Routing Plug - This comprises a series of links fitted to a route plug housing and is
used to set up the primary coin exits and any specific overflow exits.
(C) Separator Connector - The separator interface connection must be made before
physically attaching the validator and separator together. The separator will direct
accepted coins/tokens to defined exits.
(D) Route Inhibits -This connector is used to signal that a particular exit has reached
“full” status. Subsequent coins will be diverted to their defined overflow exits.
©, Mars, Inc., 1998 5
CashFlow
®
126 and CashFlow
®
129 selectors User Guide
