VMV-402-SH Manual
www.marshall-usa.com 4

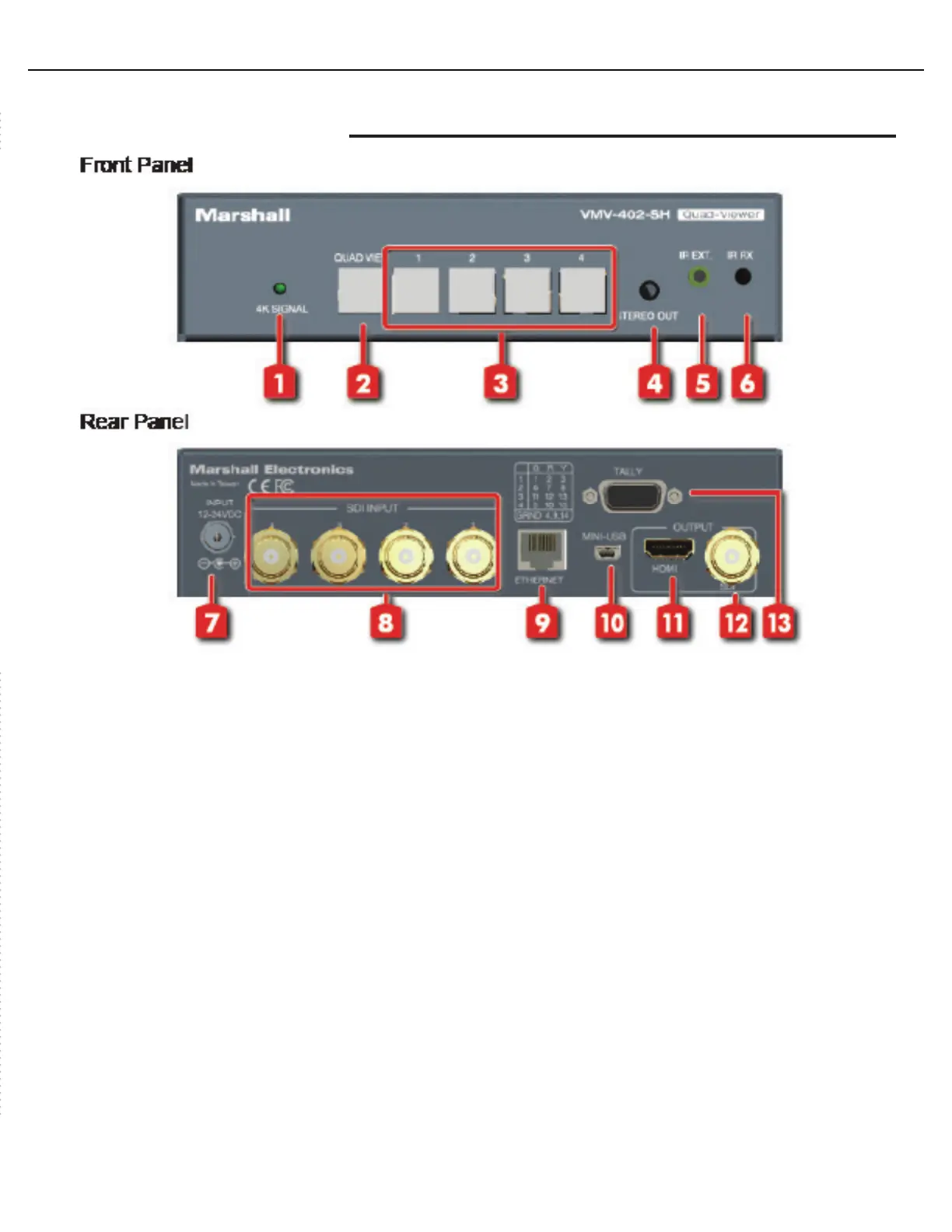

6. Panel Descriptions
1. 4K Signal LED: Lighted when output is set for 4K when HDMI output is set to UHD format
(HDMI output).
2. Quadview Button: Changes output to quad view mode.
3. 3. Input Select Buttons: Selects between sources. The button will illuminate when source is
selected.
4. Stereo out: Stereo audio output.
5. IR Extension: 3.5mm jack for IR extension cable.
6. IR Sensor: IR sensor for receiving commands from IR remote.
7. DC 24V Input: Connects to the +12V or +24V DC power supply unit.
8. Source 1-4: 3G-SDI inputs.
9. Ethernet: Ethernet control port.
10. Mini-USB Input: USB control / update port.
11. HDMI Output: Program Out.
12. SDI Output: Program Out.
13. Tally GPI connector
