Marshall Amplification VMV-402-SH User Manual

5
7. Hardware Installation

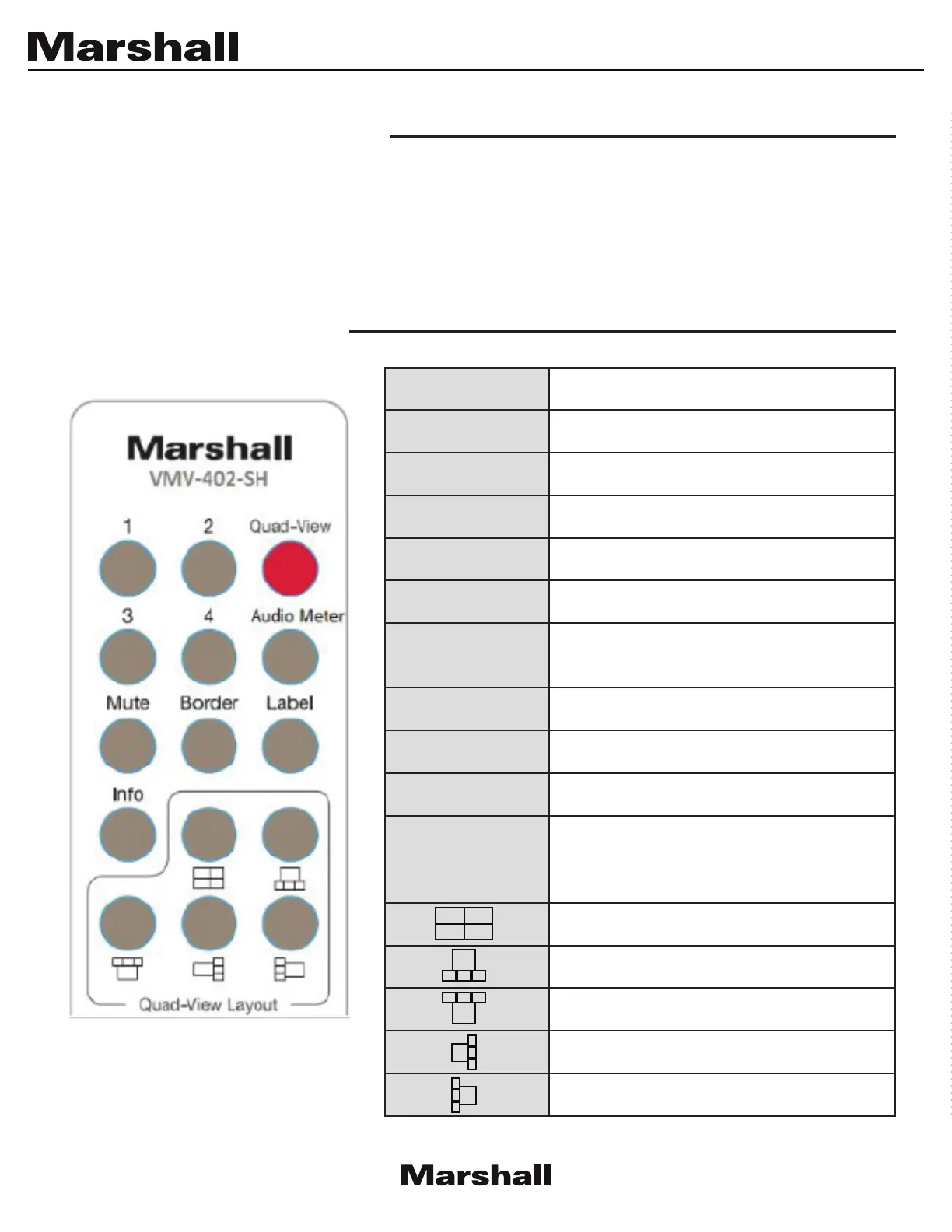

8. IR Remote Control
1. Connect display, recorder, etc. to SDI or HDMI output of the VMV-402-SH
2. Connect the SDI input sources to the inputs of VMV-402-SH
3. Securely attach the provided supply unit to the locking power jack
4. Use IR remote or computer software to switch between input channels
Button
Function
1
SDI input 1
2
SDI input 2
3
SDI input 3
4
SDI input 4
Quad-View
Select quad mode output
Audio Meter
Toggles audio meters on/off
(Not on quad output)
Mute
Toggles audio pass through on/off
Border
Toggles quad mode border on/off
Label
Toggles quad mode labels on/off
Info
Show current status on program
output Hold 5 seconds to change
DHCP mode
Quad Layout 1
Quad Layout 2
Quad Layout 3
Quad Layout 4
Quad Layout 5
