Marshall Electronics V-LCD171MD User Manual

11
Pixel-to-Pixel
Use this seng to enable Pixel-to-Pixel mode.
This mode bypasses the monitor’s internal scaling funcon and displays images in their nave resoluon and aspect rao, with a
one-to-one mapping ofi ncoming image pixels to screen pixels:
• For incoming formats smaller than the nave resoluon o he screen (or selected aspect rao), the image will be
displayed in the center o he screen using only the necessary LCD pixels. For example, 720p images will occupy exactly 1280x720
pixels in the
center o he screen. The surrounding screen area will be black.
DSLR Preset
Use the DSLR Preset opon to reduce the visibility of on screen indicators shown with popular DSLR cameras. The available
opons are :
• NK 16:9
• NK 3:2
• CN 16:9
• CN 3:2

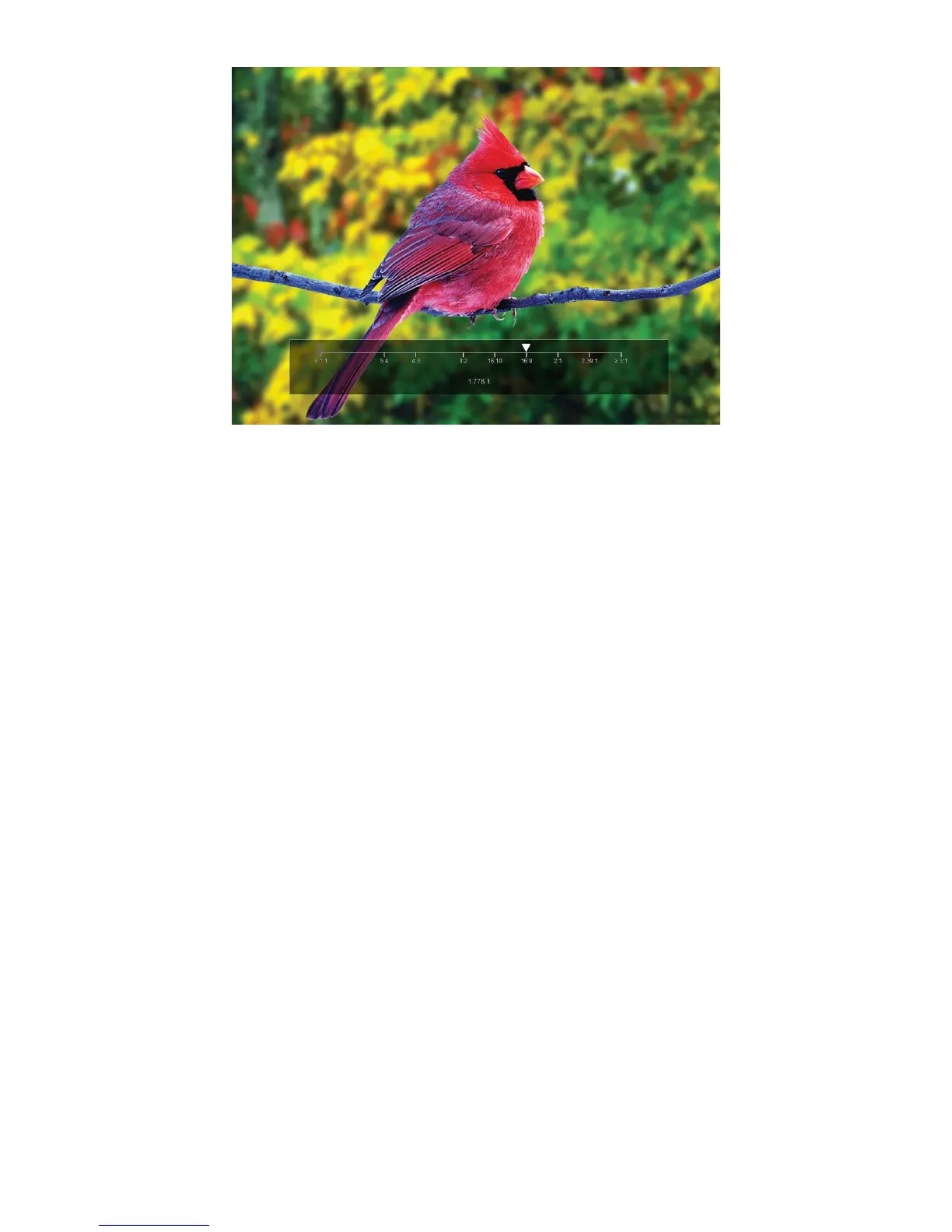

Custom Aspect Ratio selection

Marshall Electronics V-LCD171MD Specifications

General

Brand	Marshall Electronics
Model	V-LCD171MD
Category	Monitor
Language	English
