Transparency (Opacity)
Use this seng to selec he transparency o he marker background. Choose between 0% (black) , 25%, 50%, 75% and
100% (see through) transparency.
Filters Submenu

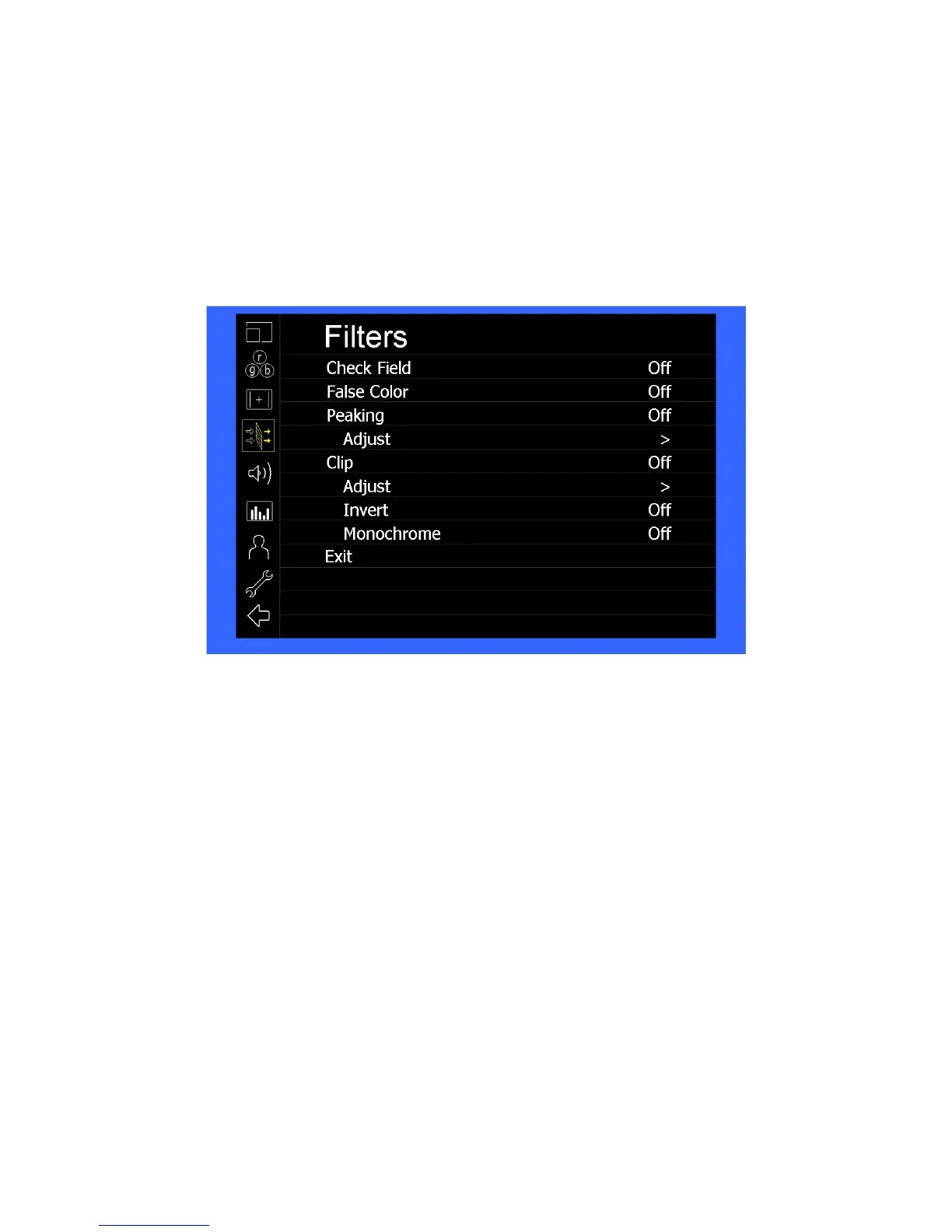

Use the Filters Submenu to enable various modes.
Check Field
Use the check field modes for monitor calibraon or to analyze individual color components of an image. In Monochrome
mode, all color is disabled and only a grayscale image is shown. In Blue, Green, and Red check field modes, only the selected
color will be shown.
Use the following procedure when calibrang the monitor to SMPTE color bars with the following procedure:
1. Allow the monitor to warm up for at least 5-10 minutes.
2. Display SMPTE split-field color bars on the monitor using an
external source.
3. Enable Mo nochrome mode.
4. Locate the pluge paern (super black, black, and gray bars) a he lower-right corner o he screen. Adjus he
Brightness knob unl there is no visible difference between the super black and black bars, bu he gray bar is sll
visible.
5. Adjus he Contrast knob unl an even grayscale appears along the top bars.
6. Disable Monochrome mode.
