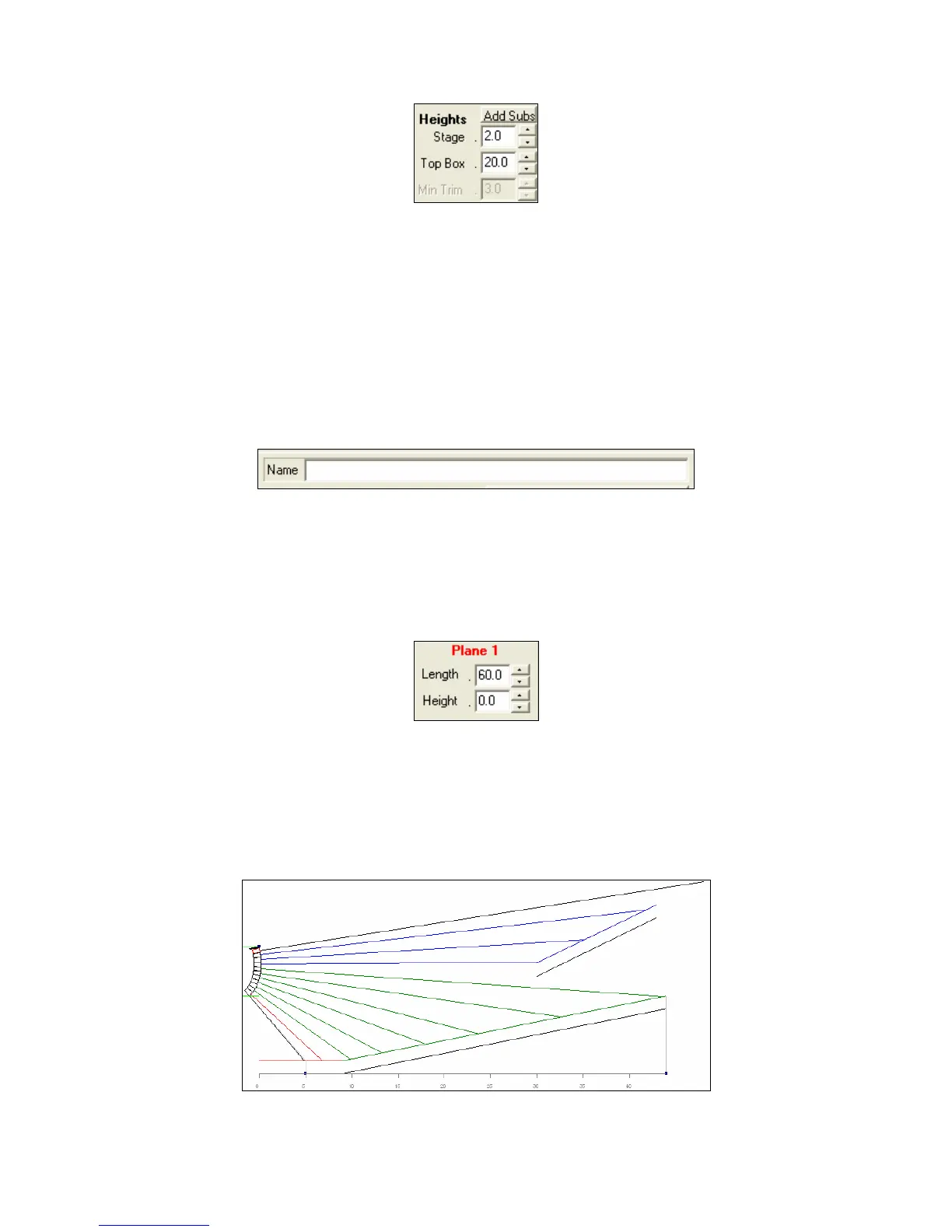

Set Stage Height to the vertical distance from the first plane to the floor of the stage.
The Add Subs button allows the stack to be mounted on popular Martin Audio sub-
woofers – with the sub-woofers either on the stage or stacked directly on the floor.
Note: If Stage Height is below the ear level of the first plane then the ear height
becomes equal to the stage height.
5.5.10 Venue name
Enter the name of the venue. Previously saved venue names will appear here.
5.5.11 Editing ViewPoint
tm
designs
Once the initial venue and array parameters have been entered and the Design button
has been clicked, venue and array data, can only be edited by clicking on the up or
down symbols next to the appropriate data box.
Whenever a value is altered the software will automatically recalculate splay angles.
5.5.12 Frequently asked questions
Q. Why is the top cabinet overshooting the furthest seat?
