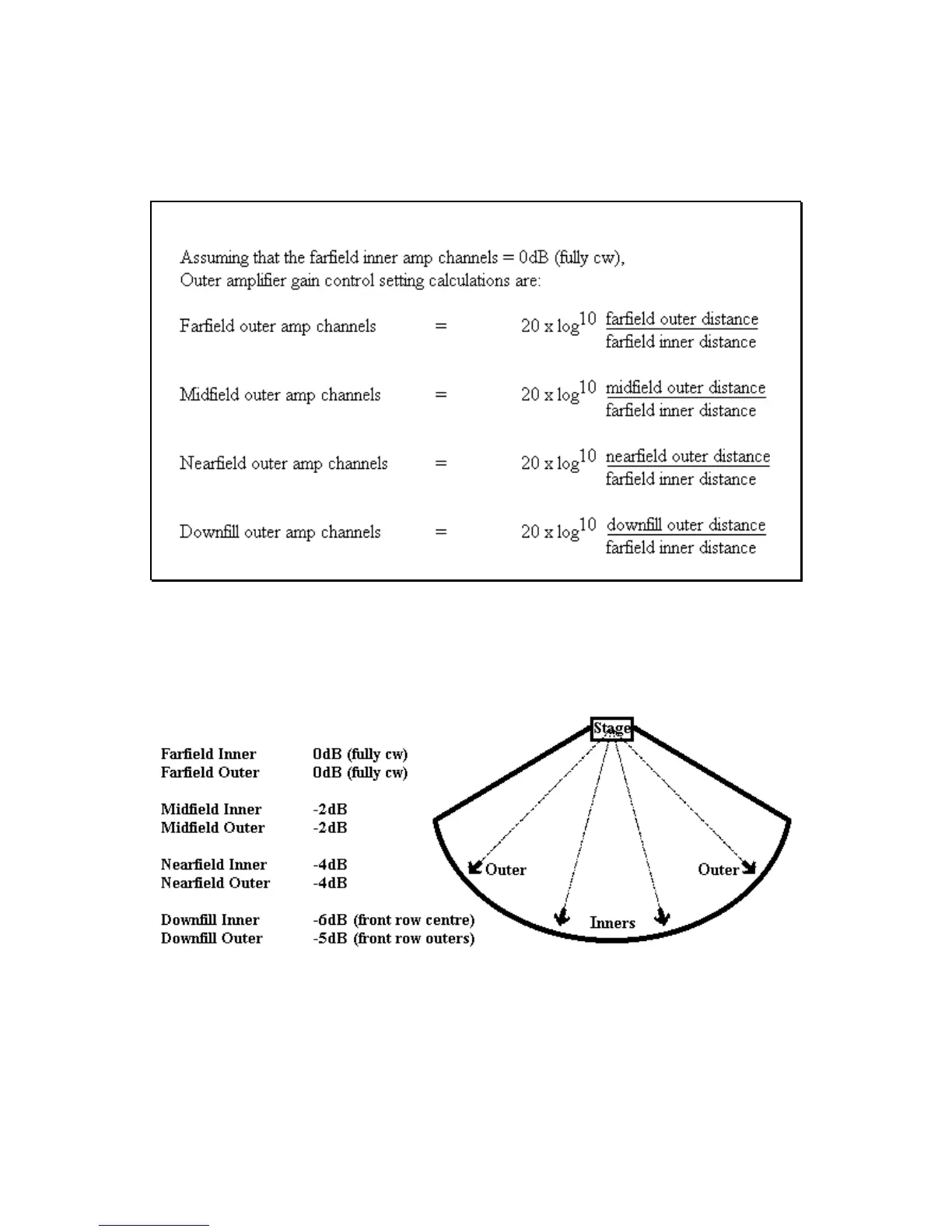

Initial outer level settings
Similarly, initial outer level settings can be calculated for each row as follows:
Again, the farfield inner amplifier setting (0dB) is used as a reference...
In a fairly small, wide, fan-shaped venue with heavily raked seating, we may require
the following amplifier channel settings:
The attenuation rate shown here is 2dB per cluster row. The actual rate of vertical
attenuation will depend on the cluster height which in turn will depend on the rake of
the seats. High clusters are further from the audience at the front and require less
nearfield & downfill attenuation. The lower the cluster, the greater the required
attenuation rate.
All material © 2007. Martin Audio Ltd. Subject to change without notice.
