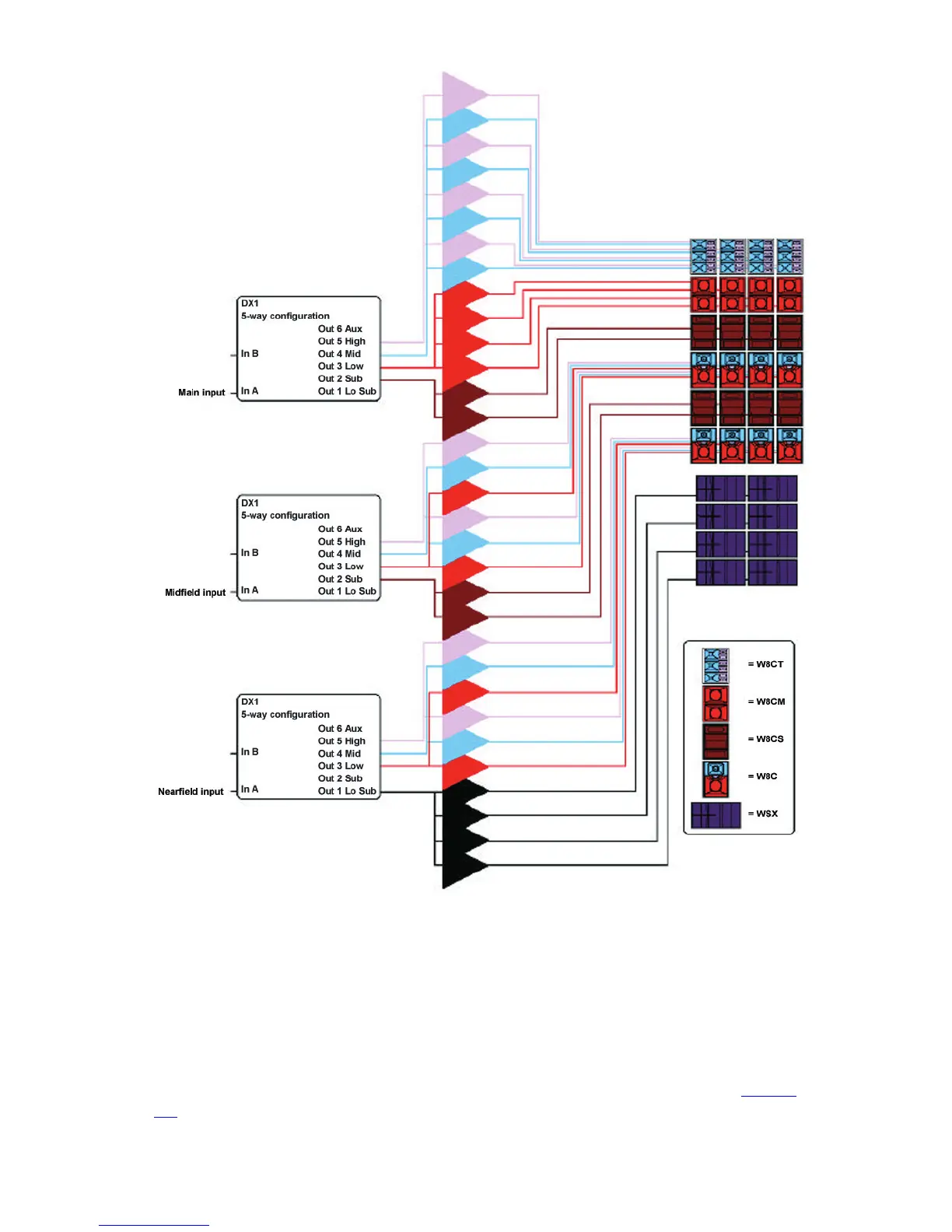

The above schematic shows a typical system incorporating a row of Wavefront
Longthrow W8CT & W8CM elements with Wavefront Compact W8Cs and W8CS’
crossed over as flown mid-bass sections to augment floor stacked WSX subwoofers.
The system uses Martin Audio DX1 Loudspeaker Management Systems configured
as 5-way crossovers. Martin Audio can provide factory set configuration cards for a
variety of off-the-shelf crossover systems (contact your dealer or Martin Audio for
further information) but, the Martin Audio DX1 Loudspeaker Management System is
strongly recommended for all new Wavefront Longthrow system designs. See Section
1.5 for DX1 details.
All material © 2007. Martin Audio Ltd. Subject to change without notice.
