Martin M2PC - Connect New Dongle Combination; Reconnect Cable Adapter and Front Panel

www.martin.com • Olof Palmes Allé 18 • DK-8200 Aarhus N • Denmark
Tel. (+45) 8740 0000 • Fax (+45) 8740 0010

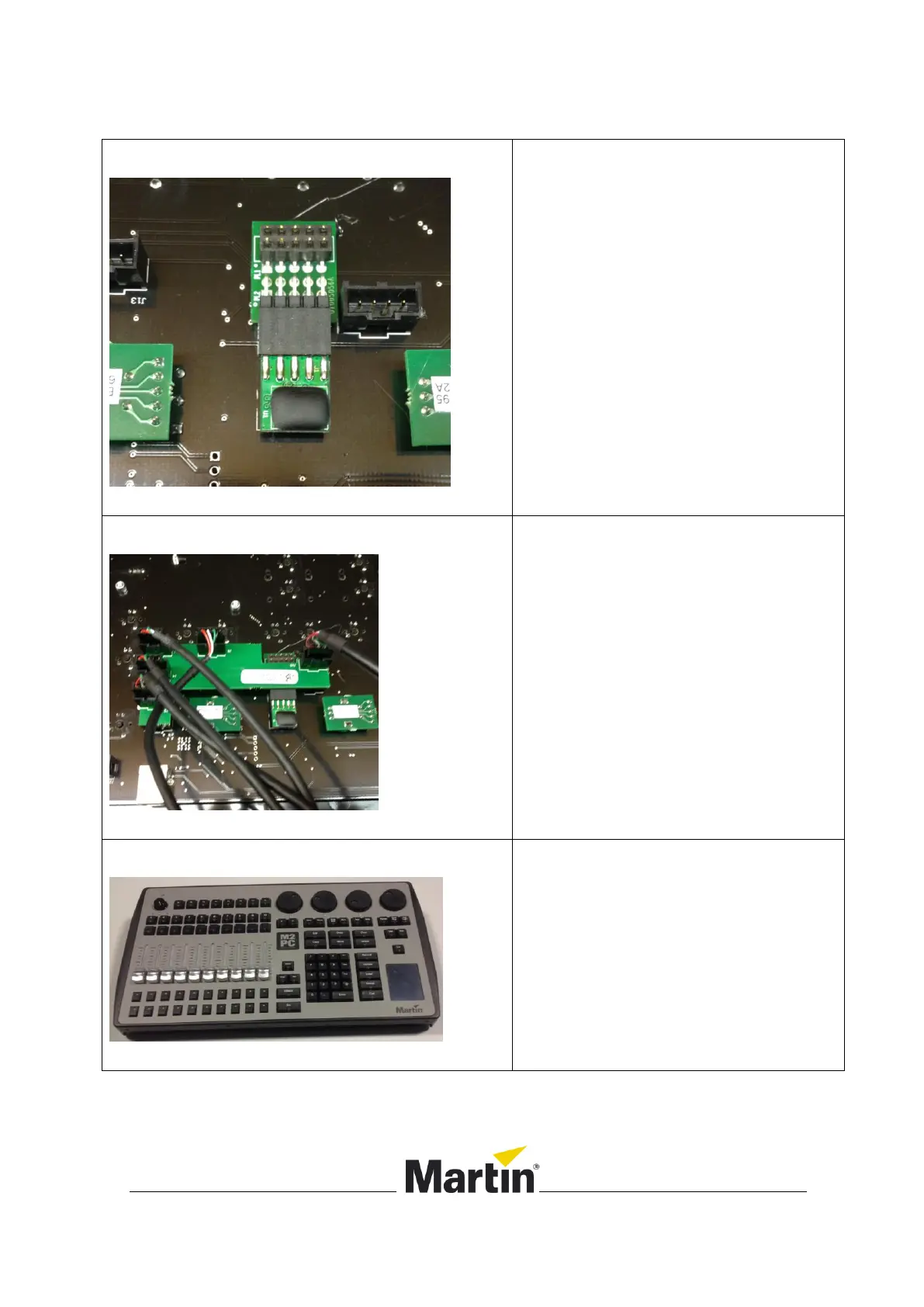

8. Connect the new dongle
combination on the front panel
PCB like in the picture.
9. Reconnect the cable adapter PCB
10. Put the front panel back on the
bottom housing.
Warning: Make sure that no cables are
pinched between front panel and bottom
housing.
