Martin Professional A/S • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark • Phone: +45 87 40 00 00 • Fax: +45 87 40 00 10 • Internet: www.martin.com

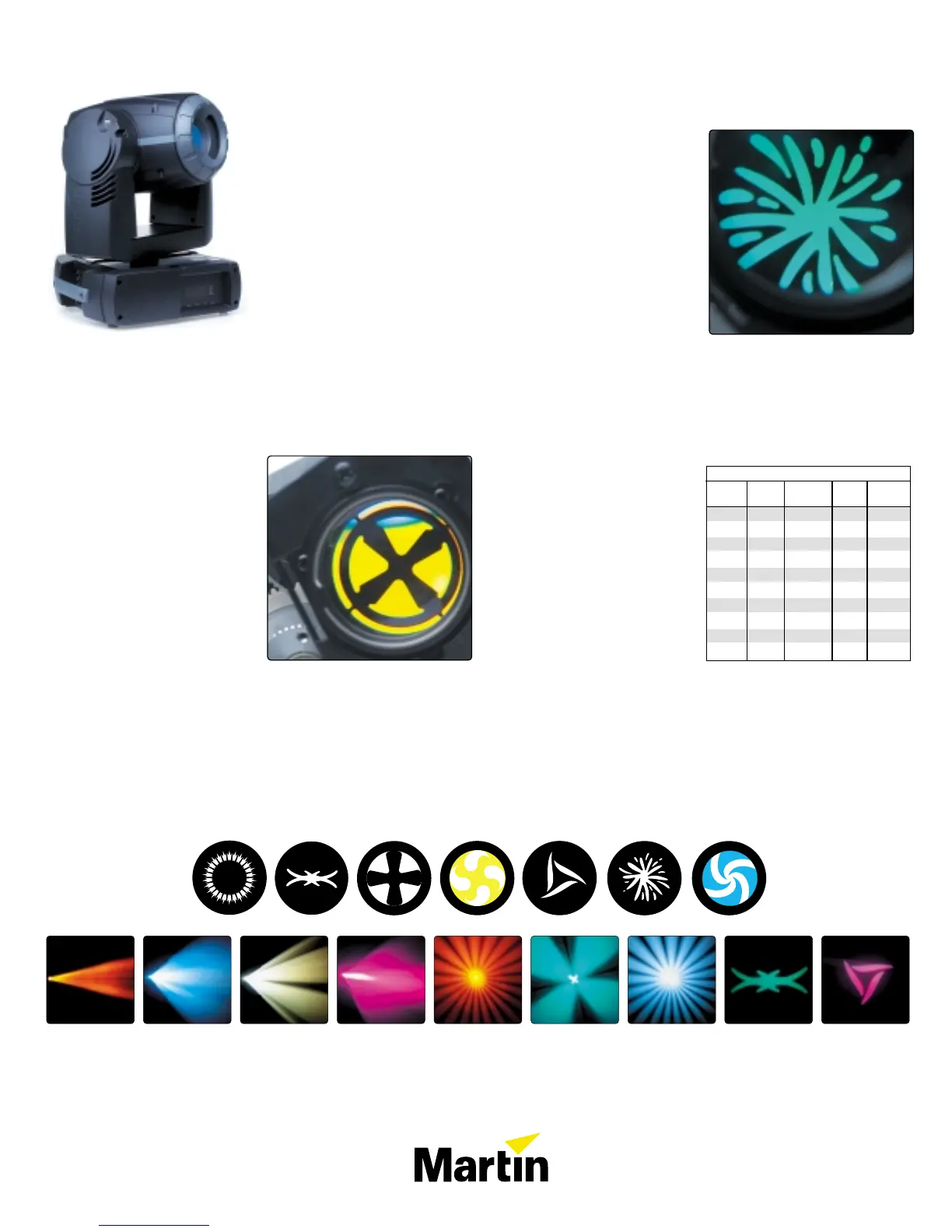

Physical
Base length: 375 mm (14.8 in)
Base width: 315 mm (12.4 in)
Yoke width: 393 mm (15.5 in)
Height: 538 mm (21.2 in)
Weight: 22.4 kg (49 lbs)
AC power
Operating range: 100 - 250 V, 50/60 Hz
AC input: 3-prong IEC male socket
Photometrics
Light output: 4618 lumens
Field angle: 20.6°
Measurement conditions: 230 V, 50 Hz;
no effects applied
Measurement source: Philips MSD 250/2
Thermal
Maximum ambient temperature (Ta)
40°C (104°F)
Maximum surface temperature
120° C (248° F)
Installation
Orientation any
Minimum distance to flammable
materials 0.1 m (4 in)
Minimum distance to illuminated
surfaces 0.3 m (12 in)
Fuses
Main fuse 6.3 A / 250 V, time-delay
Fuse F1 6.3 A / 250 V, time-delay
Fuse F2 2.0 A / 250 V, time-delay
Lamps
Philips MSD 250/2 2000 hr,
6500K, 250 W, 72 lm/W
Osram HSD 250 2000 hr,
6000K, 250 W, 68 lm/W
Philips MSD 200 2000 hr,
5600K, 200 W, 67 lm/W
Gobos
Outside diameter: 22.5 mm + 0/- 0.3 mm
(0.886 in. +0/- 0.012 in)
Maximum image diameter: 17 mm (0.669 in)
Maximum thickness: 1.8 mm (0.071 in)
Glass type: high temperature
Borofloat or better
Glass coating: dichroic or enhanced
aluminum
Metal: aluminum (steel okay for short use)
Control and Programming
Data input: locking 3-pin and 5-pin
XLR male sockets
Data output: locking 3-pin and 5-pin
XLR female sockets
Data pinout: pin 1 shield, pin 2 cold (-),
pin 3 hot (+)
Receiver: Opto-isolated RS-485
Protocols: USITT DMX-512 (1990)
DMX Channels: 14/17
Design standards
Canadian safety: CSA C22.2 NO 166
EU: EMC EN 50 081-1, EN 50 082-1
EU: safety EN 60598-1, EN 60598-2-17
US: safety ANSI/UL 1573
Included items
Omega bracket, MAC 250/300 1/4-turn
XLR cable, 5 m, black, 3-pin
Mains cable, 3 m, IEC 3-pin
User manual
Ordering information
MAC 250 Krypton: P/N 90225600
Accessories
G-clamp: P/N 91602003
Half-coupler clamp: P/N 91602005
©April 2003 Martin Professional A/S Specifications are subject to change without notice
Magnetic ballast
Volt Hz Watt Amp power
factor
100 V 50 Hz 319 W 3.8 A PF 0.8
100 V 60 Hz 317 W 3.4 A PF 0.9
120 V 50 Hz 320 W 2.9 A PF 0.9
120 V 60 Hz 314 W 2.7 A PF 1.0
208 V 50 Hz 320 W 1.9 A PF 0.8
208 V 60 Hz 319 W 1.7 A PF 0.9
230 V 50 Hz 323 W 1.6 A PF 0.9
230 V 60 Hz 326 W 1.5 A PF 1.0
250 V 50 Hz 326 W 1.5 A PF 0.9
250 V 60 Hz 325 W 1.4 A PF 1.0
Maximum power and current
