20 MAC Encore™ Performance Safety and Installation Manual

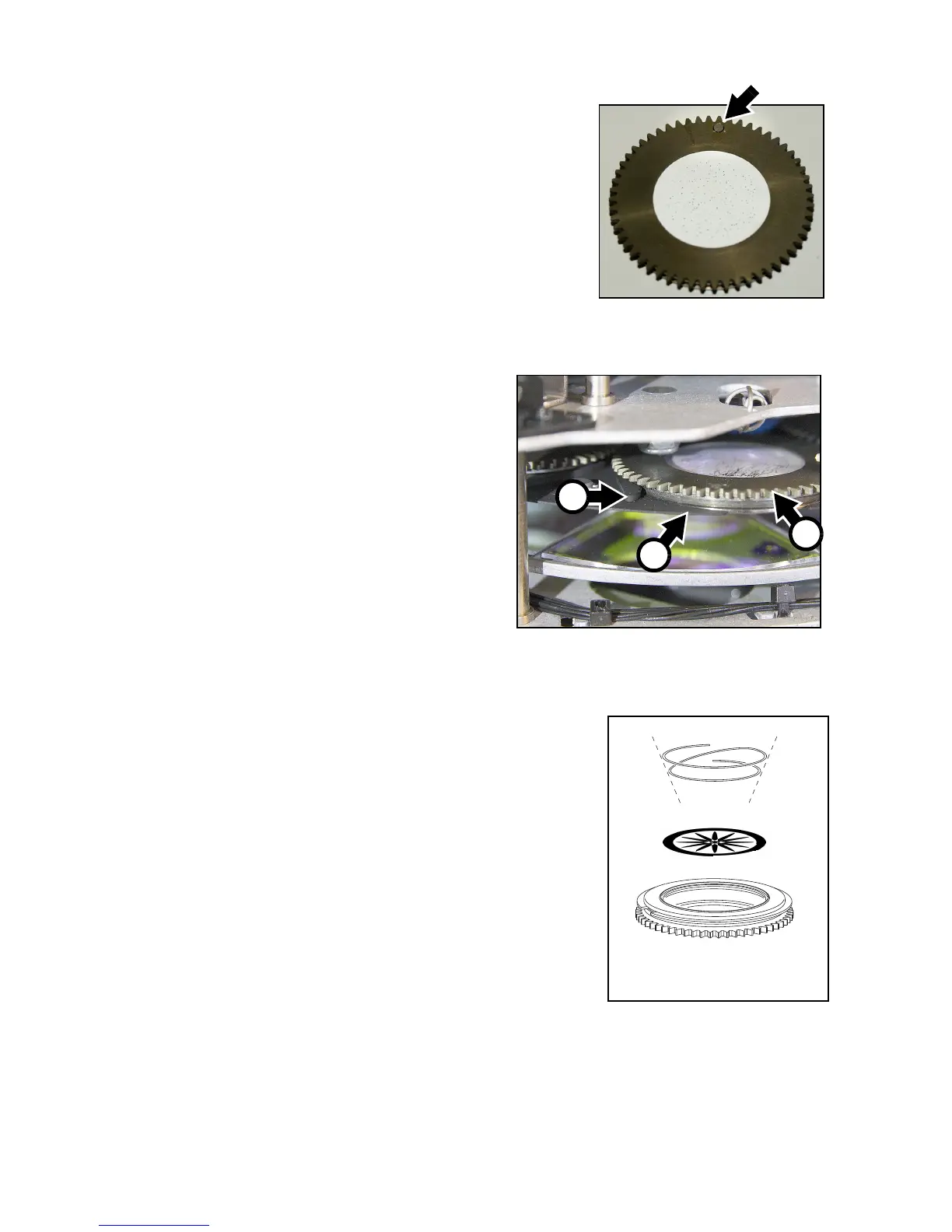

5. See Figure 15. Rotate the goboholder until its magnet
(arrowed) lines up with a reference point that you choose on
the module chassis. Remove and insert any gobos you
replace one by one, with the goboholder magnets lined up
with your reference point, and avoid rotating the gobo wheel
while a gobo is removed. This will keep gobos in the
orientation they were designed for and avoid the need to
reprogram the controller because a gobo orientation has
changed during service.
6. See Figure 16. Grasp the goboholder A by its
edge and pull it out of its clip B, ensuring that
it clears the surrounding plate C in the gobo
wheel to remove it from the wheel. You may
need to press gently down on the plate C
while you pull the gobo free.
7. Note that fused glass gobos such as
Limbo/Crystal are glued into the goboholder
and cannot be removed from it. If you need to
replace a fused glass gobo, you must replace
the entire goboholder. Other types of glass
gobo are held in their holders by springs and
can be removed from the holders as
described below.
8. See Figure 17, With a small screwdriver or similar, unhook the
end of the gobo spring furthest from the gobo and pull out the
spring. Drop the gobo out of the holder onto a clean, soft
surface.
9. Insert the new gobo in the holder with that must face towards
the lamp – the more reflective side – facing upwards towards the
spring (see Figure 17 and Figure 13).
