Service and maintenance 21

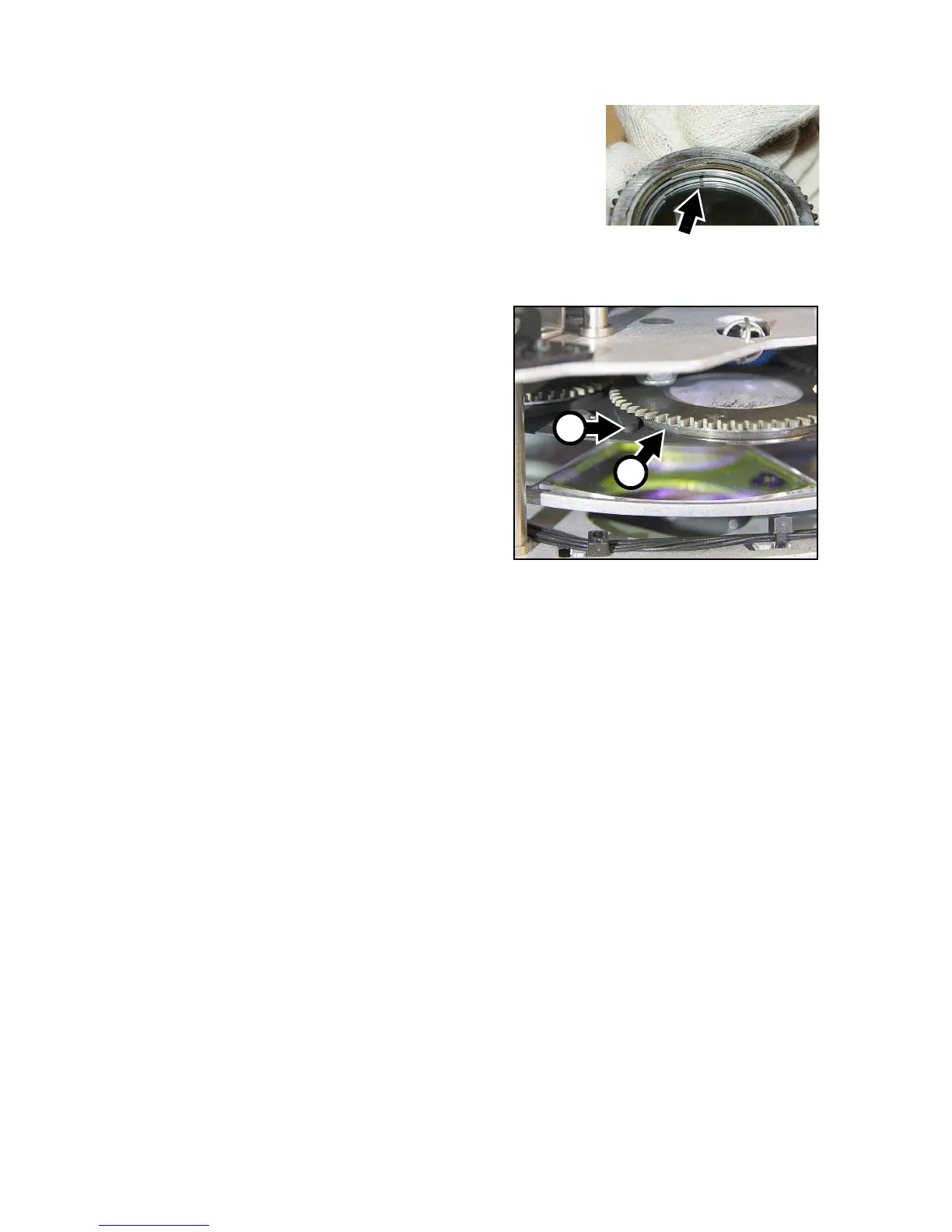

10. See Figure 18. Rotate the gobo in its holder if necessary to
line up the alignment marks (arrowed) in the gobo and
goboholder.
11. Insert the spring with the narrow end against the gobo, as
shown in Figure 17. To identify the narrow end, press the
spring flat: the narrow end is on the inside. Push the wide end
of the spring in under the lip of the holder.
12. Check that the gobo is seated flush against the holder. Press
the spring as flat as possible against the back of the gobo.
13. See Figure 19. Push the goboholder back
into its clip so that the jaws A of the clip
engage in the groove B around the
goboholder and the magnet lines up with your
reference point. Rotate the goboholder with a
finger to check that it is correctly held in the
clip and that the goboholder teeth mesh
correctly in the teeth of the actuation cog in
the center of the gobo wheel.
14. If necessary, continue replacing gobos one
by one as described above.
15. If no further service work is to be carried out,
reinstall the module and head cover as
described in “Access to the multi-module” on
page 15 and “Access to the head” on
page 13. Release the tilt lock before
reapplying power.
