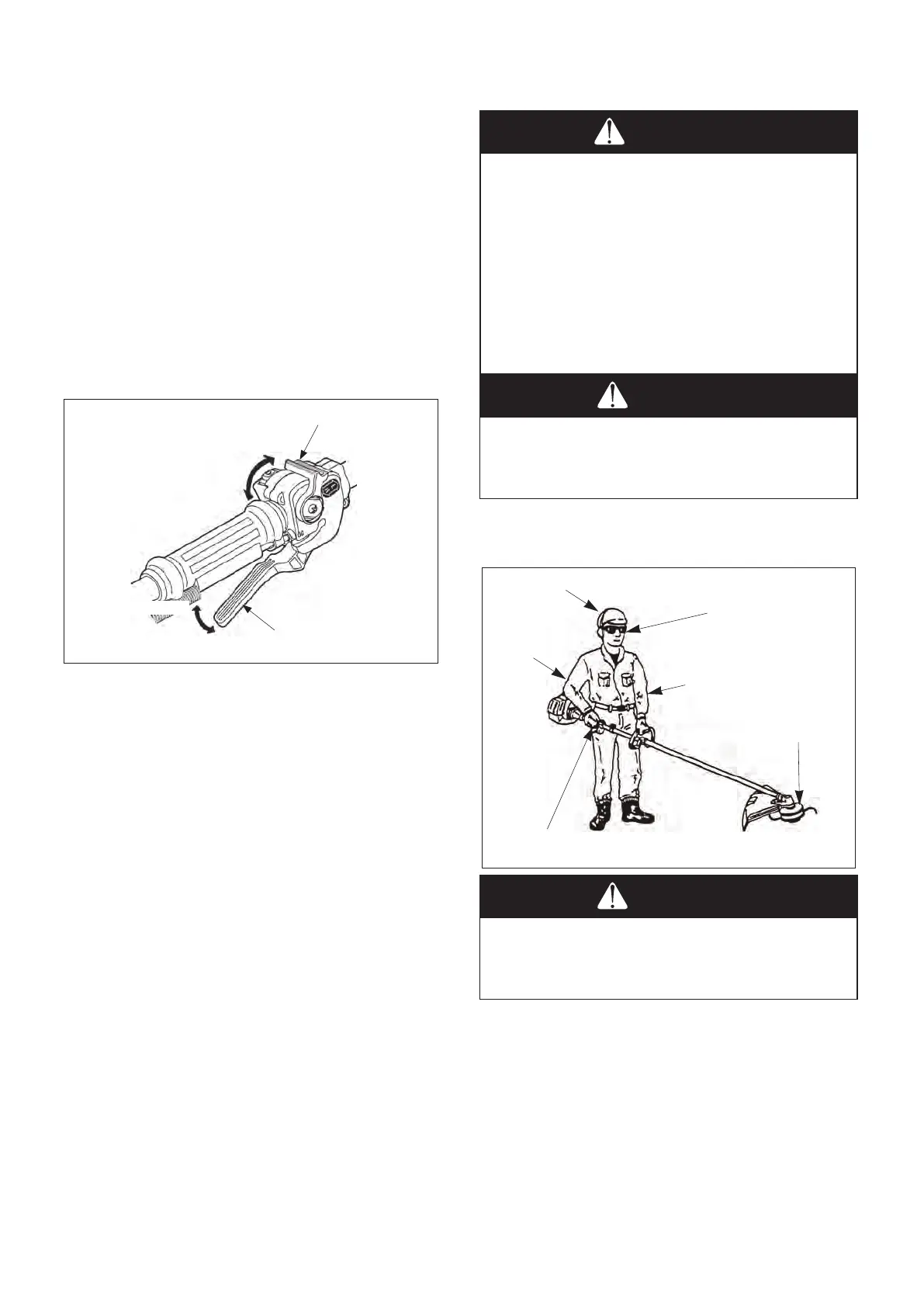

Instruction of the throttle trigger
Start the blade rotation
1. Grasp the throttle lever.
2. Move the control lever to high speed side slowly.
3. Then engine speed increase gradually, and the
blade starts rotation.
4. Adjust the blade rotational speed by the control
lever.
Note: Engine speed does not increase by
grasping the throttle lever If the control lever is
positioned at low speed side fully.
Stop the blade rotation
1. The engine speed will down to idling by moving
the control lever to low speed position fully, or
releasing the throttle lever.
2. If you did not change the control lever position,
engine speed become to the original adjusted
speed when grasp the throttle lever again.
Operation
Trimmer Operating Position
Before using the Trimmer, check the following:
1. Make sure the 3 mm hex wrench has been
removed from the gearcase and boss adapter
before you star the engine.
2. The Trimmer should be on the operator’s right side.
3. The operator’s right hand should be holding the
shaft grip, with his or her fingers on the throttle
trigger. The right arm should be slightly bent.
WARNING
POTENTIAL HAZARD
• Foreign objects can be thrown by
Trimmer/Brushcutter.
WHAT CAN HAPPEN
• Contact with thrown objects can cause
personal injury.
HOW TO AVOID THE HAZARD
• Never operate the Trimmer/Brushcutter
without the debris shield in place.
CAUTION
• Read the Safety instructions on US-7
concerning proper use of the Trimmer/
Brushcutter.
Hearing Protection
Hand Holding Throttle Grip,
Fingers on Throttle Trigger
Trimmer Head Near
and Parallel to Ground
Left Arm Fully Extended,
Hand Holding Loop Handle
Right Arm
Slightly Bent
Eye Protection
CAUTION
• Always wear gloves and protective cloth-
ing when operating the Trimmer/
B
rushcutter.
Throttle Lever
L:
Low speed
H:
High speed
Blade Rotate
Blade Stop
Control Lever
