B43, B43R, BF43R, B50R, BF50R

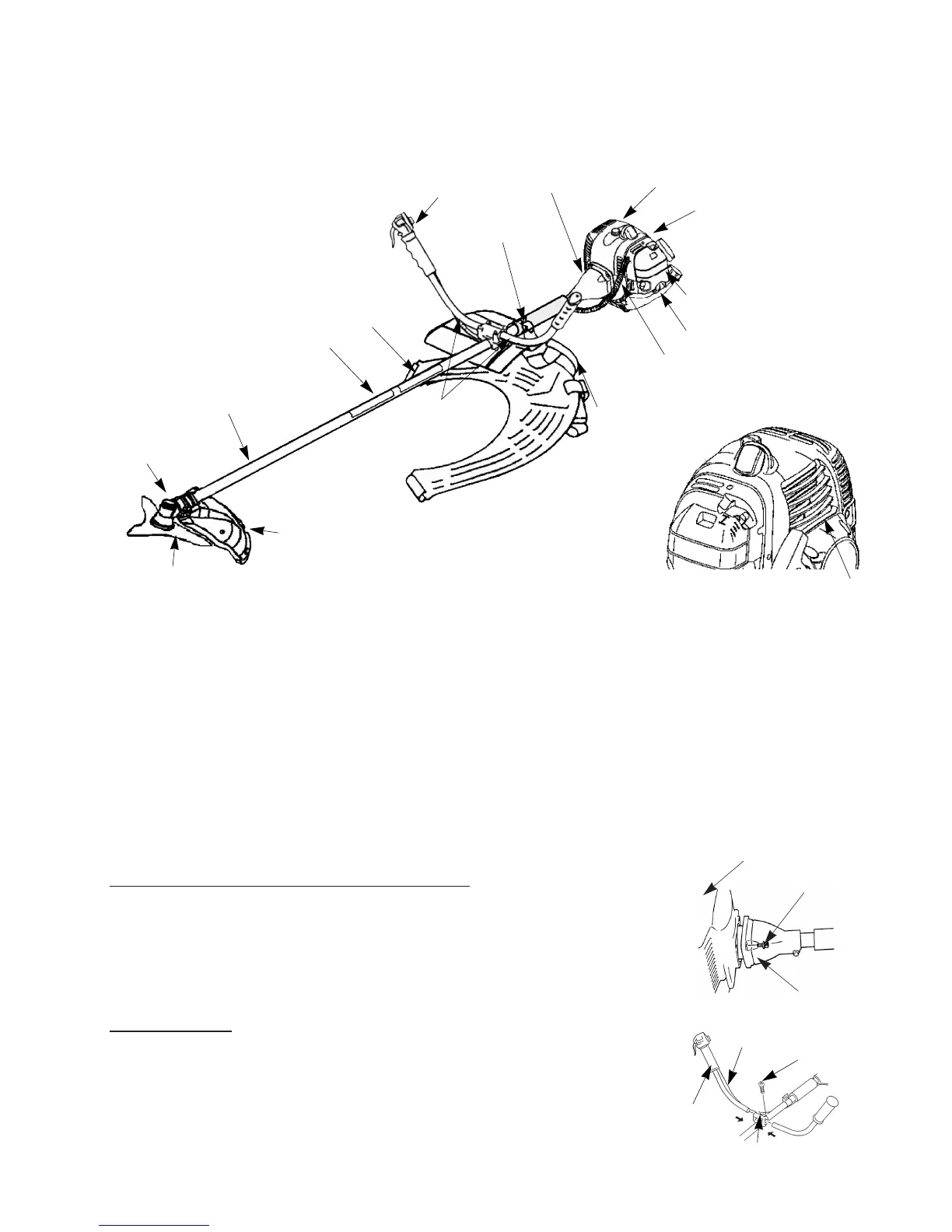

Product Description
11. Gearcase
12. Shaft Assembly
13. Safety Decal
14. Model Name
15. Attachment Ring for Shoulder Harness
16. Throttle Trigger and Stop Switch
17. Handlebar
18. Clutch Drum Housing
19. Engine
10. Air Filter
11. Fuel Tank
12. Throttle Cable and Stop Switch Wires
13. Debris Shield
14. Cutting Blade
15. Shoulder Harness
16. Serial Number (on rear of engine)
1
2
4
7
6
13
11
10
5
8
9
14
16
15
12
3
16
ASSEMBLY INSTRUCTIONS
ENGINE AND DRIVESHAFT ASSEMBLY
Attach the clutch drum housing to the engine using the four screws.
HANDLEBAR
1. Loosen the four screws on the top of the clamp bracket.
2. Insert the left and right handle bars into the clamp bracket.
Engine
Screw (4)
Clutch Drum Housing
Screws (4)
Bullhorn
Handle
Clamp Bracket
Stop Switch Wires/Throttle
Cable
To Next Page
