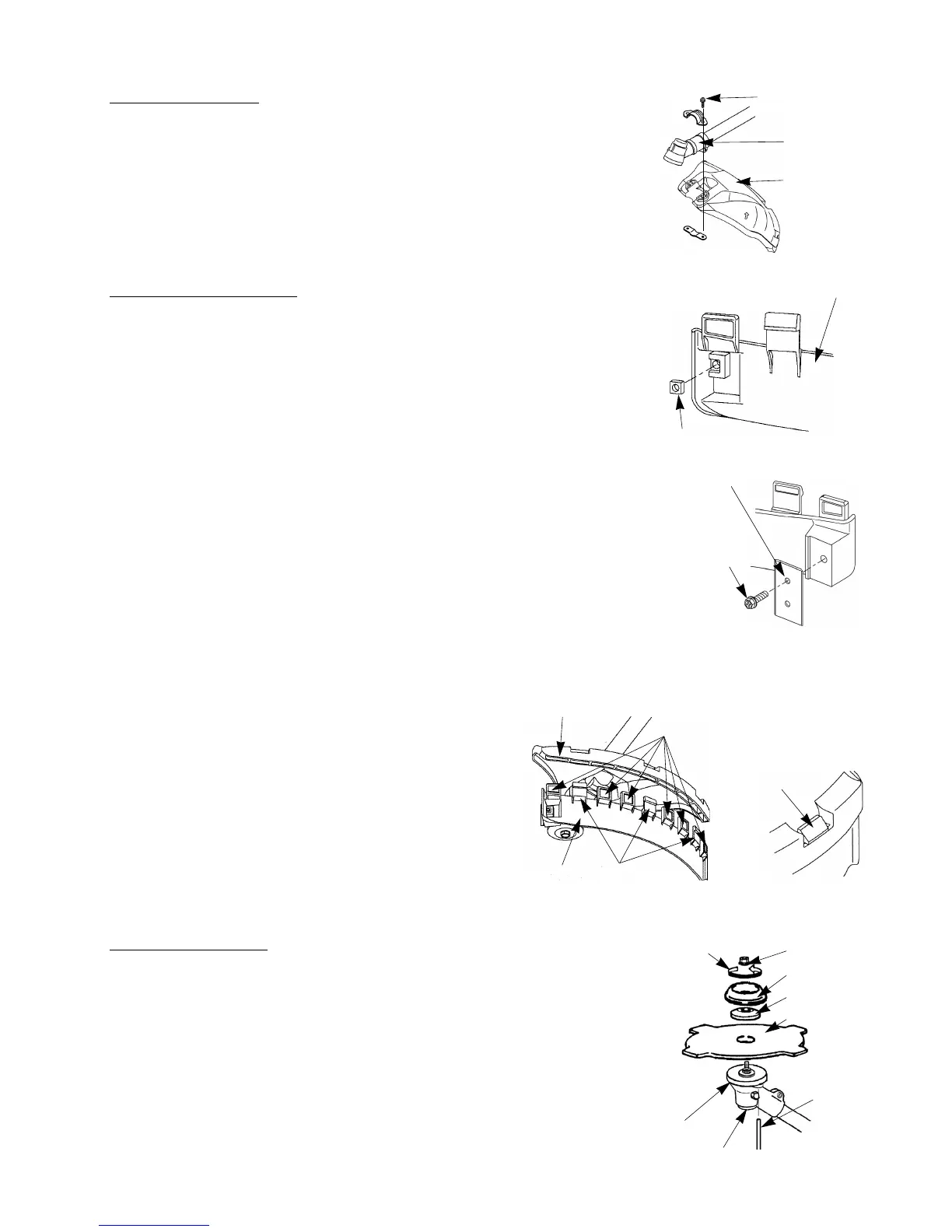

INSTALLING DEBRIS SHIELD
DEBRIS SHIELD
Attach the debris shield to the gearcase with the two M6 x 30 screws as
shown on Fig. 1.
SHIELD EXTENSION
(Install the string cutoff blade and shield extension to the debris shield.)
1. Insert the square nut into shield extension as shown on Fig. 2.
2. Attach the String Cutoff Blade to shield extension using M5 x 20 Screw,
locking with square nut (on Fig.2) as shown on Fig. 3 .
3. Enter the guide in the slot of debris shield on Fig. 4. Make sure place the
three hooks into the position on the shield as shown on Fig.5.
CUTTING BLADE
A variety of metal cutting blades are available to satisfy different cutting con-
ditions. It is especially important to use only the correct blade(s) approved for
each model brushcutter. Also, it is especially important to install the blade for
LEFT- HAND rotation (as viewed from the operator's position), and to cor-
rectly position all blade holding parts (see sketch).
— US-4 —
Stabilizer
Blade nut
Washer
Cutting Blade
Boss
Adapter
Gear case
Holding
Tool
(6mm Pin)
Left hand
thread
M6 x 30 Screw (2)
Gearcase
Debris Shield
Shield extension
Square nut
String Cut off Blade
M5 x 20 Screw
Debris Shield
Fig.1
Guide
Shield extension Hook
Fig.2
Fig.3
Fig.4
Hook
Fig.5
