― GB-6 ―
Assembly

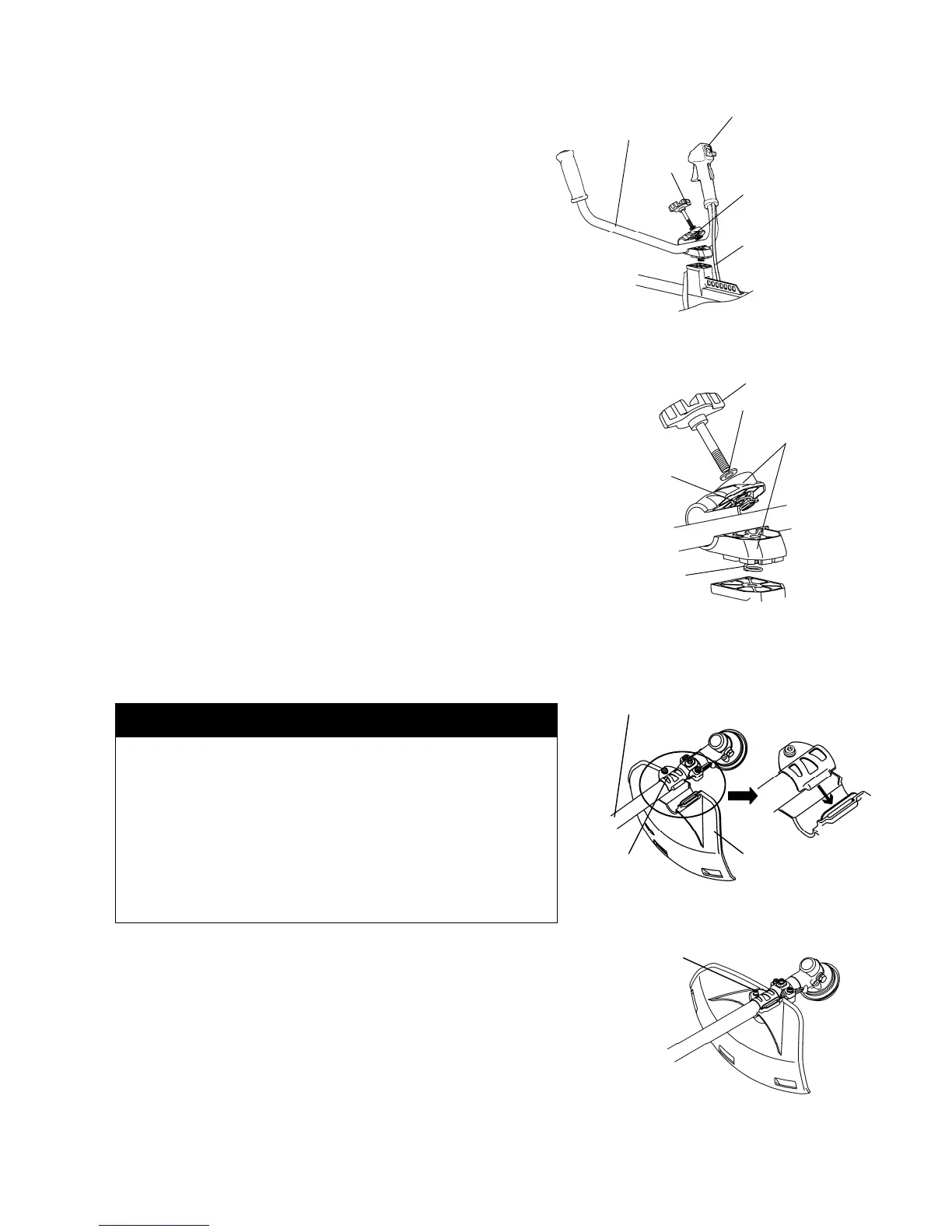

Horn Handle Installation
IMPORTANT: Be careful not to damage the throttle
cable and stop switch wires when you remove the
horn handles from the carton.
1. Loosen the knob on the top of the clamp bracket.
2. Insert the horn handle into the clamp bracket, as shown
on Fig. 1 Note that the horn handle with the throttle
trigger and stop switch goes on the right-hand side of
the Brushcutter/ Grass Trimmer.
3. And the other parts are assembled as shown on fig.2.
4. Adjust the horn handle to the desired position, then
tighten the knob. And you can offset the handle from the
center, about 20 mm. But never clamp the bent section
of the handle.
Installing Guard
Blade Guard
Attach the blade guard to the Plate and the Shaft assembly
as shown on Fig. 1 and 2.
 WARNING
POTENTIAL HAZARD
・Foreign objects can be thrown by Brushcutter/
Grass Trimmer.
WHAT CAN HAPPEN
・Contact with thrown objects can cause personal injury.
HOW TO AVOID THE HAZARD
・Never operate the Brushcutter/ Grass Trimmer without
the guard in place.
Blade Guard
Plate
Shaft assembly
Fig.1
Tighten
Fig.2
Knob
Washer
Clamp Bracket
Spring
(Smaller)
Spring
(Larger)
Fig.2
Throttle Trigger and Stop Switch
Stop Switch Wires
and Throttle Cable
Horn Handle
Clamp Bracke
t
Fig.1
Knob
