Installation
MZ034
English
3
127
3 INSTALLATION
3.1 Installing on the Frame
The fork is supplied with an “A-Head Set” steer
tube to be cut according to the frame size the
fork is being installed on.
Installing the fork on the bicycle frame is a
delicate and critical operation, and should only
be performed by skilled, trained personnel.
WARNING!
Suspension system installation requires
specialized knowledge, tools and
experience. General mechanical aptitude
may not be sufficient to properly install your
suspension system. Please have your
suspension system installed only by an
authorized Marzocchi Suspension Center.
Improper installation can result in failure of
your Marzocchi Suspension System, an
accident, personal injury, or death.
The steer tube must be press fit into the crown.
Replacement of the steer tube requires the use
of specialized tools, so it should only be
performed at one of our authorized service
centers.
WARNING!
On all dual crown MY 2006 BOMBER models
the lower crown is clamped to the
stanchions using bolts. In this case, please
be aware of the following precautions during
installation:
• In case of oversized diameter areas on the
stanchions, the crowns clamping can only be
done in the shaded area shown in Picture
2A.
• In case of reference notches on the
stanchions, the lower part of the lower crown
must be positioned over the notch.
• On the Monster forks, the distance between
the lower part of the lower crown and the dust
seal, when the fork is at travel end, must be at
least 4 mm.
• On the dual crown forks the maximum length
of the steer tube between the two crowns (see
Picture 2B) must be smaller than the values
(H) shown in Table 3.

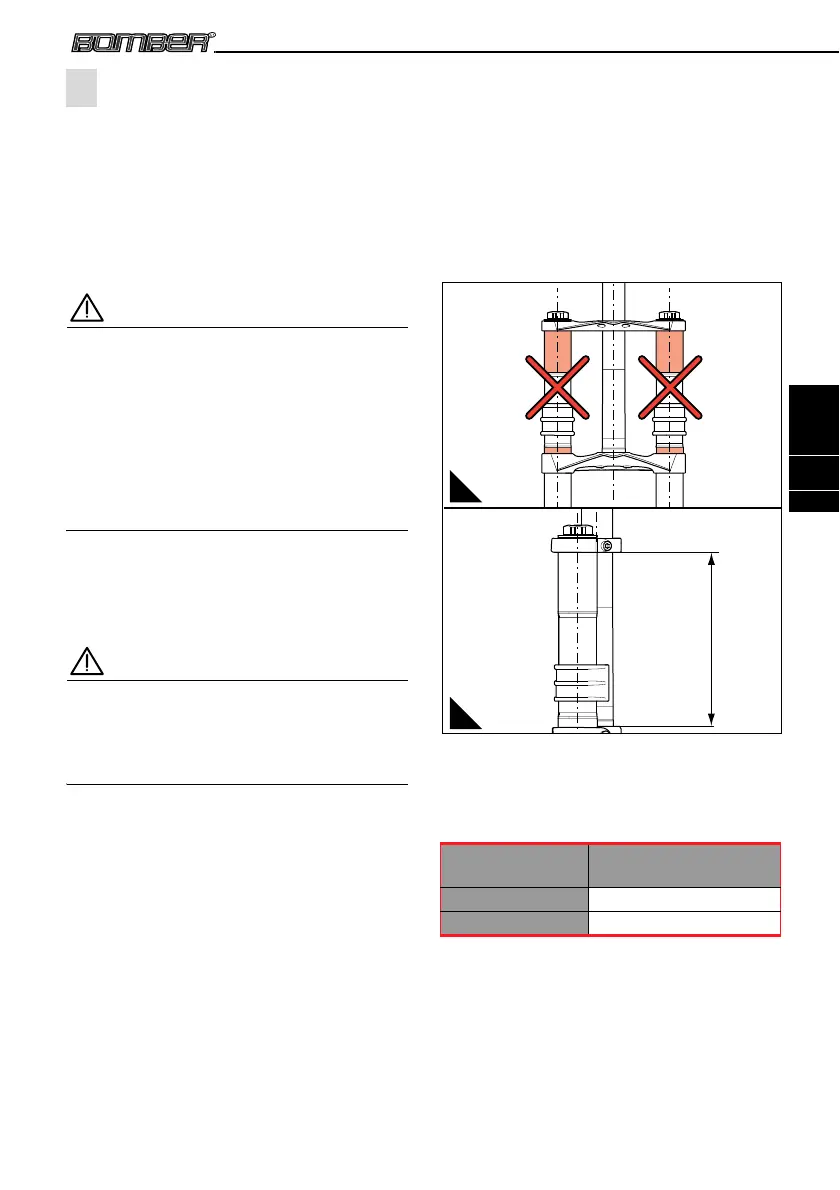

Picture 2 - Dual crown forks installation on the frame:
(2A) Crowns fastening, (2B) Steer tube
maximum length between crowns
Table 3 - Steer tube maximum length between crowns
Model
Maximum length
between crowns (H)
Monster 190 mm
888 158 mm
A
B
H
3
