3.4.2 Wheel Installation On ø 32 mm
Forks With A ø 20 mm Through-
Hole Axle
For optimum fork performance, please follow the
instructions below when installing the wheel:
• Place the wheel in between each fork.
• Align the center of the wheel with each wheel
axle clamp (see 5A of Picture 5).
• Insert the axle through the wheel axle clamp
of the right fork, through the wheel, and then
through the wheel axle clamp of the left fork
(see 5A of Picture 5).
• Tighten the axle to the required torque (15±1
Nm) using a 6mm Allen key to the caps of the
axle (see 5B of Picture 5).
• Check for the proper fork-wheel alignment. To
do this, begin by fully compressing the fork a
few times. The wheel should not make
contact with, or come close to any portion of
the fork. Then lift the front of the bicycle and
spin the wheel a few times to verify the
correct alignment with the disk brake. The
wheel should not wobble from side to side or
up and down. Check the owner’s manual of
the brake system for the proper
specifications.
• Tighten the screw positioned on each wheel
axle clamp to the required torque (6±1 Nm)
(10±1 Nm for D-Street 24”) using a 4mm (5
mm for D-Street 24”) Allen key (see 5C of
Picture 5).

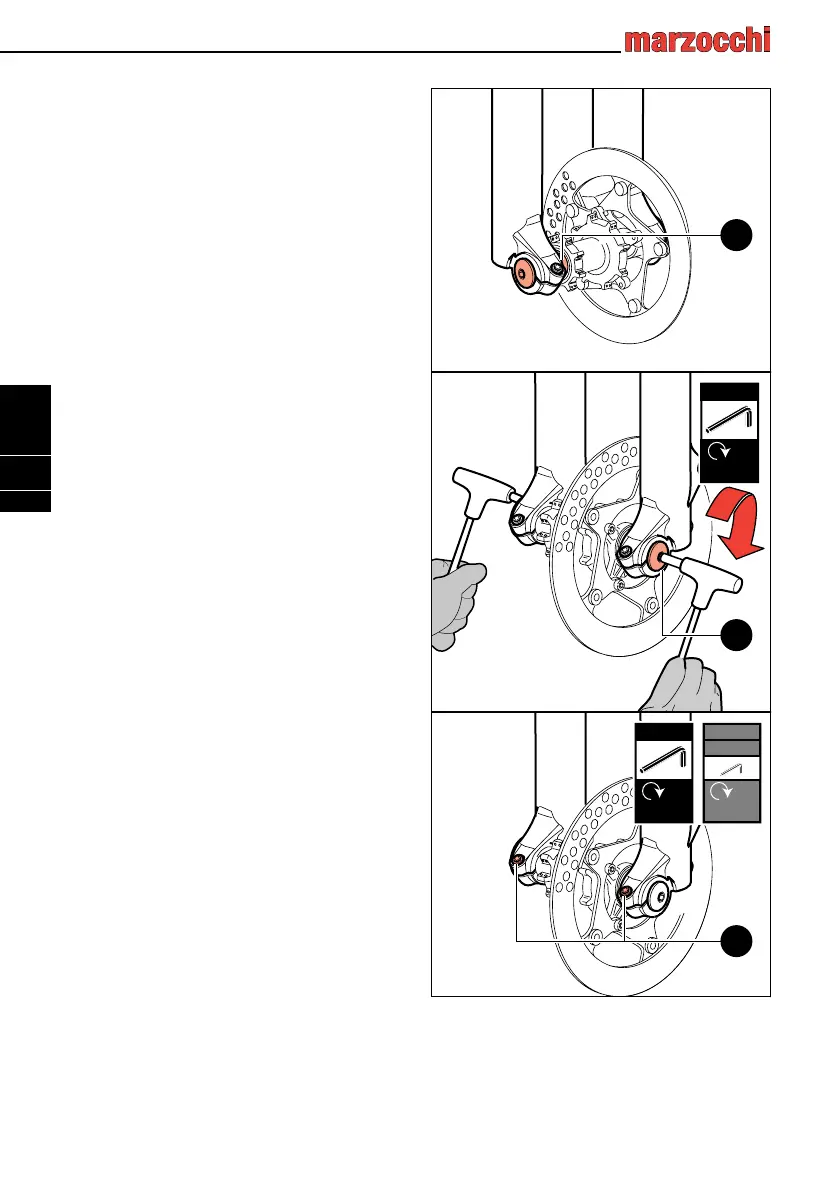

Picture 5 - Wheel installation on a ø 32 mm forks with
a ø 20 mm through-hole axle
6 mm
15±1 Nm
5A
5C
5B
4 mm
6±1 Nm
5 mm
10±1 Nm
D-Street 24"
