3.2 Installing the Brake System
Installing the brake system is a delicate and
critical operation that must be carried out by
specialized personnel.
WARNING!
Brake system installation requires
specialized knowledge, tools and
experience. General mechanical aptitude
may not be sufficient to properly install your
brake system. Please have your brake
system installed only by an authorized
Marzocchi Service Center.
Improper installation of a disk brake system
can overstress the caliper mountings, which
may cause the caliper mountings to break,
resulting in loss of control of the bicycle, an
accident, personal injury, or death.
Be sure that the brake system installation is
also performed in strict compliance with the
instructions provided by the brake system
manufacturer.
Use only brake systems that comply with the
forks specifications, taking into consideration the
contents of the summarizing tables contained in
this manual..

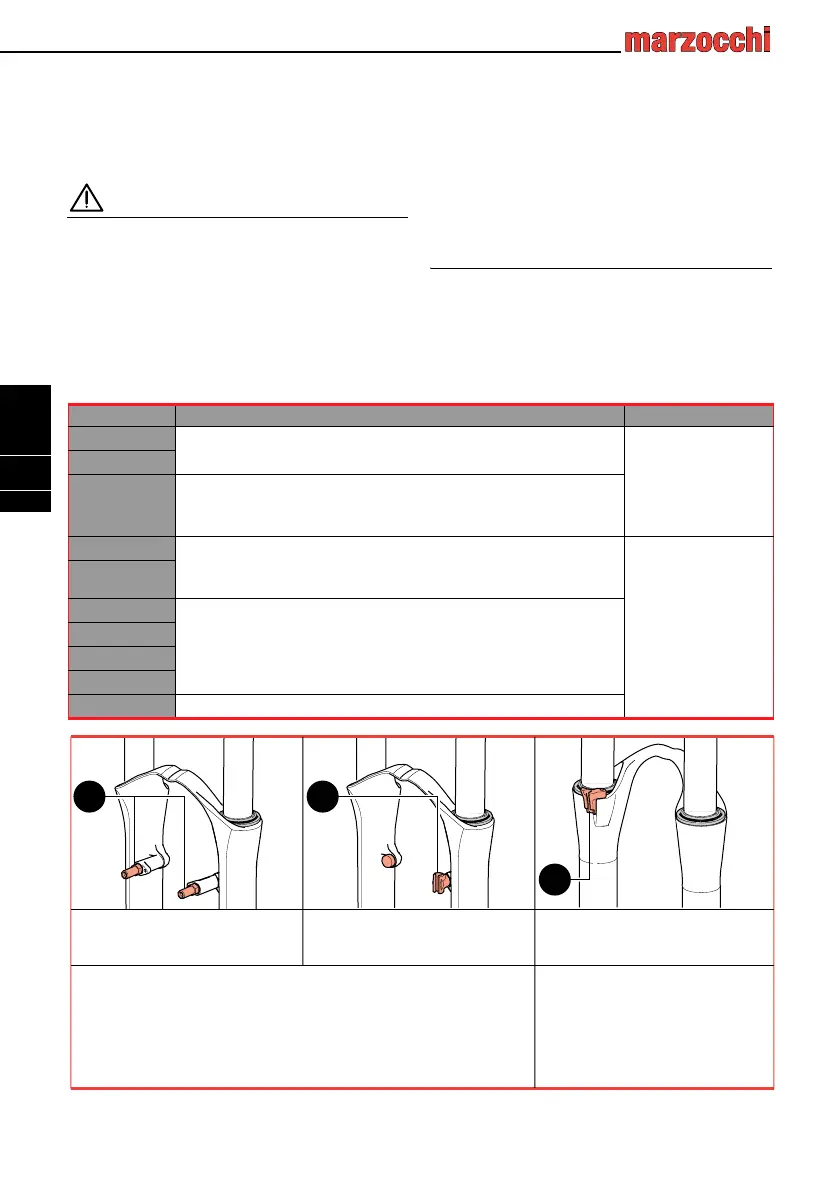

Table 4 - Brake system settings
Picture 3 - Braking system settings
Fork Max disk dimension and fastening system V-Brake setting
Marathon
Post Mount 6”
Removable setting
MX
D-Street 24”
XC INTL STD 8”
(Installation of 8" disk is only possible when the specific
adapter is supplied by the brake system manufacturer)
All Mountain
Post Mount 6"
(Installation of 8" disk is only possible when the specific
adapter is supplied by the brake system manufacturer)
No
66
Z1
XC INTL STD 6”
(Installation of 8" disk is only possible when the specific
adapter is supplied by the brake system manufacturer)
Dirt Jumper
888
Junior T
Monster Post Mount 8”
All Mountain
66
Z1
Dirt Jumper
888
Junior T
Brake disk system sheath
supports setting
V-Brake system
removable setting
Marathon
MX
Brake disk system sheath
supports setting
D- Street 24"
D- Street 24"
B
C
A
