MX Pro SL

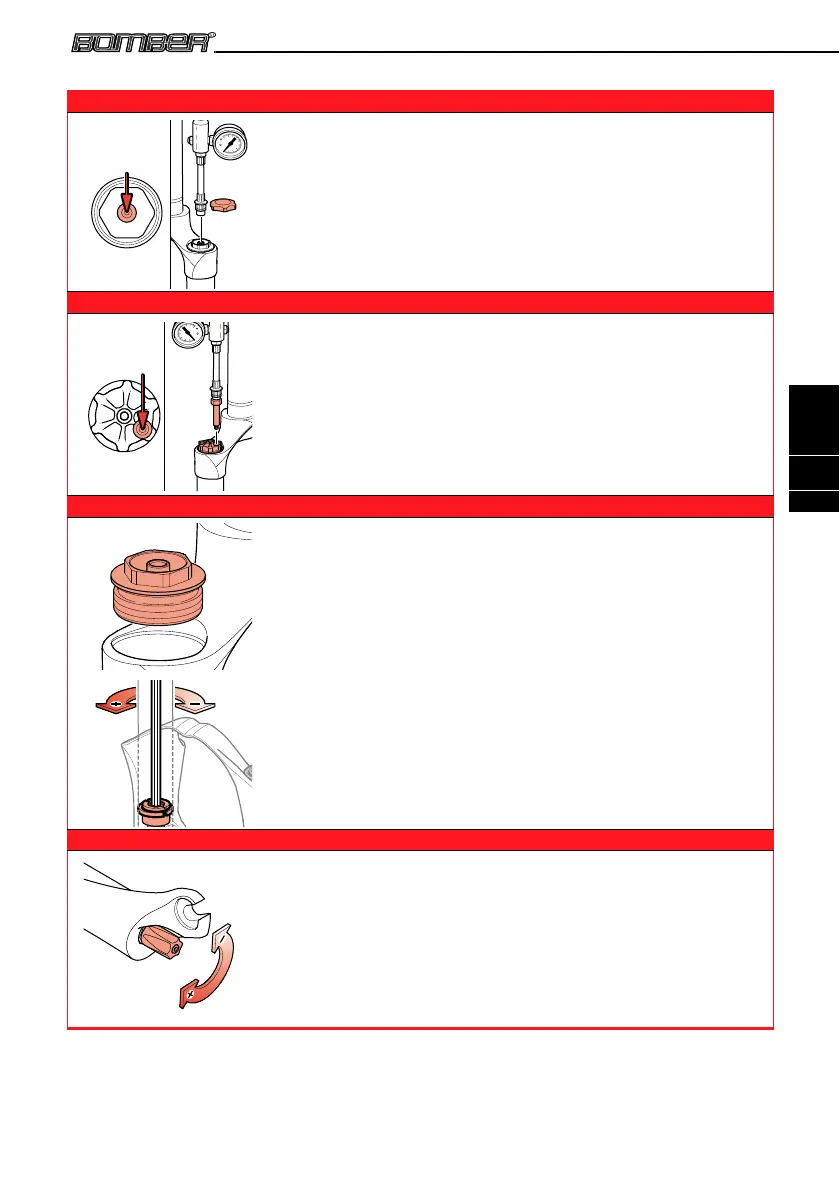

Positive air - Left leg
Remove the protection cap.
Tighten the pump on the valve and inflate till reaching the pressure you
wish.
Refit the protection cap
MX Pro SL
Positive air – TST cartridge - Right leg
Remove the rubber protection cap marked with “AIR” and turn the TST
adjuster till uncovering the air valve.
Tighten the pump on the valve and inflate till reaching the pressure you
wish.
Refit the rubber protection cap and re-adjust with the TST adjuster
MX Comp
Rebound adjustment by internal adjuster - Right leg
Using a small pin extractor eliminate any pressure from the right leg.
Unscrew and remove the protection cap with a 21mm cap key.
Insert the hexagonal bar supplied into the stanchion being very careful
to center the notch of the adjuster.
By turning the adjuster counter-clockwise, you increase the hydraulic
damping making the fork slower during the rebound phase.
By turning the adjuster clockwise, you reduce the hydraulic damping
making the fork more reactive during the rebound phase.
After adjustment, refit and tighten the protection cap to the
recommended tightening torque.
Re-inflate to the recommended air pressure value
MX Pro Race MX Pro SL MX Pro
Rebound adjustment by external adjuster - Right leg
By turning the adjuster clockwise, you increase the hydraulic damping
making the fork slower during the rebound phase.
By turning the adjuster counter-clockwise, you reduce the hydraulic
damping making the fork more reactive during the rebound phase
AIR
AIR
