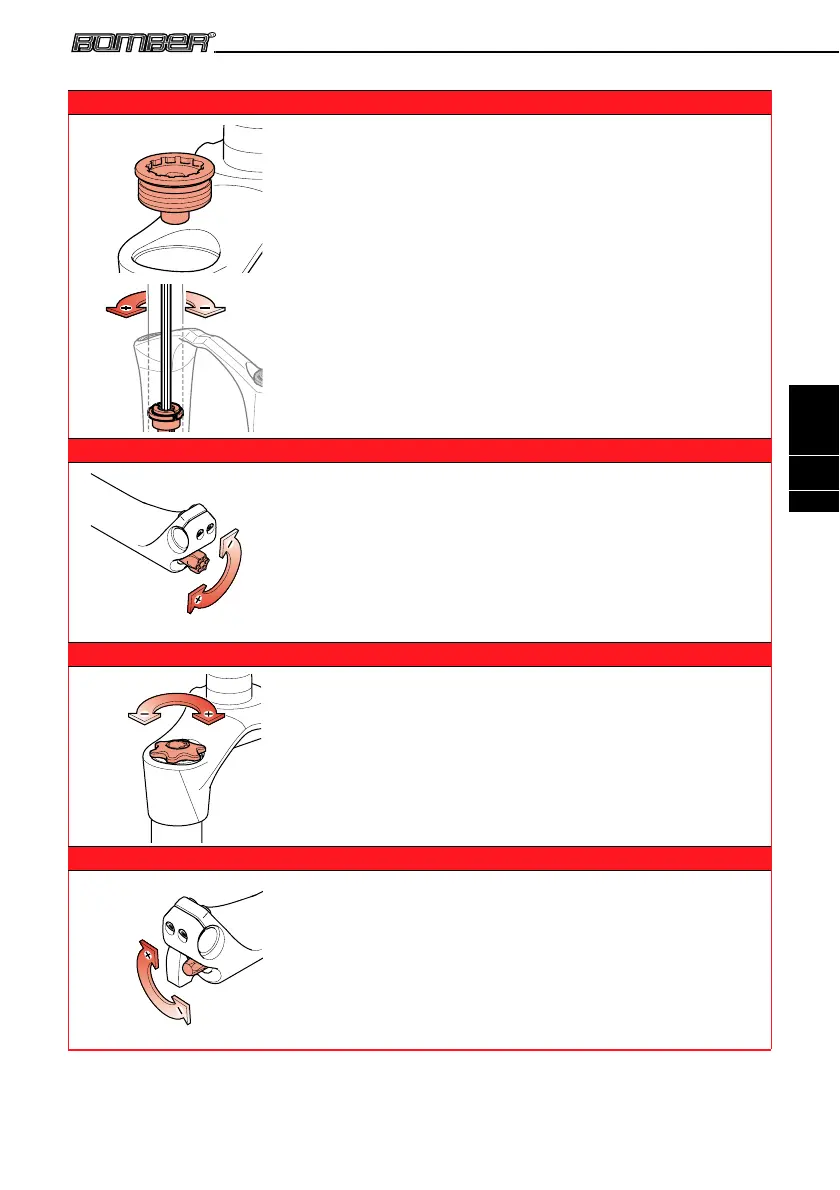

Rebound adjustment by internal adjuster - Right leg
Using a small pin extractor eliminate any pressure from the right
leg.
Unscrew and remove the protection cap with lock ring tool for
Shimano freewheel sprockets.
Insert a 3mm Allen key into the stanchion being very careful to
center the notch of the adjuster.
By turning the adjuster counter-clockwise, you increase the
hydraulic damping making the fork slower during the rebound
phase.
By turning the adjuster clockwise, you reduce the hydraulic
damping making the fork more reactive during the rebound phase.
After adjustment, refit and tighten the protection cap to the
recommended tightening torque.
Re-inflate to the recommended air pressure value.
66 VF2
Rebound adjustment by external adjuster - Right leg
By turning the adjuster clockwise, you increase the hydraulic
damping making the fork slower during the rebound phase.
By turning the adjuster counter-clockwise, you reduce the hydraulic
damping making the fork more reactive during the rebound phase
66 SL 66 RC2X 66 Light
Rebound adjustment by external adjuster – RC2 cartridge -
Right leg
By turning the adjuster clockwise, you increase the hydraulic
damping making the fork slower during the rebound phase.
By turning the adjuster counter-clockwise, you reduce the hydraulic
damping making the fork more reactive during the rebound phase.
66 VF2 66 VF2 LT
Compression adjustment by external adjuster - Left leg
(Not present in the version with + ETA option)
By turning the adjuster clockwise, you increase the hydraulic
damping during the compression phase.
By turning the adjuster counter-clockwise, you reduce the hydraulic
damping during the compression phase
