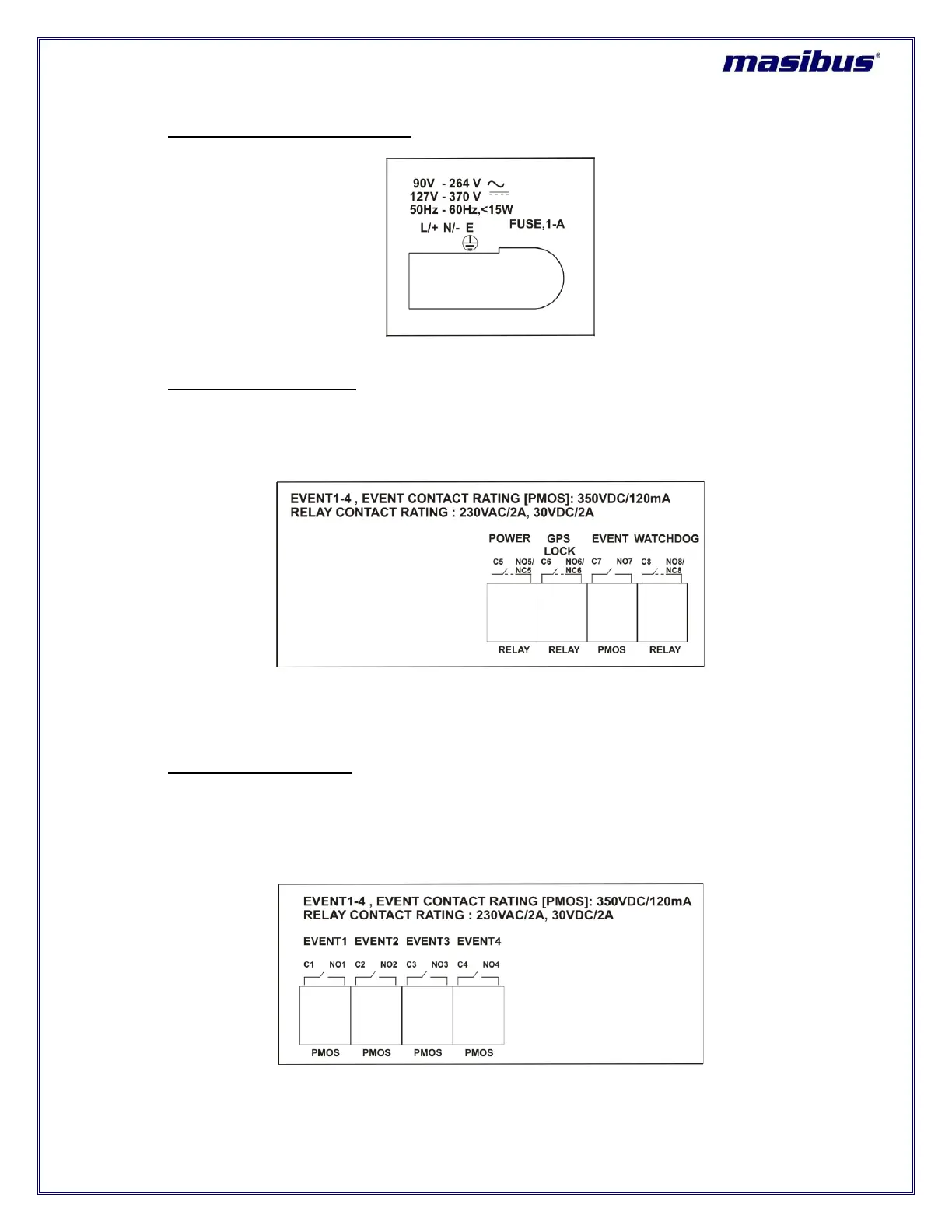

1. Power Input and Fuse Connector:
Figure 5-3 Power supply terminal
2. Relay and Event contacts:
masTER T-Sync Model MTS200 provide three relay outputs for Power, Watchdog, GPS LOST
alarm and a PMOS pulse output through 8 pin female connector. Factory set Relay contact
provided on rear panel connector are C-NO terminals.
Figure 5-4 Relay and Standard Event terminal
Please refer Relay output section12.1 for various configurations.
3. Additional Event outputs:
masTER T-Sync Model MTS200 has the capability to provide multiple event outputs in addition to
standard PPM/PPH event output. The single event output provides pulse at configured event
interval with pre-configured pulse width. This pulse outputs are OptoMOS output (optically
coupled solid state Relay output) provided through 8 pin female connector.
Figure 5-5 Additional Events terminal
