Masmio W1 Appendix
Masimo Corporation 16 www.masimo.com
Test Frequency
(MHz)
Band (a)
(MHz)
Service (a) Modulation (b) Maximum Power
(W)
Distance
(m)
Immunity Test Level
(V/m)
930
1720
1700-1990 GSM 1800; CDMA 1900; GSM 1900; DECT; LTE Band 1, 3. 4. 35: UMTS
Pulse modulation (b)
217 Hz
2 0.3 28
1845
1970
2450 2400-2570 Bluetooth, WLAN, 802.11 b/g/n, RFID 2450, LTE Band 7
Pulse modulation (b)
217 Hz
2 0.3 28
5240
5100-5800 WLAN 802.11 a/n
Pulse modulation (b)
217 Hz
0.2 0.3 9
5500
5785
(a) For some services, only the uplink frequencies are included.
(b) The carrier shall be modulated use a 50% duty cycle square wave signal.
(c) As an alternative to FM modulation, 50% pulse modulation at 18 Hz may be used because while it does not represent actual modulation, it would be worst case.

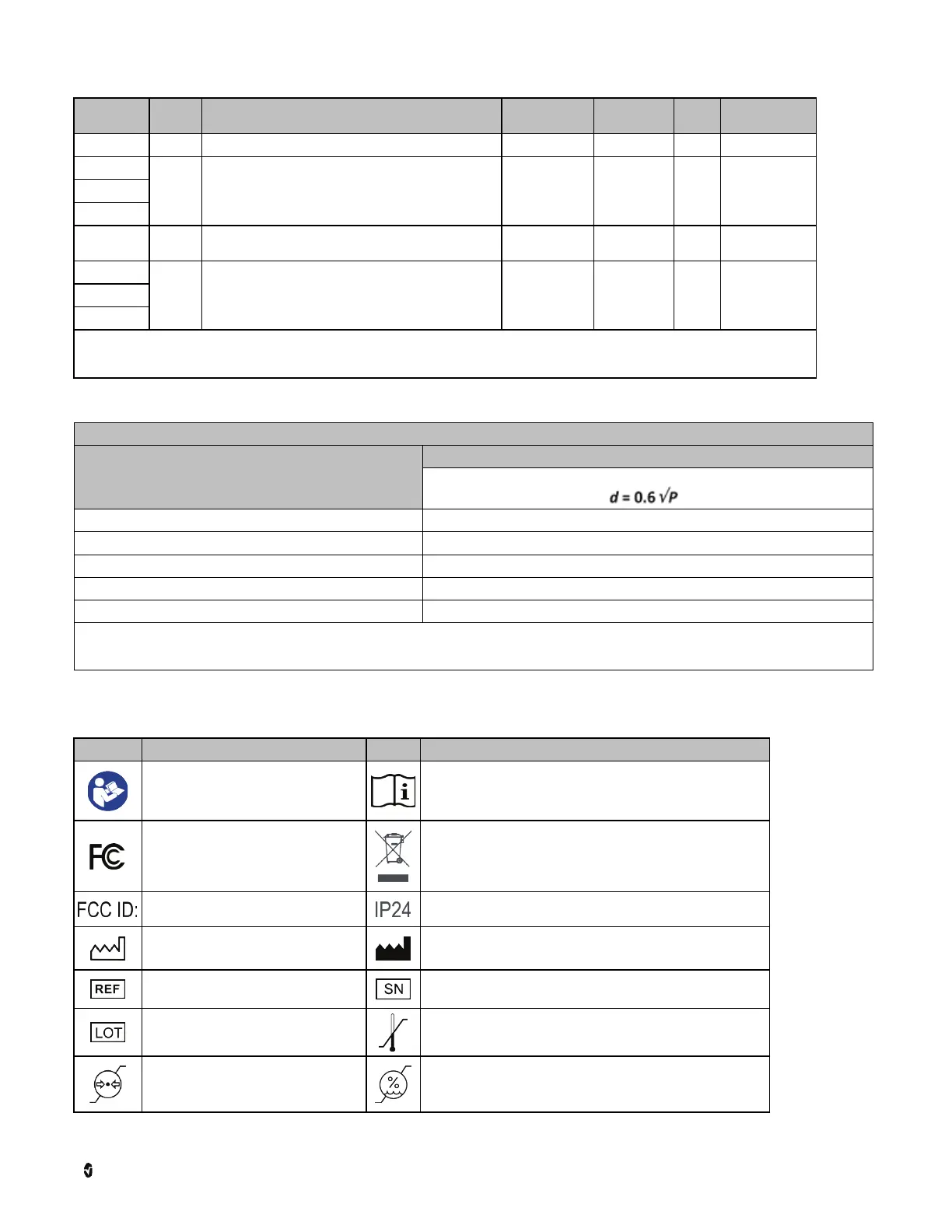

Recommended Separation Distances
Recommended separation distances between portable and mobile RF communications equipment and the Masimo W1.
Rated maximum output power of transmitter [W] Separation distance according to frequency of transmitter [m]
80 MHz to 2.7 GHz
0.01 0.06
0.1 0.19
1 0.6
10 1.9
100 6
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the
transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
Note: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Symbols
The following symbols may be found on the Masimo W1, or packaging and are defined below.
Symbols Definition Symbols Definition
Follow Instructions for use
Consult instructions for use
Federal Communications Commission (FCC) licensing
Separate collection for electrical and electronic equipment (WEEE)
Identifies unit has been registered as a radio device
Protected from objects greater than 12 millimeters and water spray from any direction.
Date of Manufacture
YYYY-MM-DD
Manufacturer
Catalog number (model number)
Serial number
Lot Code
Storage temperature range
Atmospheric pressure limitation
Storage humidity limitation
