INSTALLATION
FLUEING ARRANGEMENTS - HORIZONTAL TERMINATIONS
MASPORT DIRECT FLUE SYSTEM
(LPG & NG)

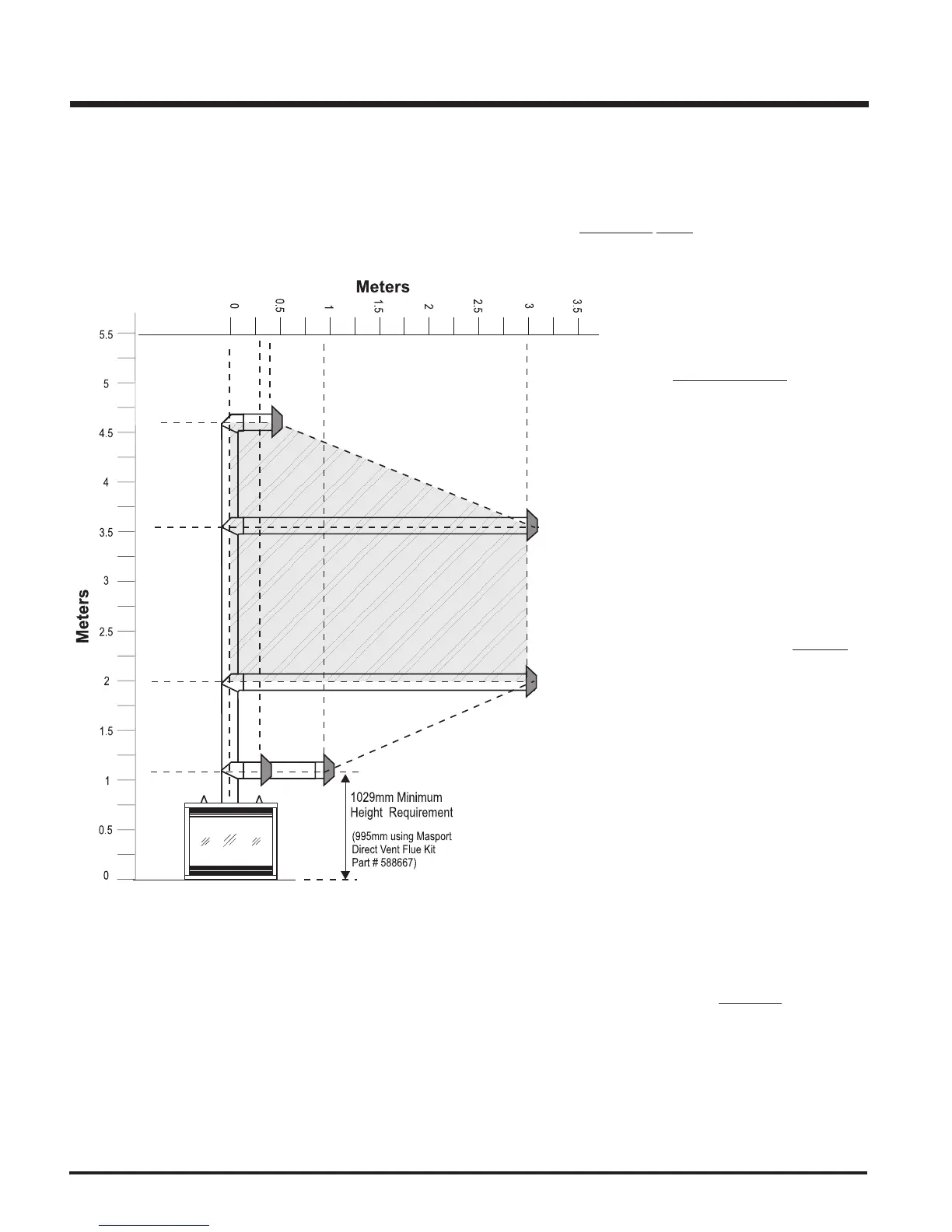

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90
o
elbow (two 45
o
elbows equal one 90
o
elbow).
Masport Flex Vent
4" (102mm) inner diameter
6-7/8" (175mm) outer diameter
• Maintain clearances to combustibles as listed on pages 6 to 8.
• Horizontal flue must be supported every 3 feet (0.9 meters).
NOTE: If you are installing the P36 into a Masport Mantel Kit, use the minimum horizontal flue height (centre-line of
40-1/2"(1029mm)). Remember to include the mantel base in your calculations and to maintain the
3" (76mm) clearance to
the underside of the mantel top.
A flue guard should be used when-
ever the termination is lower than the
specified minimum or as per local
codes.
Note: Masport Co Axial Flue System
(Flex) is only approved for hor-
izontal terminations.
Total flue length
CANNOT be
longer then 3 meters.
