FLUEING ARRANGEMENTS - VERTICAL TERMINATIONS
The P36 is approved for a 23 ft. (7.0m) vertical, with a maximum 12 ft. (3.7m) horizontal offset using
two 90
o
elbows (two 45
o
elbows equal one 90
o
elbow), as per diagram 1.
The P36 is approved for a 37 ft. (11.3m) straight vertical, including a 20" (0.5m) horizontal offset using
two 90
o
elbow (two 45
o
elbows equal one 90
o
elbow), as per diagram 2.
• Flue must be supported at offsets
• Maintain clearances to combustibles.
Note: Masport Co Axial Flue System (Flex) is only approved for horizontal terminations.

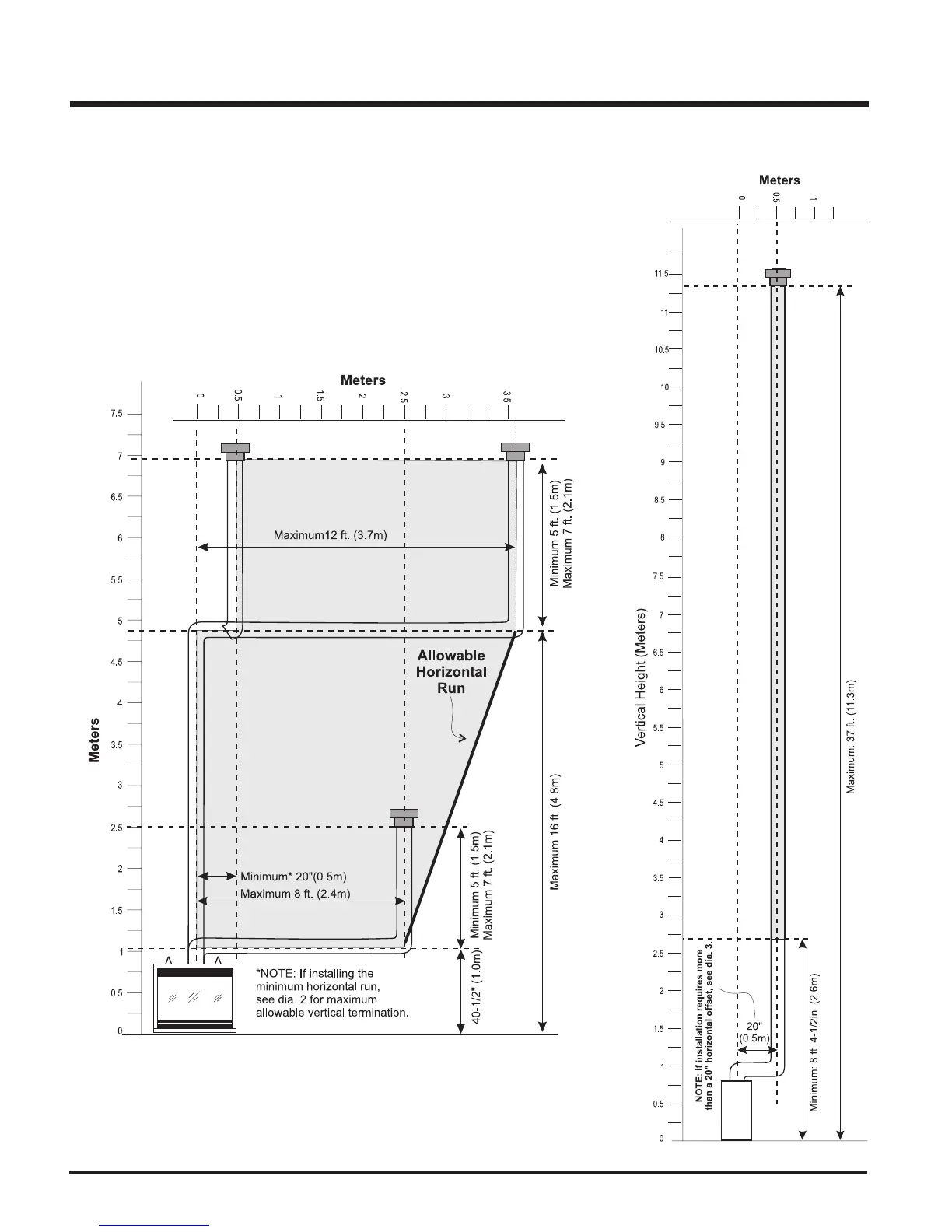

Diagram 1
Diagram 2
