Masport PG36-3 Gas Inbuilt
16
The PG36 is approved for a 37 ft. (11.3m) straight vertical, with Simpson
Dura-Vent Co Axial Flue GS flue systems for LPG and NG, as per the
diagram 3.
The shaded area in the diagram 3 shows all allowable combinations of straight
vertical and offset to vertical terminations with Simpson Dura-Vent Co
Axial Flue GS flue systems for LPG and NG.
Maximum two 45
o
elbows
allowed.
• Flue must be supported at offsets
• Firestops are required at each floor level and whenever passing
through a wall.
• Maintain clearances to combustibles as listed on pages 6 to 8.

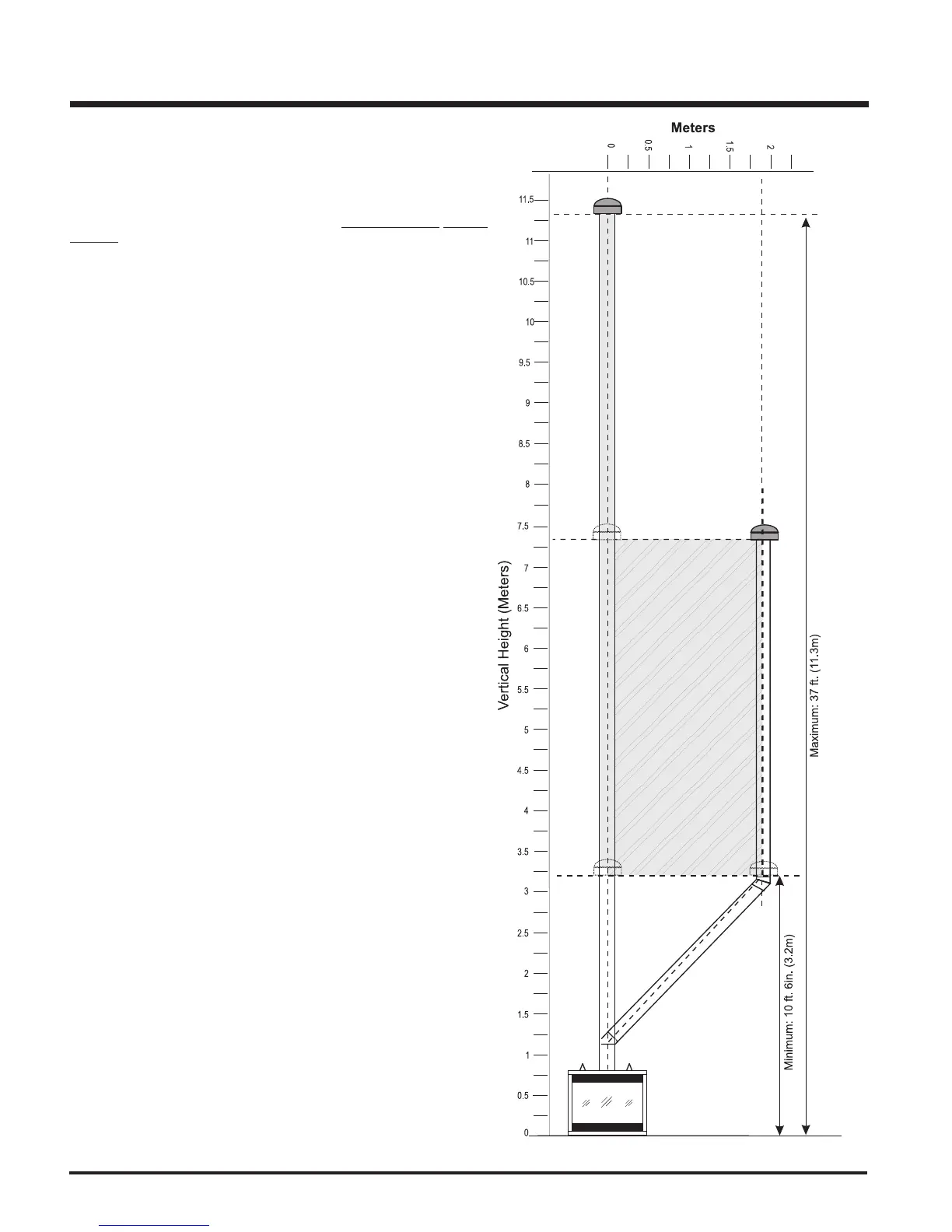

Diagram 3
